Hadco FlexScape LED Landscape Lights
Breaking new ground with optimal versatility

Hadco FlexScape LED BL9 Low-Voltage LED Accent Light
Breaking new ground with optimal versatility

The LED Accent version brings landscape lighting to the next level. Designed for optimal LED performance, it provides the lighting professional with countless lowvoltage options.

The luminaire's rugged die-cast aluminum housing features low-energy outdoor lighting. Convenient beam adjustability makes for easy on-site lighting effect changes. The lockable aiming is well- suited for accenting objects, textures, walls, trees, etc. This all-weather luminaire comes with 100% molded silicone gaskets.

Specifications:

Beam Adjustability: Lens zooms from narrow (15°) to medium (30°) beam, accessible after easy removal of twist-off shroud. Interchangeable flood (60°) lens included.
Switchable Light Levels: Easy-access integral switch for 4 preset light outputs: based on 3K, MED beam, 130, 280, 500, 670 lumens. Simply adjust using side knob and Phillipshead screwdriver.
Precise Aiming: Adjustable knuckle arm enables range of 150°. Vibration locking teeth secured by black SS screw.
Driver: 12 V Class 2 driver housed in injection-molded case with encapsulated electronics.
IP66 Rating: Dust tight and sealed against direct jets of water.
Wiring: Pre-wired with 3-ft. pigtail for easy hookup to low-voltage supply cable.
Installation Convenience: Ships with S7 mounting stake.

Applications:

Spot lighting: Focuses an intense beam of light on a particular subject. Showcases focal points.
Moon lighting (large trees): Simulates the light of the full moon filtering through the foliage of a tree. Projects shadows on the ground and lights what is under the tree (paths, sidewalks, flowers, etc.).
Tree lighting (up and down): View4.56in(116mm) Combines simulated full moon light filtering through the tree and uplighting from within to illuminate the canopy. Creates a softer light on the trunk and keeps all fixtures off the ground.
Up lighting: An unnatural, therefore dramatic way of lighting trees and architectural structures. Highlights details on structures and can be used to repeat patterns to create interest.
Mirror lighting: Lights a background scene to reflect it into a nearby body of water.
Silhouetting: Displays a dark image of the subject by lighting a vertical surface behind the subject. Effective technique to show shape, but does not show color or texture of the subject. Achieves wall washing at the same time.
Shadowing: Creates a shadow on a vertical surface by placing the fixture in front of the subject.
Grazing: Enhances texture of a surface by positioning a fixture close to the surface and aiming the beam upward or downward.
Fountain lighting: Creates dramatic effects of water movement in fountains and water features while enhancing the structure of the fountain.
Sign lighting: Identifies signage after dark: entrances to sub-divisions, country clubs, office complexes, and small shopping centers.

Download Hadco FlexScape LED BL9 Brochure >
(PDF opens in new window.)

Features

• Efficacy1: 56 lm /w to 88 lm /w
• CCT: 3000 K and 4000 K
• CRI: 70 min.
• Lumens1: 112 lm to 710 lm
• Wattage: 12 W (max)
• Voltage: 12 V typical (10.5 V-15 V)
• 50,000 hour rated life (L70)
• 5 - year limited warranty 2

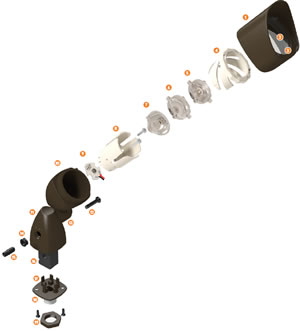

1. Shroud: Tool-less, twist-off /on attachment to housing.
2. Exterior Lens: Environmental barrier (sealing).
3. Lens Gasket: Molded gasket slips onto lens without tools or RTV.
4. Zoom Path: Tool-lessly adjustable/ removable path for Zoom Lens and Flood Lens, high brightness white for maximum light output.

5. Flood Lens: 3 Interchangeable lens provides 60° flood output.
6. Zoom Lens: 3 Interchangeable lens provides 15° to 35° beam depending on position.
7. TIR: Snap-in optic shapes beam for zoom and flood lenses.
8. Zoom Support: Support for TIR and Zoom Path, locates optics precisely relative to LED, high brightness white for maximum light output.

9. LED Board: Custom PCB with Philips Lumileds Luxeon M, 3000K/4000K.
10. Fixture Housing: Tool-less attachment to shroud, teeth to lock aiming angle
11. Driver Housing: Separate housing for driver helps with thermal management and creates continuity with housing by repeating similar shape.
12. Aiming Screw: Phillips-head screw, loosen slightly to adjust aiming.
13. Knuckle Grommet: Molded gasket presses into knuckle and provides environmental barrier and sealing between optical and driver compartments.
14. Switch Grommet: Molded gasket provides seal around dimming switch.
15. Switch Knob: Switch knob provides simple customer access to dimming switch for easy adjustment between 4 preset light levels.
16. Driver: 12 VAC Class 2 driver with integral switch for multiple light levels.

17. Driver Housing: Gasket Molded gasket provides seal for driver housing. (also acts as strain-relief)
18. Driver Base: Positions driver inside driver housing and provides durable mounting for luminaire.
19. Locking Nut: Metal nut allows orientation of Accent to be locked.

1. Values depend on luminaire options.
2. Based on standard 5-year limited warranty. See http://www.lightingproducts.philips.com/Documents/webdb2/Hadco/pdf/Hadco-FlexScape-LED-Warranty.pdf for complete warranty information.
3. Select from either a Zoom or Flood lens optics for customized lighting effects.

Hadco FlexScape LED IL9 Low-Voltage LED Inground Landscape Light

The LED Inground model opens new horizons for low-voltage landscape lighting. It is designed for optimal LED performance and superior flexibility.

The luminaire creates visual interest for, pathways, walls, columns and foliage. Its rugged housing installs directly into the soil. In addition to low-energy outdoor lighting, it features convenient on site beam adjustability. This all-weather luminaire comes with 100% molded silicone gaskets.

Specifications:

Beam Adjustability: Lens zooms from narrow (15°) to medium (30°) beam, accessible after easy removal of three screws on lens ring. Interchangeable flood (60°) lens included.
Switchable Light Levels: Integral switch for 4 preset light outputs: 130, 270, 480, 640 lumens based on 3K, MED lens. Adjust using Phillips-head screwdriver after removal of lens ring, optical assembly and heatsink.
Limited Aiming: Heatsink doubles as an aiming apparatus, providing a range of 30° (15° from center both ways). Aiming can be adjusted after easy removal of three screws on lens ring.
Driver: 12V Class 2 driver housed in injection-molded case with encapsulated electronics.
IP67 Rating: Dust-tight and sealed against direct jets of water and against continuous immersion up to a depth of 1 meter (3.28 feet).
Wiring: Pre-wired with 3-ft. pigtail and quick connector for easy hookup to low-voltage supply cable.

Features

• Efficacy1: 56 lm /w to 88 lm /w
• CCT: 3000 K and 4000 K
• CRI: 70 min.
• Lumens1: 111 lm to 68 lm
• Wattage: 12 W (max)
• Voltage: 12 V typical (10.5 V-15 V)
• 50,000 hour rated life (L70)
• 5 - year limited warranty 2

Applications:

Spot lighting: Focuses an intense beam of light on a particular subject. Showcases focal points.
Mirror lighting: Lights a background scene to reflect it into a nearby body of water.
Grazing: Enhances texture of a surface by positioning a fixture close to the surface and aiming the beam upward or downward.
Sign lighting: Identifies signage after dark: entrances to sub-divisions, country clubs, office complexes, and small shopping centers.
Up lighting: An unnatural, therefore dramatic way of lighting trees and architectural structures. Highlights details on structures and can be used to repeat patterns to create interest.

Download Hadco FlexScape LED IL9 Brochure >
(PDF opens in new window.)

1. Lens Ring: Lens ring secures with three (3) Phillips-head screws. Clamps lens and gasket into place, flush for ADA compliance.
2. Molded Lens: Environmental barrier, sealing, flush for ADA compliance, slight curvature to shed water and debris.
3. Lens Gasket: Molded gasket slips onto lens without tools or RTV.

4. Zoom Path: Tool-lessly adjustable/ removable path for Zoom Lens and Flood Lens, high brightness white for maximum light output.

5. Flood Lens: 3 Interchangeable lens provides 60° flood output.
6. Zoom Lens: 3 Interchangeable lens provides 15° to 35° beam depending on position.
7. TIR: Snap-in optic shapes beam for zoom and flood lenses.
8. Zoom Support: Support for TIR and Zoom Path, locates optics precisely relative to LED, high brightness white for maximum light output.

9. LED Board: Custom PCB with Philips Lumileds Luxeon M, 3000K/4000K.

10. Heatsink: Spherical shape enables aiming while transferring heat to exterior housing for better thermal performance.
11. Fixture Housing: Housing includes moldedin metal fins for thermal performance, molded-in brass inserts for repeatable opening/ closing. External fins aid thermal management and discourage "heaving" and twisting after installation. Incoming wires factory sealed including antiwicking feature.
