Hadco BL16 Die-cast Brass Low Voltage Micro Bullet BulLyte

Die-cast Brass
Shroud is included.
Fully rotatable shroud, gasketed die-cast brass.
N Natural Brass
OB Oiled Brass

Finish: Natural Brass (N) is as-cast and tumble polished. HADCO's Oiled Brass (OB) is chemically dipped to achieve a dark pre-aged patina finish and the appearance will vary between production runs. Finishes will continue to patina over time making each fixture unique.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
WARRANTY: Lifetime limited warranty.

Low Voltage
LAMPING: 50W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. Stainless steel retention clip affixed to socket to securely hold lamp in place. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Die-cast brass. Fully rotatable shroud, gasketed die-cast brass. Fully-adjustable swivel arm with vibration-proof locking teeth. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel. Gasketing is silicone.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 3 1/8" (80mm)
Length: 6 1/2" (165mm)

Power Consoles, Transformers & Accessories >

Hadco EL1 Low Voltage Die-cast Brass Micro BulLyte

HOUSING: Die-cast brass. Fully-adjustable brass yoke-mounted arm and brass screws. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Gasketing is silicone. Fasteners are 400 series brass.

Finish: Natural Brass (N) is as-cast and tumble polished.
OPTICAL ASSEMBLY: 30° aluminum reflector. Clear tempered glass lens.

Lamping: 10W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Lifetime limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 2 15/16" (75mm)
Depth: 2 5/8" (67mm)
Max. Weight: 1.5 lb

Finish
N Natural Brass

Mounting
S7 Mounting Stake *1

*1 Mounting stake is optional.

Power Consoles, Transformers, Stakes, Posts & Accessories >

Hadco MA3 Aluminum Bullet LED Accent Lighting

Optics: SP Spot or FL Flood
LED CCT: W Warm or C Cool

Finish: A Black or H Bronze
Shroud: L Long 45º (optional)

Features
• 120 Volt
• 6.4 total watts
• ½" NPS fitter

Housing: Precision machined aluminum from 6061-T6 material. Stainless Steel fasteners.

LED
• 35,000 hours life (at 30ºC ambient temperature and 70% lumen maintenance).
• Color temp (CCT): 3,000K or 4,000K

Finish: Thermoset powder coated in; black or bronze.

Optics: Two beam spreads (spot - 20º, flood - 40º).

Wiring: Pre-wired with high temperature #18 wire.
Input voltage range (VAC) 120-277.

IP rating: IP65 Completely dust-tight and sealed to withstand low pressure jets of water from any direction.

ETL and cETL listed.

Hadco MA5 Aluminum Bullet

Housing: Precision machined aluminum from 6061-T6 material. Stainless Steel fasteners.
Shroud: Optional Long 45º

Finish: Thermoset powder coated in; black or bronze.

Features
• 12 Volt
• 6.2 total watts (high power)
• 5.1 total watts (low power)
• ½" NPS fitter
• Ships with S7 mounting stake

Optics
Three beam spread:
• Spot - 23º
• Medium - 30º
• Flood - 54º

LED
• 35,000 hours life at 30ºC ambient temperature and 70% lumen maintenance.
• Color temp (CCT): 3,000K or 4,000K

Wiring: Pre-wired with a 3 ft. pigtail for easy hookup to the low voltage supply cable.

Electrical: Input voltage range (VAC): 10 - 14, regulated to 12V DC.

IP rating: IP65 Completely dusttight and sealed to withstand low pressure jets of water from any direction.

ETL and cETL listed.

Hadco MA7 Aluminum Bullet

Housing: Precision machined aluminum from 6061-T6 material. Stainless Steel fasteners.
Shroud: Optional Long 45º

Finish: Thermoset powder coated in; black or bronze.

Features
• 12 Volt
• 1.6 total watts
• ½" NPS fitter
• Ships with S7 mounting stake

Optics: Module features dome lens and integrated 100º beam pattern optics.

LED
• 35,000 hours life at 30ºC ambient temperature and 70% lumen maintenance.
• Color temp (CCT): 3000K or 4000K

Wiring: Pre-wired with a 3 ft. pigtail for easy hookup to the low voltage supply cable.

Electrical: Input voltage range (VAC): 10 - 14, regulated to 12V DC.

IP rating: IP65 Completely dusttight and sealed to withstand low pressure jets of water from any direction.

ETL and cETL listed.

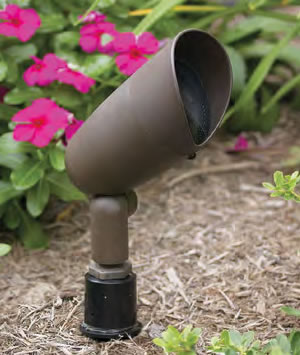

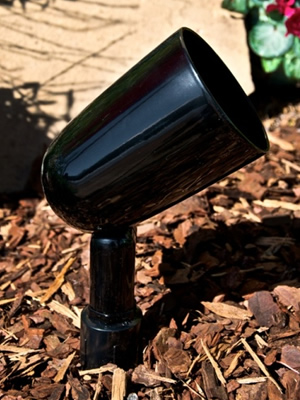

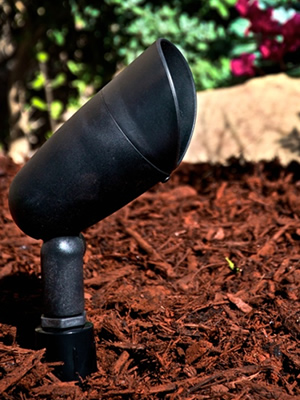

Hadco B1, BL1, BU1, BUL16 Die-cast Aluminum, Die-cast Brass or Composite Small Line Voltage or Low Voltage Bullet BulLyte with LED Options

Die-cast Aluminum
Shroud is optional.
Finish A Black
H Bronze
G Verde
Low Voltage only: Speckled Stone, Sienna

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Provided with optional shrouds only.
WARRANTY: Three-year limited warranty.

Die-cast Brass
Shroud is included.
Fully rotatable shroud, gasketed die-cast brass.
N Natural Brass
OB Oiled Brass

Finish: Natural Brass (N) is as-cast and tumble polished. HADCO's Oiled Brass (OB) is chemically dipped to achieve a dark pre-aged patina finish and the appearance will vary between production runs. Finishes will continue to patina over time making each fixture unique.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
WARRANTY: Lifetime limited warranty.

Composite
One-piece injection molded ULTEM® High Performance Polymer composite.
Fully rotatable shroud, gasketed, ULTEM® High Performance Polymer composite. Composite is textured, pressure formed, molded-in-color.

Line Voltage
LAMPING: 100W maximum PAR20/R20 medium base lamp. Incandescent lamp is not included. Lower wattage lamps are acceptable. If HID or R lamp is used, accessory shroud must also be used.
ELECTRICAL ASSEMBLY: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact. Fixture is pre-wired with 18 AWG black, white, and ground wires.

Fluorescent
BALLAST: Must order inground (IBH) or above ground (ABH) ballast housing separately.

Low Voltage
LAMPING: 50W or 75W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule. Lamp is not included.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

MR16
LAMPING: 35W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.

Composite LED
LAMPING: 4W lamp with 24° beam spread. 30,000 hours life. Color temperature (CCT): warm white (2,700K nominal). No Mercury.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
Optics: NF) Narrow Flood
CCT: (W) Warm

Die-cast Aluminum or Die-cast Brass LED
LAMPING: 7W lamp with 25° beam spread, 25,000 hours life. Color temperature (CCT): warm white (2,700K nominal).
OPTICAL ASSEMBLY: Clear tempered flat glass lens.
Optics: (NF) Narrow Flood
CCT: (W) Warm

HOUSING: Fully-adjustable swivel arm with vibration-proof locking teeth. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Gasketing is silicone. Fasteners are 300 series stainless steel.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 3 7/8" (98mm)
Composite, Die-cast Aluminum Length: 8 1/2" (216mm)
Die-cast Brass Length: 8 3/16"

Accessories
Louver (ML1) The louver is designed to be positioned between the lamp and the existing lens.
Aluminum Shroud (1) Die-cast aluminum, provided with lens and silicone O-ring. Available in Long or Short.

Power Consoles, Transformers & Accessories >

Hadco BT1 Marine Grade Die-cast Aluminum Line Voltage MR16 or LED Bullet with Step-down Transformer

Step-down transformer reduces line voltage to 12 volts.

Finish A Black
H Bronze
G Verde

MR16
LAMPING: 75W maximum MR16 bi-pin lamp. Lamp is not included. Covered MR16 lamps are recommended to protect lamp's inner capsule. Lower wattage lamps are acceptable.

LED
LAMPING: 4W lamp with 24° beam spread. 30,000 hours life. Color temperature (CCT): warm white (2,700K nominal). No Mercury. 7W lamp with 15°, 24°, or 36° beam spread. 25,000 hours life. Color temperature (CCT): cool white (4,000K nominal) or warm white (2,700K nominal). No Mercury.

HOUSING: Gasketing is silicone. Die-cast aluminum. Fully-adjustable swivel arm with vibration-proof locking teeth. Fully rotatable shroud, gasketed, cast aluminum. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting.
OPTICAL ASSEMBLY: Clear tempered glass lens.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. Fixture is pre-wired with 18 AWG black, white, and ground wires. Step-down transformer reduces line voltage to 12 volts. Transformer is potted/encapsulated and features thermal overload protection. Can be used with energy-efficient halogen lamp.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Max Width: 3 7/8" (98mm)
Max Length: 8 3/8" (213mm)

Shroud
S Short Shroud
L Long Shroud

Power Consoles, Transformers, Stakes, Posts & Accessories >

Hadco B3, BU3 Die-cast Aluminum or Composite Medium Line Voltage Bullets BulLytes with LED Options

Die-cast Aluminum
Finish A Black
H Bronze
G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Lamping: 100W maximum PAR30/R30 medium base lamp. Lamp is not included. Lower wattage lamps are acceptable. HID PAR30 MH or MV acceptable with remote ballast (not included).
WARRANTY: Three-year limited warranty.

Composite
One-piece injection molded ULTEM® High Performance Polymer composite.
Fully rotatable shroud, gasketed, ULTEM® High Performance Polymer composite. Composite is textured, pressure formed, molded-in-color.

Lamping: 75W maximum PAR 36. 75W maximum PAR30/R30 medium base lamp Lamp is not included. Lower wattage lamps are acceptable.
WARRANTY: Ten-year limited warranty.

LED
LAMPING: 12W lamp with 15° or 22° beam spread. 25,000 hours life. Color temperature (CCT): cool white (4,000K nominal) or warm white (2,700K nominal). No Mercury. 13W lamp with 25° beam spread. 25,000 hours life. Color temperature (CCT): warm white (2,700K nominal). No Mercury.
Optics: (SP) Spot, (NF) Narrow Flood
CCT: (W) Warm, (C) Cool

Fluorescent
BALLAST: Must order inground (IBH) or above ground (ABH) ballast housing separately.

HOUSING: Fully-adjustable swivel arm with vibration-proof locking teeth. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Gasketing is silicone. Fasteners are 300 series stainless steel.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
ELECTRICAL ASSEMBLY: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 5 5/16" (135mm)
Length: 9 1/2" (241mm)

Accessory
Louver (ML1) The louver is designed to be positioned between the lamp and the existing lens.

Power Consoles, Transformers & Accessories >

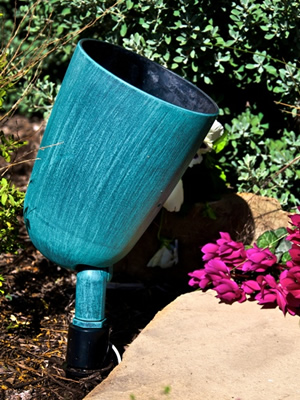

Hadco B4, BM4, BN4, BUN4, BUW4, BW4 Die-cast Aluminum, Die-cast Brass or Composite Large Line Voltage Bullet BulLyte with LED Options

Die-cast Aluminum
Shroud is optional.
Finish A Black
H Bronze
G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Lamping: 300W maximum PAR38/R40 incandescent lamp. Lamp is not included. Lower wattage lamps are acceptable.
OPTICAL ASSEMBLY: Clear Tempered flat glass lens (glass comes with shroud).
WARRANTY: Three-year limited warranty.

Die-cast Brass
Long Shroud is included.
Fully rotatable shroud, gasketed die-cast brass.
N Natural Brass
OB Oiled Brass

Finish: Natural Brass (N) is as-cast and tumble polished. HADCO's Oiled Brass (OB) is chemically dipped to achieve a dark pre-aged patina finish and the appearance will vary between production runs. Finishes will continue to patina over time making each fixture unique.

Lamping: 300W maximum PAR38/R40 incandescent lamp. Lamp is not included. Lower wattage lamps are acceptable.
OPTICAL ASSEMBLY: Clear tempered flat glass lens.
WARRANTY: Lifetime limited warranty.

Composite
One-piece injection molded ULTEM® High Performance Polymer composite or Fully rotatable shroud, gasketed, ULTEM® High Performance Polymer composite. Shroud is optional. Composite is textured, pressure formed, molded-in-color.
Optical Assembly: One-piece injection molded ULTEM High Performance Polymer with silicone O-ring gasket. Lens is siliconed into shroud. BU4, Shroud Optional. BUN4, BUW4, Shroud included.
Lamping: 100W maximum PAR30/R30 or PAR38/R40 medium base lamp. 100W maximum MH medium base: E17 100W maximum MH medium base: PAR38 Lamp is not included. Lower wattage lamps are acceptable. HID PAR30 MH or MV acceptable with remote ballast (not included). Electrical Assembly: 4kv rated medium base porcelain socket. Nickel-plated screw shell with center contact.
WARRANTY: Ten-year limited warranty.

LED
OPTICAL ASSEMBLY: Clear Tempered flat glass lens (glass comes with shroud)
LAMPING: 18W lamp with 25° beam spread, 25,000 hours life. Color temperature (CCT): warm white (3,000K nominal). No Mercury.
Optics: (NF) Narrow Flood, (N) Narrow Beam, (W) Wide, (M) Medium
CCT: (W) Warm or (C) Cool
Accessory Lenses: (B) IBLR, (S) IMSLR, (L) ILSLR, (H) ICGR

Fluorescent
OPTICAL ASSEMBLY: Spun aluminum flood reflector. Clear convex, tempered glass furnished with silicone O-ring for watertight seal.

Lamping: 18W CFL (G24Q-2). 26W CFL (GX24Q-3). 32W CFL (GX24Q-3). Lamp is not included.
BALLAST: Must order inground (IBH) or above ground (ABH) ballast housing separately.

Spot Reflector
Specular aluminum spun reflector.

Lamping: 150 watt maximum HID lamp. Lamp is not included. Lower wattage lamps are acceptable.

HOUSING: Fully rotatable shroud, gasketed, die-cast aluminum or ULTEM® High Performance Polymer composite. Fully-adjustable swivel arm with vibration-proof locking teeth. Gasketing is silicone. Fasteners are 300 series stainless steel. Shroud is optional. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
ELECTRICAL ASSEMBLY: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact.
CERTIFICATIONS: Manufactured to ISO 9001:2008 Standards. ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.

Width: 6 1/4" (159mm)
Die-cast Aluminum Length: 8-9/16" 218mm, (S)10-3/16" 259mm, (L)16-1/2" 419mm
Die-cast Brass Length: 13" (330mm)
Composite, Spot Reflector Length: 16 1/2" (419mm)
Fluorescent Composite Height : 2 5/16"
Fluorescent Composite Length: 10 3/16"
Fluorescent Cast Aluminum Height : 2 15/16"
Fluorescent Cast Aluminum Length: 16 1/2" (419mm)

Accessories
Louver (ML1) The louver is designed to be positioned between the lamp and the existing lens.
Aluminum Shroud (4) Fully-rotatable with silicone O-ring gasket, die-cast aluminum. B4, shroud is optional (see ordering information below); BN4, BW4, shroud included.

Power Consoles, Transformers & Accessories >

Hadco BL36 Die-cast Aluminum, BPL36 Composite Low Voltage Bullet BulLyte

Finish A Black
H Bronze
G Verde

Die-cast Aluminum

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting.

Lamping: 20W PAR36 lamp included.
Fully rotatable die cast aluminum shroud.

Composite

Finish: Composite is textured, pressure formed, molded-in-color.

Lamping: 50W maximum PAR36 screw terminal lamp. Lower wattage lamps are acceptable.
Fully rotatable shroud, injection molded polyester resin.
WARRANTY: Ten-year limited warranty.

Low Voltage
ELECTRICAL ASSEMBLY: Double screw terminal socket. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Fully-adjustable swivel arm with vibration-proof locking teeth. Fasteners are 300 series stainless steel.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Length: 6 3/8" (162mm)
Width: 5 1/8" (130mm)

Power Consoles, Transformers & Accessories >

Hadco BL5016 Low Voltage Die-cast Marine Grade Aluminum Alloy Accent Bullet BulLyte with EnduraLED MR16 Options

Die-cast Aluminum

Finish: A Black
G Verde
H Bronze
T Speckle Stone (LED only)

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
WARRANTY: Three-year limited warranty.

LED
OPTICAL ASSEMBLY: Clear Tempered flat glass lens (glass comes with shroud)
LAMPING: 18W lamp with 25° beam spread, 25,000 hours life. Color temperature (CCT): warm white (3,000K nominal). No Mercury.
Optics: (NF) Narrow Flood
CCT: (W) Warm

HOUSING: Die-cast marine grade aluminum alloy. Fully-adjustable swivel arm with vibration-proof locking teeth. Fully rotatable shroud, double gasketed, die-cast marine grade alloy aluminum. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Gasketing is silicone. Fasteners are 300 series stainless steel.
LAMPING: 50W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. Stainless steel retention clip affixed to socket to securely hold lamp in place. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 2 13/16" (71mm)
Length: 5 13/16" (147 mm)

Power Consoles, Transformers & Accessories >

• Clear tempered glass affixed at 10° angle for natural cleaning
• High temperature adhesive
• Die cast marine grade alloy aluminum
• Stainless Steel shroud-locking machine screw
• Serrated teeth for positive lock
• Die cast locking nut
• Stainless Steel Phillips locking screw Black WC coated
• Specular aluminum heat shield
• Fixed socket with high temperature Teflon leads mounted to heat sink
• Double molded silicone gaskets
• 1/2" N.P.S. fitter
• Shroud is fully rotatable at 360°
• Die cast marine grade aluminum
• Internal mounting of shroud to insure waterproof operation in any position of fixture

Hadco BT5016 Line Voltage with Step-down Transformer MR16 or LED Marine Grade Die-cast Aluminum Bullet

Step-down transformer reduces line voltage to 12 volts.

Finish A Black
H Bronze
G Verde

MR16
LAMPING: 50W maximum MR16 bi-pin lamp. Lamp is not included. Covered MR16 lamps are recommended to protect lamp's inner capsule. Lower wattage lamps are acceptable.

LED
LAMPING: 4W lamp with 24° beam spread. 30,000 hours life. Color temperature (CCT): warm white (2,700K nominal). No Mercury. 7W lamp with 15°, 24°, or 36° beam spread. 25,000 hours life. Color temperature (CCT): cool white (4,000K nominal) or warm white (2,700K nominal). No Mercury.

HOUSING: 360 Die-cast marine grade aluminum. Fully-adjustable swivel arm with vibration-proof locking teeth. Fully rotatable shroud, double gasketed, die-cast marine grade alloy aluminum. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. Fixture is pre-wired with 18 AWG black, white, and ground wires. Step-down transformer reduces line voltage to 12 volts. Transformer is potted/encapsulated and features thermal overload protection. Can be used with energy-efficient halogen lamp.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 2 13/16" (71mm)
Length: 5 3/8" (137mm)

Power Consoles, Transformers, Stakes, Posts & Accessories >

Hadco BL616 Low Voltage Die-cast Marine Grade Aluminum Alloy Accent Bullet BulLyte with LED Options

Die-cast Aluminum
Finish A Black
H Bronze
G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting.
OPTICAL ASSEMBLY: Clear tempered glass lens.
WARRANTY: Three-year limited warranty.

LED
OPTICAL ASSEMBLY: Clear tempered glass lens.

Lamping: 4W lamp with 24° beam spread. 30,000 hours life. Color temperature (CCT): warm white (2,700K nominal). No Mercury. 7W lamp with 15°, 24°, or 36° beam spread. 25,000 hours life. Color temperature (CCT): cool white (4,000K nominal) or warm white (2,700K nominal). No Mercury.
Optics: (SP) Spot (NF) Narrow Flood (FL) Flood
CCT: (W) Warm or (C) Cool

HOUSING: Die-cast marine grade aluminum alloy. Fully rotatable shroud, gasketed, die-cast marine grade aluminum alloy. Fully-adjustable swivel arm with vibration-proof locking teeth. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel.
LAMPING: 50W maximum MR16 bi-pin lamp. Lamp is not included. Lower wattage lamps are acceptable.
OPTICAL ASSEMBLY: Clear tempered glass affixed at 10° angle for natural cleaning.
ELECTRICAL ASSEMBLY: Bi-pin socket type (GU5.3) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 3" (77mm)
Length: 5 1/2" (141mm)

Power Consoles, Transformers & Accessories >

Hadco BL7D1 Die-cast Marine Grade Aluminum Low Voltage LED Mini-BulLyte

Finish
A Black
G Verde
H Bronze

LED
OPTICAL ASSEMBLY: Clear or frosted tempered glass lens.

Lamping: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.

HOUSING: Die-cast marine grade aluminum alloy. Fully rotatable shroud, double gasketed, die-cast marine grade alloy aluminum. Fully-adjustable swivel arm with vibration-proof locking teeth. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel. Gasketing is silicone.

Finish: For larger projects where a custom color is required, contact the factory for more information. Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 10-14. Input frequency: 60Hz. (magnetic low voltage transformer required). 12 volts, 1.6 total watts. Integral electronic LED driver. -10ºC/14ºF minimum starting temperature. Low voltage transformer must be ordered to power the fixtures. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Five-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.

Length:
Height : 2" (51mm)
Width: 4 3/8" (111mm)

Lens
C Clear Lens
F Frosted Lens

CCT
W Warm 3000K
C Cool 4000K

Power Consoles, Transformers, Stakes, Posts & Accessories >

Hadco BL711 Low Voltage Die-cast Aluminum Accent Micro Bullet BulLyte

Die-cast Aluminum
Finish A Black
H Bronze

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Clear tempered glass lens.
WARRANTY: Three-year limited warranty.

HOUSING: Die-cast aluminum. Double gasketed shroud, die-cast aluminum. Fully-adjustable swivel arm with vibration-proof locking teeth. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel.

Lamping: 20W maximum T3 bi-pin lamp. 35W maximum MR11 bi-pin lamp. Lamp is not included. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Width: 2" (51mm)
Depth: 4 3/8" (111mm)

Power Consoles, Transformers & Accessories >

Hadco FlexScape LED BL9 Low-Voltage LED Accent Light
Breaking new ground with optimal versatility

The all-in-one solution for landscape lighting
Imagine the convenience and cost savings of having different light levels and a variety of beam patterns, all within a single LED luminaire. Introducing FlexScape, a new family of innovative accent and inground landscape luminaires for commercial and residential applications.

One fixture. Multiple light levels and beam patterns.
Every FlexScape luminaire provides countless lighting outcomes to choose from. As a result, you'll also enjoy better flexibility in the field, meaning easy adjustments during installation or down the road, should the landscape or lighting needs change. In addition, its LUXEON LED technology ensures outstanding energy savings and service life.

Exclusive customizing capabilities.
Both FlexScape inground and accent luminaires have built-in flexibility. Choose from four light outputs between 111 and 710 lumens, as well as beam patterns ranging from narrow (15°) to wide flood (60°). With different lighting outcomes, FlexScape lets you custom-design the most suitable landscape luminaire for the job, while saving time and money.

The LED Accent version brings landscape lighting to the next level. Designed for optimal LED performance, it provides the lighting professional with countless lowvoltage options.

The luminaire's rugged die-cast aluminum housing features low-energy outdoor lighting. Convenient beam adjustability makes for easy on-site lighting effect changes. The lockable aiming is well- suited for accenting objects, textures, walls, trees, etc. This all-weather luminaire comes with 100% molded silicone gaskets.

Hadco FlexScape LED Landscape Lights >

Photometrics

See Hadco Photometric Data >
(PDF will open in a new window.)
Photometrics for MR11, MR16, PAR36, PAR20, R40 and R20
Learn how Wide the beam from each bulb can spread.
