Hadco Ciello LED Line Voltage Floods

Hadco FL-50 Ciello LED Line Voltage Flood Lights

Series: FL-50 Ciello
Wattage: 1X5.5W
Lamp: MR16
Voltage: 120/12 120/12 V4
CCT: WW Warm

Finish
BK Black
BZ Bronze
WH White
GR Green
GY Gray
NA Natural Aluminum
CC Custom Color

Options
UD Up/Down Mount
STNM Stanchion Mount
SM Spike Mount

Posts
SP Straight Post
SP Straight Post

Junction Boxes
JBRS Surface Mount
JBRC Conduit Moun

Features
• 120 Volt
• MR16 LED Lamp
• Integral stepdown transformer

Housing
Lamp Housing: Die-cast aluminum housing and swivel that allows a 75° vertical tilt adjustment on the Up/ Down, wall mount and Spike mount housings and 165° vertical tilt adjustment on Straight post mounting options.
Transformer Housing: Transformer is integral with all versions when 120, 220-240 or 277 is specified. Standard transformer is electronic with 120, 220 or 277 volt primary and 12 volt secondary. A JBRS surface mount junction box or other suitable housing must be specified with this feature.

Lens Ring: Die cast aluminum mounted to lamp housing with three stainless steel cap screws. Clear flat tempered glass is standard.

Lamp Holder: Porcelain 2-pin GU5.3 or GY6.35.

Finish: Thermoset powder coated in; black, bronze, white, green, green, gray or natural aluminum. Electrostatically applied and bonded by heat fusion thermosetting (CC available upon request).

Options: The following options are available: Wall mount up/ down dual head (UD), ground mount mini straight post (SP) and (SM) Spike mount.

Labels: ETL and CETL listed for wet location and meets IP65 standard, dust-tight and water-jet proof.

FL-50-50LV-BK-UD Ciello Series Low Voltage Die Cast Landscape Floodlights. Standard or CC Custom Color Painted
LED
FL-50-1X4LED-WW-MR16-120/12-BK MR16, GU5.3 Base
FL-50-1X4LED-CW-MR16-120/12-BK MR16, GU5.3 Base
LineV
FL-50-50LV-120-BK MR16, GU5.3 Base
FL-50-50LV-277-BK MR16, GU5.3 Base
LV
FL-50-50LV-12-BK MR16, GU5.3 Base
Options
UD Up/Down Mount (add 2 heads for total price)
SP Straight Post
SP2 Straight Post 2
JBRS Surface Mount Junction Box
JBRC Coinduit Mount Junction Box
STNM Stanchion Mount
SM Spike Mount - Requires Low Voltage Remote Transformer

Hadco FL-51 Ciello LED Line Voltage Flood Lights

Series: FL-51 Ciello
Wattage: 1X4W
Lamp: MR16
Voltage: 120/12 120/12 V4
CCT: WW Warm

Finish
BK Black
BZ Bronze
WH White
GR Green
GY Gray
NA Natural Aluminum
CC Custom Color

Options
UD Up/Down Mount
STNM Stanchion Mount
WMR Recessed Wall Mount
WMS Surface Wall Mount

Ballast Housings
CBH Composite
EEBH Electronic Elliptical

Junction Boxes
JBRTM Tree Mount
JBS Square Mount

Others
MV Medium Visor5
HL Internal Hex Cell Louver
LV Low Voltage
DK Designer Knuckle
CP Curved Post
SA Straight Arm

Spread Lenses
LSL Linear
PSL Prismatic

Features
• 120 Volt
• MR16 LED Lamp
• Integral stepdown transformer

Housing
Fixture /Knuckle: The housing and knuckle are constructed of die cast aluminum with a minimum 1/8" thickness. Knuckle comes with 1/2" NPT threads for mounting to standard junction boxes or with an additional cast swivel for mounting to the available ballast housings. The knuckles provide 142 vertical (52º down, 90º up ) and 360º horizontal adjustability.

Lens: Clear tempered glass 3/16" thick, sealed to lens frame with injection molded silicone gasket.

Lens Frame: Die cast aluminum minimum thickness of ⅛". Attached to fixture housing with four captive stainless steel 8-32 socket cap screws.

Lamp Holder: Porcelain 4kv pulse rated medium base for HID and Incandescent sources.

Finish: Thermoset powder coated in; black, bronze, white, green, green, gray or natural aluminum. Electrostatically applied and bonded by heat fusion thermosetting (CC available upon request).

Options: The following options are available: Medium Visor (MV), Linear Spread Lens (LSL), Prismatic Spread Lens (PSL), Internal Hex Cell Louver (HL).

Reflectors: Spun aluminum highly specular finish for either type SPT spot, FLD flood or MFLD medium flood for T6 lamps. All reflectors are provided with an adjustable external focusing mechanism.

Labels: ETL and CETL listed for wet location and meets IP65 standard, dust-tight and water-jet proof.


FL-51-39MH-T6-SPT-BK Ciello Series Precision Floodlight Standard or CC Custom Color Painted
FL
FL-51-26CFT-120-FLD-BZ-CBH CFT 4 pin, GX24q-3 Base
FL-51-32CFT-120-FLD-BZ-CBH CFT 4 pin, GX24q-3 Base
Inc
FL-51-50INC-MR16-120-BZ-CBH MR16, GU5.3 Base
FL-51-50INC-PAR20-120-BZ PAR20, Medium Base
FL-51-50INC-PAR30-120-BZ PAR30, Medium Base
LED
FL-51-1X4LED-WW-MR16-120-10-BZ-CBH MR16, GU5.3 Base
MH
FL-51-39MH-T6-120-SPT-EZ-CBH T6, G12 Base
FL-51-39MH-PAR20-120-BZ-CBH PAR20, Medium Base
FL-51-70MH-T6-120-SPT-BZ-CBH T6, G12 Base
FL-51-70MH-PAR30-120-BZ-CBH PAR30, Medium Base
Options

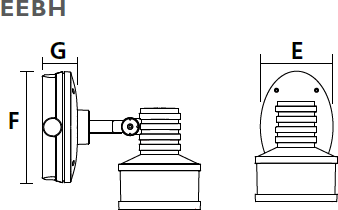

EEBH Electronic Elliptical Ballast Housing
SPT Spot Reflector (T6 or T4 lamp)
FLD Flood Reflector (T6 or T4 lamp) or CFT (6V6H)
LSL Linear Spread Lens
PSL Prismatic Spread Lens
MV Medium Visor
HL Internal Hex Louver
DK Designer Knuckle
JBS Junction Box Square
JBRTM Junction Box Round Tree Mount
STNM Stanchion Mount INC or RCBH or RBH only
WMR Wall Mount (Recessed Ballast)
WMS Wall Mount (Surface)
UD Up/Down (add 2 heads for total price) (Specify WMR, or WMS)
CP Curved Post
SA Straight Arm
