Hadco Deck Lights

Hadco CUL20 12 Volt Copper Deck Light

CUL20 Natural Copper
CUL20 Copper Bell Shaped Decklyte w/Lamp 12v 10W Xenon T3 Copper Quick Ship

Finish: Natural Copper

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

GADL20: Spun solid copper. Copper back plate.

Low Voltage
LAMPING: 12W maximum wedge base T3-¼ lamp. 10W wedge base T3 ¼ (xenon) lamp is included with fixture. Xenon lamp life is approximately 10,000 hours. Lamp does not need to be protected and can be directly handled.
ELECTRICAL ASSEMBLY: Wedge base socket type (T3-¼ or T5). 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

OPTICAL ASSEMBLY: Reflective white powdercoat on underside of roof.
INSTALLATION & MOUNTING: Two (2) Stainless #8 wood screws (supplied) via key slots.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 2 9/16" (65mm)
Width: 4" (102mm)
Depth: 1 3/4" (52mm)


Hadco GADL4 Copper 4x4 Post Top Low Voltage Copper DeckLyte

Housing: Hand-formed solid copper. Fasteners are 400 Series brass. Post Fitter - 4" x 4" formed solid copper fitter. Fits over a standard wooden 4" x 4" post. Fixture attaches to surface through internally mounted stainless screws.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.
Optical Assembly: Field Adjustable four-sided house-side shield allows light distribution from 1, 2, 3 or all 4 sides. Polycarbonate refractive lens. Reflector is a stamped specular aluminum.

Lamping: 20W maximum T3 bi-pin lamp. 10W T3 lamp is included with fixture. Electrical Assembly: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 volt fixture is pre-wired with 6-ft. Pigtail of 18-2 AWG, 105° C, SPT-1 wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
Installation: & Mounting: Two (2) stainless #8 wood screws (included).
WARRANTY: Lifetime limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001: 2000 Standards.
Height: 3 3/16" (81mm)
Width: 4 9/16" (116mm)
Base Dimensions: 3 1/2" (89mm)


Voltage Lamp Wattage Finish Stock
GADL4-AC 4X4 Post Top Copper Decklyte 12v 10W Xenon T3 Copper Quick Ship

Hadco GACL1, GACL2 Low Voltage Copper DeckLytes

Finish AC Hand-Crafted Copper

Finish: Antique Copper (AC) is a hand-applied dark copper patina.
HOUSING: Hand-formed solid copper.

Low Voltage

Lamping: 12W maximum wedge base T3-¼ lamp. 10W wedge base T3 ¼ (xenon) lamp is included with fixture. Xenon lamp life is approximately 10,000 hours. Lamp does not need to be protected and can be directly handled. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Wedge base socket type (T3-¼ or T5). 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

GACL1 Copper
Bottom is open. Down light.

Height : 5 1/8" (130mm)
Width: 2 15/16" (75mm)
Depth: 1 9/16" (40mm)

GACL2 Copper
Top and bottom are open. Up and down light.
Optical Assembly: Frosted tempered glass top cap.

Height : 5 1/8" (130mm)
Width: 2 15/16" (75mm)
Depth: 1 9/16" (40mm)

INSTALLATION & MOUNTING: Two (2) Stainless #8 wood screws (supplied) via key slots.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Voltage Lamp Wattage Finish Stock
GACL1-AC Copper 1/2 Cylinder Decklyte, Downlyte w/Lamp 12v 10W Xenon T3 Copper Quick Ship
GACL2-AC Copper 1/2 Cylinder Decklyte, Up/Downlyte w/Lamp 12v 10W Xenon T3 Copper Quick Ship

Hadco SRL3, SRL4 Low Voltage Die-cast Aluminum DeckLyte

Finish A Black
H Bronze
B White (SRL4 only)
G Verde (SRL4 only)

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

SRL3
LAMPING: 18W maximum S-8 (1141) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

Height : 4 3/8" (111mm)
Width: 2 1/2" (64mm)
Depth: 2 1/16" (52mm)

SRL4
LAMPING: 12W maximum wedge base T3-¼ lamp. 10W wedge base T3 ¼ (xenon) lamp is included with fixture. Lower wattage lamps are acceptable. Xenon lamp life is approximately 10,000 hours. Lamp does not need to be protected and can be directly handled.
ELECTRICAL ASSEMBLY: Wedge base socket type (T3-¼ or T5). 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

Height : 2 3/8" (60mm)
Width: 3 1/2" (89mm)
Depth: 2" (51mm)

HOUSING: Die-cast aluminum. Fasteners are 300 series stainless steel.
OPTICAL ASSEMBLY: Frosted tempered glass lens.
INSTALLATION & MOUNTING: Two (2) Stainless #8 wood screws (supplied) via key slots.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.



  Voltage Lamp Wattage Finish Stock
SRL3-A Decklyte w/Lamp 12v 10W Xenon T3 Black Quick Ship
SRL3-H Decklyte w/Lamp 12v 10W Xenon T3 Bronze Quick Ship
SRL4-A Decklyte w/Lamp 12v 10W Xenon T3 Black Quick Ship
SRL4-B Decklyte w/Lamp 12v 10W Xenon T3 White Quick Ship
SRL4-G Decklyte w/Lamp 12v 10W Xenon T3 Verde Quick Ship
SRL4-H Decklyte w/Lamp 12v 10W Xenon T3 Bronze Quick Ship

Hadco DAL1, DAL1D, DCL1, DCL1D, DUL1, DUL1D LED Die-cast Aluminum, Die-cast Brass or Composite Decklyte with LED options

Die-cast Aluminum

Finish: (A) Black
(B) White
(G) Verde
(H) Bronze
(T) Speckled Stone
(U) Sienna
(SS) Stainless Steel

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
HOUSING: Body and mounting plate are cast aluminum construction.

Composite

Finish: (A) Black
(G) Verde
(H) Bronze

Finish: Composite is textured, pressure formed, molded-in-color.
HOUSING: One-piece injection molded ULTEM® High Performance Polymer composite.

Brass
Die-cast brass.

Finish: Natural Brass (N) is as-cast and tumble polished.

Low Voltage
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 1.7 total watts consumed. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
CCT W Warm 3000K or C Cool 4000K

HOUSING: Fasteners are 300 series stainless steel.
OPTICAL ASSEMBLY: Frosted, annealed glass lens. Reflector is a stamped specular aluminum.
INSTALLATION & MOUNTING: Two (2) Stainless #8 wood screws (supplied) via key slots.
IP RATING: IP67: Dust-tight and dual rated - sealed against direct jets of water and against continuous immersion up to a depth of 1 meter (3.28 feet).
WARRANTY: Five-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 3 1/2" (89mm)
Width: 3 1/2" (89mm)
Depth: 1 7/8" (48mm)




  Voltage Lamp Wattage Finish Stock

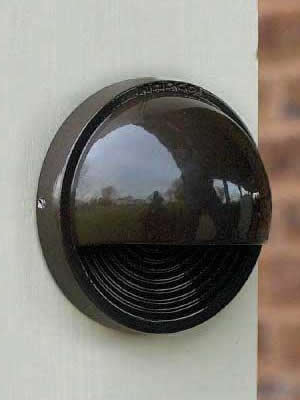

DAL1-A Round Steplyte 12v 10W T3 Black Quick Ship
DAL1-B Round Steplyte 12v 10W T3 White Quick Ship
DAL1-G Round Steplyte 12v 10W T3 Verde Quick Ship
DAL1-H Round Steplyte 12v 10W T3 Bronze Quick Ship
DAL1-SS Round Steplyte 12v 10W T3 Stainless Matte Finish Quick Ship
DAL1-T Round Steplyte 12v 10W T3 Speckled Stone Non Stock
DAL1D LED Round Steplyte w/LED- CCT Warm or Cool 12v 1.7W Black, White, Verde, Bronze, Speckled Stone, Stainless Steel Non Stock
DAL1D_-SS LED Round Steplyte w/LED- CCT Warm or Cool 12v 1.7W Stainless Steel Non Stock
DCL1-N Brass Round Steplyte w/Lamp 12v 10W T3 Brass Quick Ship
DCL1D Brass Round Steplyte w/LED- CCT Warm or Cool 12v 1.7W Brass Quick Ship
DUL1-A Round Ultem Decklyte w/Lamp 12v 10W T3 Black Quick Ship
DUL1-G Round Ultem Decklyte w/Lamp 12v 10W T3 Verde Quick Ship
DUL1-H Round Ultem Decklyte w/Lamp 12v 10W T3 Bronze Quick Ship
DUL1D Round LED Ultem Decklyte w/LED- CCT Warm 12v 1.7W Verde Non Stock
DUL1D Round LED Ultem Decklyte w/LED- CCT Warm 12v 1.7W Black or Bronze Quick Ship
DUL1D Round LED Ultem Decklyte w/LED- CCT Cool 12v 1.7W Black, Verde, Bronze Non Stock

Hadco RL13 Composite Low Voltage DeckLyte

Finish: A Black

Low Voltage
LAMPING: 10W maximum T3 bi-pin lamp. 10W T3 lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Injection-molded RYTON® composite and polycarbonate. Fasteners are 300 series stainless steel.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications. Composite is textured, pressure formed, molded-in-color.
OPTICAL ASSEMBLY: Molded prismatic acrylic polycarbonate to allow adjustable light distribution.
INSTALLATION & MOUNTING: Two (2) Stainless #8 wood screws (supplied) via key slots.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 1 15/16" (49mm)
Width: 3 3/8" (86mm)
Depth: 2 3/16" (55mm)


  Voltage Lamp Wattage Finish Stock
RL13-A Composite Decklyte w/Lamp 12v 10W T3 Halogen Black Quick Ship

Hadco DSL2 Low Voltage Die-cast Aluminum Directable DownLyte

Finish A Black
B White

Low Voltage
LAMPING: 18W maximum S-8 (1141) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 8-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Machined aluminum top cap and cast aluminum body with adjustable yoke. Fasteners are 300 series stainless steel.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Frosted tempered glass lens.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 3 5/8" (92mm)
Width: 2 1/2" (64mm)



  Voltage Lamp Wattage Finish Stock
DSL2-A Square Surface Downlyte with Bracket w/Lamp 12v 18W 1141 Black Quick Ship
DSL2-B Square Surface Downlyte with Bracket w/Lamp 12v 18W 1141 White Quick Ship
