Hadco Art Nouveau Floral and Tulip Path Lights
Low Voltage and Line Voltage

Hadco FUL1 Cast Aluminum Verde Small Floral Low Voltage Path Light

Finish G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Single-piece cast aluminum. Stem is extruded aluminum. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

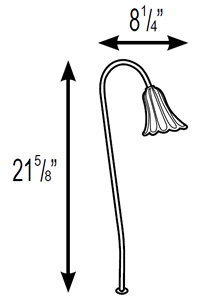

Height : 21 1/2" (544mm)
Width: 8 1/4" (209mm)

Power Consoles, Transformers, Stakes
Posts & Accessories >

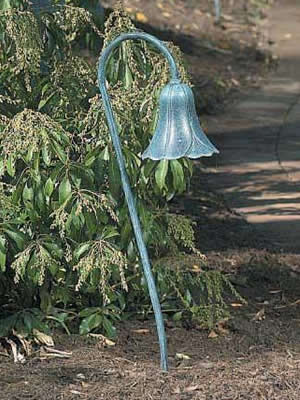

Hadco TUL1 Cast Aluminum Small Low Voltage Tulip PathLyte

Finish G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Single-piece cast aluminum. Stem is extruded aluminum. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 22 1/16" (560mm)
Width: 7 3/8" (188mm)

Hadco TU3 Cast Aluminum Large Line Voltage Tulip PathLyte

Finish G Verde

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Line Voltage
LAMPING: 100W maximum A19 lamp. Lamp is not included. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact. Fixture is pre-wired with 18 AWG black, white, and ground wires.

HOUSING: Single-piece cast aluminum. Stem is extruded aluminum. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 36" (914mm)
Width: 10 5/16" (262mm)
