Hadco Advent & Mushroom Path Lights

Hadco MSL Advent Low Voltage Die-cast Aluminum Path Lights

Finish: A Black
H Bronze
G Verde

MSL12
Height: 13 1/2" (343mm)

MSL18
Height: 19 1/2" (495mm)

HOUSING: Die-cast aluminum. Hidden fasteners and aluminum stem. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Lamping: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 13 1/2" (343mm)
Width: 4 1/2" (114mm)
Max. Weight: 1.32 lb.

Hadco MUL4 T3 Bi-pin or ML4D3 LED Small Mushroom Die-cast Brass or Aluminum Low Voltage Path Lights

Mushrooms offer classic styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these lights produce a uniform light pattern with no objectional glare.

Finish: OB Oiled Brass
N Natural Brass
Oiled Brass and Natural Brass are die-cast brass with a solid brass stem.
Natural Brass (N) is as-cast and tumble polished. HADCO's Oiled Brass (OB) is chemically dipped to achieve a dark pre-aged patina finish and the appearance will vary between production runs. Finishes will continue to patina over time making each fixture unique.
WARRANTY: Lifetime limited warranty.
(Not available in LED)

Finish: A Black
G Verde
H Bronze
Black, Verde and Bronze are die-cast aluminum. Stem is extruded aluminum.
Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
WARRANTY:
T3 Bi-pin Three-year limited warranty.
LED Five-year limited warranty.

T3 Bi-pin
HOUSING: Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping.

Lamping: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads.

LED
IP RATING: IP66: Dust-tight and sealed against direct jets of water.
HOUSING: Cool external temperatures - all below 43ºC - so the light is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European standard EN 563 both 1 second (74ºC for coated metal, 80ºC for glass) and 4 seconds (61ºC for coated metal, 70ºC for glass) of contact. Fasteners are 300 series stainless steel.

Lamping: Philips Lumiled Rebel, Cool White (4,000K).
ELECTRICAL ASSEMBLY: OptoElectronix electronic LED driver. UL Class 2 -10°C to 50°C mimum starting temperature. Internal surge protector built into LED driver circuit Input voltage range (VAC): 10 - 14. 3.8 total watts consumed. Connects directly to 12V AC or 12V DC power source.

Specifications
HOUSING: 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Spun aluminum reflector with white thermoset powdercoat. Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
ELECTRICAL ASSEMBLY: 12 Volt system requires remote transformer, not included. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 19 1/2" (495mm)
Width: 5 1/16" (129mm)
Max. Weight: 1.9 lb.

Hadco Mushroom Quantity Discounts T3 Bi-pin Die-cast Low Voltage Path Lights >
T3 Bi-pin Powdercoat Black & Bronze finish available in 25 unit Bulk Packs.
Ask about other discounts for quantity.

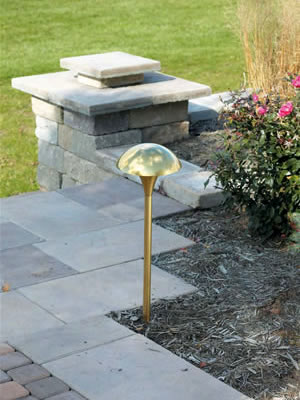

Hadco MU5 or MUL5 Medium Mushroom Die-cast Brass or Aluminum Low Voltage Path Lights

Finish: N Natural Brass
Natural Brass Pathlytes are die-cast brass with a solid brass stem.
Natural Brass (N) is as-cast and tumble polished. Natural Brass will age over time, can be field painted. The pathlights will continue to patina over time making each fixture unique.
WARRANTY: Lifetime limited warranty.

Finish: A Black
G Verde
H Bronze
Black, Verde and Bronze are die-cast aluminum. Stem is extruded aluminum.
Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
WARRANTY: Three-year limited warranty.

Low Voltage
OPTICAL ASSEMBLY: Spun aluminum reflector with white thermoset powdercoat.

Lamping: 35W maximum T3 halogen. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

Line Voltage
OPTICAL ASSEMBLY: Underside of roof has white reflector, with center ALZAK© reflector for optimal light distribution.

Lamping: Lamp is not included. 100W maximum A19 lamp. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact. Fixture is pre-wired with 18 AWG black, white, and ground wires.

HOUSING: Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 25" (635mm)
Width: 9" (229mm)
Max. Weight: 5.55 lb.
