The Basics of Tech Lighting FreeJack

FreeJack is a completely customizable lighting system.

Choose your Pendant or Track Head
Choose from a wide array of low voltage pendants and lights.
Then add accessories if desired. There is a broad range of colorful and decorative accessories and functional optical controls.
(Below Right: 4-Port Canopy with Tech Lighting Helios LED Architectural Heads)

Choose Your Canopy
Choose from a wide variety of single or multiple canopies.

Add a Swag Hook
Use a Swag Hook to gracefully change a pendant's point of suspension from the mounting canopy to any point on the ceiling. The screw secures the cord to create dramatic draping.

FreeJack Canopies, Adapters & System Connectors

Above: Tech Lighting Sprocket Head on Single Free Jack Canopy
Below: 3" Elton Heads with Eggcrate Louvers on FreeJack 4" Round Flush Canopies


Single Port FreeJack Canopies with Integral Transformer

Above: 4 Flat
Below: 4V Vaulted

Tech Lighting FreeJack Surface Canopy 700FJSF4

FJ-Surface Mount

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Made for Flat or Vaulted Ceiling.

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Vaulted version available for ceilings up to 45°. Electronic transformer inside 2" high, 4.5" diameter housing. One FreeJack port; for ceiling or wall.
Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting FreeJack Venus Canopy 700FJSFV

FJ-Venus canopy

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformer inside 3" high, 4.5" diameter housing.
One FreeJack port; for ceiling or wall.
Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.

Right: Tech Lighting Venus Canopy for ceiling shown with Jaclien On the Beach textured orange Pendant



Tech Lighting FreeJack 4" Round Flush Canopy 700FJ4RF

FJ-4" Round canopy

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformer (included) fits in junction box.
One FreeJack port; for ceiling or wall.
Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting FreeJack Port with 4" Square Flush Canopy 700FJ4SQ

FJ-4" Square canopy

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician).
Electronic transformer (included) fits in junction box. One FreeJack port; for ceiling or wall.
Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting FreeJack 4" Round Flush Wood Canopy 700FJ4RD

FJ-4" Round Wood Canopy

Maple (shown) or Walnut

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformer (included) fits in junction box.
One FreeJack port; for ceiling or wall.
Dimmable*
MINIMUM 12" DROP LENGTH FOR PENDANTS AND HEADS.

Finish: Antique Bronze or Satin Nickel



Tech Lighting FreeJack 4" Square Flush Wood Canopy 700FJ4SQD

FJ-4" Square Wood Canopy

Maple or Walnut (shown)

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformer (included) fits in junction box.
One FreeJack port; for ceiling or wall.
Dimmable*
MINIMUM 12" DROP LENGTH FOR PENDANTS AND HEADS.

Finish: Antique Bronze or Satin Nickel

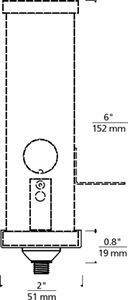

Tech Lighting FreeJack 2" Square Flush Canopy 700FJ2SQ67

FJ-2" Square canopy

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a special 2" square, 6" deep junction box (included). Electronic transformer (included) fits in junction box. One FreeJack port; for ceiling only. Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.

Dimming

120V FreeJack canopies are dimmable with a standard Incandescent dimmer.
120V LED FreeJack canopies are dimmable with a low-voltage electronic dimmer.
277V FreeJack canopies are dimmable with 277V Incandescent dimmer.
277V LED canopies are dimmable with 277V low-voltage electronic dimmer.

Multi Port FreeJack Canopies for use with Remote Transformer

Tech Lighting FreeJack 4-Port Square Canopy 700FJS4

FJ-Square canopy 4 port
Canopy Only
Pendants or Heads Sold Separately

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a special 2" square, 6" deep junction box (included). Electronic transformer (included) fits in junction box. One FreeJack port; for ceiling only. Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting 3-Port Linear Port Canopy shown with three White Frit Melt Pendants

Tech Lighting 700FJL3 FreeJack 3-Port Linear Canopy

700FJL3 FJ-Linear canopy 3 port
Canopy Only
Pendants or Heads Sold Separately

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformers inside a 28" by 4" housing. Three FreeJack ports; for ceiling only. Dimmable*
This product can mount to either a 4" square electrical box with
round plaster ring or an octagonal electrical box (not included).
For ceiling only. Transformers (included) fit in canopy.

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting 700FJLD3 FreeJack 3-Port Linear Canopy

700FJLD3 FreeJack Canopy 120/12
Metal, Maple or Walnut

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Drywall anchors included for additional support. Includes electronic transformers and 3 lowvoltage FreeJack ports.
This product can mount to either a 4" square electrical box with round plaster ring or an octagonal electrical box (not included). For ceiling only. Transformers (included) fit in canopy.

Finish: Antique Bronze or Satin Nickel



Tech Lighting FreeJack 3-Port and 5-Port Round Canopy 700FJR 3 & 5

FJ-Round canopy 3 port
FJ-Round canopy 5 port
Canopy Only
Pendants or Heads Sold Separately

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician).
Available in two styles. 3-port canopy has electronic transformers inside 12" diamter housing.
5-port canopy has elecronic transformers inside 16" diameter housing.
Three or five FreeJack ports: for ceiling only. Dimmable*

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.



Tech Lighting FreeJack 4-Port Round Canopy 700FJR4

FJ-Round Canopy 4-port
Canopy Only
Pendants or Heads Sold Separately

Voltage: 120V in / 12v out
120V in / 24v out
277v in / 12v out
120V in / 12v out LED 277v in / 12v out LED

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Electronic transformers in a 12" diameter housing. Four FreeJack ports. For ceiling only. Dimmable*

Finish: Antique Bronze or Satin Nickel



Tech Lighting 700FJLD7 FreeJack 7-Port Linear Canopy

700FJLD7 FreeJack Canopy 7
Metal, Maple or Walnut

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Drywall anchors included for additional support. Includes electronic transformers and 7 lowvoltage FreeJack ports.
This product can mount to either a 4" square electrical box with round plaster ring or an octagonal electrical box (not included). For ceiling only. Transformers (included) fit in canopy.

Finish: Antique Bronze or Satin Nickel



Tech Lighting 700FJRD11 FreeJack 11-Port Round Canopy

700FJRD11 FreeJack Canopy 11

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Drywall anchors included for additional support. Includes electronic transformers and 7 lowvoltage FreeJack ports.
This product can mount to either a 4" square electrical box with round plaster ring or an octagonal electrical box (not included). For ceiling only. Transformers (included) fit in canopy.

Finish: Antique Bronze or Satin Nickel

Dimming

120V FreeJack canopies are dimmable with a standard Incandescent dimmer.
120V LED FreeJack canopies are dimmable with a low-voltage electronic dimmer.
277V FreeJack canopies are dimmable with 277V Incandescent dimmer.
277V LED canopies are dimmable with 277V low-voltage electronic dimmer.

Single Port FreeJack Canopies for use with Remote Transformer

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Tech Lighting FreeJack 1.6" Port Alone 700FJFCP

FJ-Port Alone

Finish: Antique Bronze, Chrome, Satin Nickel.

Minimal 1 1/2" diameter, 2 1/ 2" deep. Can be installed in a range of locations. Access to back of ceiling is not needed.

Use to power a Series of Heads or Pendants from a remote transformer (sold separately).

Port Alone allows a Series of FreeJack elements to be powered from a single-feed remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Each FreeJack element can be used up to its specified wattage (see element and accessory for details).

Installation: Mounts to Tech Lighting's special cylindrical 1-1/2" Width, 2-1/2" deep junction box (included). Access to back of ceiling is not needed. If wall mounting, head should be no longer than 6".

Remote transformer and any FreeJack pendant or head (sold separately).

4" Round

Tech Lighting FreeJack Port with 4" Round Canopy 700FJFCP4R

FJ-Port w/4" round canopy

4" round canopies mount to a standard 4" junction box with round plaster ring (provided by electrician). 2" square canopy mounts to our special 2" square, 3.5" deep junction box (included).

Port with Canopy allows a Series of FreeJack elements to be powered from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Each FreeJack element can be used up to its specified wattage (see element and accessory for details).

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.

Remote transformer and any FreeJack pendant or head (sold separately).

Tech Lighting FreeJack Port with Square Canopy 700FJFCP2S, 700FJFCP4S

FJ-Port w/2" Square Canopy
FJ-Port w/4" Square Canopy

2" square canopy mounts to our special 2" square, 3.5" deep junction box (included).

4" square canopies mount to a standard 4" junction box with round plaster ring (provided by electrician).

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.

Remote transformer and any FreeJack pendant or head (sold separately).

Ensu (shown with Liza pendant)

Ensu (shown with Crossroads pendant)

Tech Lighting 700WSENSU Ensu Wall Bracket

700WSENSU
700WSENSU 277
700WSENSU LED
700WSENSU LED277
Accomodates virtually any Tech Lighting low-voltage FreeJack pendant, sold separately.

Turn virtually any Tech Lighting low-voltage FreeJack pendant into a wall sconce. The integrated telescoping arm accommodates any pendant under 7.5 inches in diameter. The Ensu wall canopy can mount to either a 4" square electrical box with round plaster ring or an octagonal electrical box (not included). Includes low-voltage electronic transformer.

Finish: Antique Bronze, Chrome or Satin Nickel

Tech Lighting Bracket Adaptable Pendants
  Low Voltage Mini-Pendants P1
  Low Voltage Mini-Pendants P2
  Low Voltage Small Pendants P3
  Low Voltage Small Pendants P4

Ensu (shown with Alina pendant)

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Arm telescopes to accommodate virtually any Tech Lighting low-voltage FreeJack pendant.
Lock telescoping arm in place with allen key.
Run pendant cable through ring and plug into FreeJack port.

Recessed Can Adapter

Tech Lighting Recessed Can Adapter 700FJRCAD, 700FJRCAD-LED

FJ-Recessed can Adapter
12v 75w electronic transformer LED 12v 10w electronic transformer

Use to retrofit existing recessed down- lights for use with FreeJack elements. Includes transformer.

75 watt version dimmable with a standard Incandescent dimmer.

LED 10 watt version dimmable with low-voltage electronic dimmer. Mounts to any recessed can that is 6-1/4" to 6-1/2" in diameter and has "C" shaped hooks on the inside can w all.

Finish: Antique Bronze, Chrome, Satin Nickel, Black or White.

ETL listed for use with the following recessed canopies: Juno® IC2, IC22, TC2, and TC2R; Halo® H7T and H7RT; Cooper® H27RT; Capri (Thomas) Lighting® PR75ASIC/TPR75ASIC/DY6431; Progress Lighting® P7TG, P8-TG, P-8TG and PIO8-TG. Tech Lighting is not affiliated with, nor is it endorsed by, any of the companies listed above. Tech Lighting does not distribute any of the products listed above.

Track Adapters

Tech Lighting 700FJHASP, 700FJLISP FreeJack Track Adapter

700FJHASP_
Halo or Juno and Compatible
Choose Black or White

700FJLASP_
Lightolier and Compatible
Choose Black or White

Finish: Black or White
Voltage: 12v 75w electronic transformer LED 12v 60w electronic transformer

Allows FreeJack Heads or Pendants to be used on most popular 120 volt track lighting systems. Transformer concealed in black or white housing. Adapts to most popular track lighting systems. Compatible track systems include Juno®*,
Halo®*, and Lightolier®*.

*Tech Lighting is not affiliated with, nor is it endorsed by, any of the companies listed above. Tech Lighting does not distribute any of the products listed above. For use with any 12 Volt LED FreeJack pendant or head (sold separately).



Tech Lighting 700TTCHEDFJ, 700TT2CHEDFJ FreeJack T~Trak Track Adapter

TT-FreeJack Connector
TT2-FreeJack Connector

Single Circuit or 2-Circuit T-Trak
Finish: Satin Nickel or White.
Voltage: 12v 75w electronic transformer LED 12v 10w electronic transformer

Use to adapt any low-voltage FreeJack head or pendant to T~TRAK system. Order one T~TRAK
FreeJack Connector for each FreeJack head or pendant. Specify Single-Circuit T~TRAK or Two-Circuit T~TRAK. Includes transformer. 75 watt version dimmable with a standard Incandescent dimmer. 10 watt version dimmable with low-voltage electronic dimmer.

Tech Lighting T-Trak Monorail is a line voltage monorail system. Select straight and pre-bent rail sections to form circles or curves. All rail pieces are field-cuttable and field bendable up 3'. Can also be custom factory pre-bent.

Monorail System Connectors

Tech Lighting Monorail & 2-Circuit Monorail FreeJack Connector 700MOCHED, 700MO2CHED

MO-FJ connector

Use to connect any FreeJack pendant or light to any Tech Lighting Monorail system.

Single Circuit or 2-Circuit Monorail
Finish: Antique Bronze, Satin Nickel or Chrome.


Tech Lighting Wall Monorail FreeJack Connector 700WMOCHED

WMO-FJ Wall Monorail connector

Finish: Antique Bronze, Satin Nickel or Chrome.

Adapts any FreeJack head to Tech Lighting's Wall Monorail system. For Wall Monorail only.

  • Two-piece connector unscrews to install around Wall Monorail; FreeJack male connector fits into bottom and twists to tighten.
  • Any FreeJack head (sold separately).


Tech Lighting Kable Lite FreeJack Connector 700KABCO

700KABCO Kable Lite FreeJack Connector

Finish: Satin Nickel or Chrome.

For cable separations of 8" or less. May be field cut to desired separation (2" minimum).

Tech Lighting Line Voltage or Line/Low Voltage Multi-Pendants, Pendant Cluster Canopies, Track Adapters & Swag Hook

Multi-Port Canopies are available to hang up to 11 pendants, fixtures or both.

The canopies on this page are for Low Voltage pendants and fixtures. If you would like to mix line and low voltage or use only line voltage pendants and fixtures you may choose from any on this page.

Choose from a wide variety of single or multiple canopies.

  • Select one Single-Port Canopy for every light or pendant or choose a Multi-Port Canopy to hang up to 11 pendants, fixtures or both.
  • Choose a Single or Multi-Light Canopy.
  • Available for Line voltage, Low voltage or a mix of Line and Low voltage pendants.
  • Pendants are available in Incandescent, LED or Fluorescent.
  • Adapters are available to hang Incandescent, LED or Fluorescent pendants on standard track lighting.
  • If you are using LED heads or pendants, be sure to choose a canopy that is compatible with LED fixtures.

Tech Lighting FreeJack

The FreeJack system represents the ultimate in ease and versatility. Simply choose any FreeJack canopy and plug in any of our FreeJack compatible elements to create your own unique ceiling fixture.

Tech Lighting's Collection of canopies offers the ability to mount individual elements, or small groupings of elements to a single junction box. Create an intimate setting over a cozy restaurant booth with a single pendant, or place three colorful pendants in a row using our linear canopy to add sophistication to a dining room. Even create a chandelier-style fixture by choosing a three, four or five port canopy. FreeJack is also available in our Antique Bronze finish.

Select your Low-Voltage Heads or Low-Voltage Pendants. FreeJack includes Adapters so Tech Lighting Heads or Pendants can be used with a new or existing Juno®, Halo®, and Lightolier® style standard track system.

Retrofit an existing recessed downlights for use with Tech Lighting FreeJack heads and pendants using the Recessed Can Adapter.


See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
