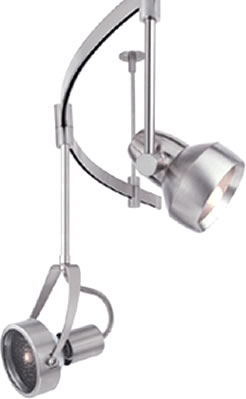

Tech Lighting T-Trak Line Voltage Monorail Track Lighting

T~TRAK, Tech Lighting's award winning, architectural, hand-bendable 120 volt track system.

  • Available as single-circuit or two-circuit which allows for two independent layers of light off the same system.
  • T~TRAK also includes our Power Jack Monopoint canopies.
  • A wide selection of line-voltage heads and pendants.
  • Adapters available to use Low-voltage heads and pendants.
  • Multiple lamping options to meet the needs of virtually any application.
  • Available single or 2-Circuit.

Design your rail.

  • Determine what you are trying to light.
  • Decide where heads or pendants should be to put the light where you want it.
  • Draw out your T-Trak run so it intersects the locations of all the heads and pendants and runs directly beneath the ceiling junction box that will power the system.
  • Determine if you will be using Single-Circuit T~TRAK or Two-Circuit T~TRAK then specify how many sections of track you'll need.
  • T-Trak can be shaped by hand to follow architectural details or to create an organic shape. Factory pre-bent shapes are also offered in several configurations.
  • Do you want your rail to be attached from the ceiling or the wall?
  • Decide how far down from the ceiling you want the system to drop.
  • T-Trak can curve horizontally and vertically.
  • Choose a power feed canopy of the appropriate length and style.
  • The maximum standard drop for T~TRAK is eight feet from the ceiling.
  • Add standoffs with connector to join sections of T~TRAK end to end while supporting the system.
  • Order one for each connection point between track sections. Select the appropriate length to match the specified drop for the system.
  • Add rigid standoffs without connector to support the system. Order one for the center of each 8' track section plus two for the ends of the run. This ensures support for T~TRAK every four feet. For especially curvy runs, order additional standoffs without connector to support peaks of curves and heavy heads and pendants, as required.
  • Select the appropriate length to match the specified drop for the system. Standoffs and power feed canopies are field-cuttable, so it's easy to achieve a custom drop length.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from an array Line Voltage Architectural Heads.
  • Add optional colorful and decorative accessories and functional optical controls.
  • T-Track Line Voltage Monorail Pendants
    Suspend these pendants from T-Trak, Tech Lighting's hand-bendable, field-cuttable line-voltage monorail track system.

(Or start with pendants, fixtures and accessories, then decide which layout will best support them.)

Tech Lighting T-Trak Line Voltage Track Lighting

Available as Components only. Although Tech Lighting T-Trak is not sold as kits, we would be happy to help you select everything you need.

Tech Lighting T-Trak Monorail is a line voltage monorail system. Select straight and pre-bent rail sections to form circles or curves. All rail pieces are field-cuttable and field bendable up 3'. Can also be custom factory pre-bent.

  • Straight
  • Field Bendable
  • Pre-bent "S" Curve
  • Pre-Bent 90° Curve

Both systems accomodate a wide selection of architectural heads and pendants with multiple lamping options for your specific application. T-Track line-voltage heads offer a broad selection of lamp options to suit a full range of applications. Coordinating Lighting is available.

Maximum capacity:

  • Single-Circuit or Two-Circuit Line-voltage track rated for 20 amps.
  • True two-circuit system available.
  • Each circuit has its own dedicated neutral for two separate switchable 20 amp circuits.

T-Trak Rail

Tech Lighting 700TTA, 700TT2A T-Trak Rail

Hand-bendable, field-cuttable Line Voltage Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end.

A hand-bendable, field-cuttable line-voltage track system. Single-Circuit T~TRAK is a track system rated for 20 amps and bends horizontally to a radius as small as 36".

Two-Circuit T~TRAK is a two-circuit track system with each circuit having its own dedicated neutral for two separately switchable 20 amp circuits and bends horizontally to a radius as small as 60".

Each section of track is shipped with two end caps to cover the open ends of the track. Order additional end caps (p. 543) if cutting and separating track sections.

Finish: Satin Nickel or White

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Single Circuit
700TTA48S 48" Satin Nickel
700TTA48W 48" White
700TTA96S 96" Satin Nickel
700TTA96W 96" White
Two Circuit
700TT2A48S 48" Satin Nickel
700TT2A48W 48" White
700TT2A96S 96" Satin Nickel
700TT2A96W 96" White

Tech Lighting Pre-bent T~Trak

T~TRAK bends very easily by hand to almost any imaginable shape, but we also offer the following pre-bent track options to make the most common bends perfectly shaped and even easier to install.

Pre-bent S-Curve T~Trak
700TTBHSC60, 700TT2BHSC60

T~TRAK pre-bent into a horizontal S curve.

60" Radius (1.5 m)
9.5" Width (.2 m)
92" Linear Length (2.4 m)



Pre-bent 90° Curve T~Trak
700TTBH90, 700TT2BH90

Horizontal 90° curves are sold by radius, or the distance from the center of a circle to the outside edge. Join four 90° curves to create a circle with a diameter (overall width) equal to twice the specified radius.

Radius:
36" radius*
48" radius*
60" radius
* Single-Circuit T~Trak only

Finish: Satin Nickel or White



Tech Lighting 700TTCCAP, 700TT2CCAP T-Trak End Cap

All sections of track are shipped with the required end cap on each end of the track. Order separately for each open end of the track if cutting and separating track sections.

Finish: Satin Nickel or White

Connectors & Standoffs

Tech Lighting 700TTCFXH, 700TT2CFXH T-Trak Flexible Connector

This connector joins sections of track together end to end at desired sharp horizontal angle (90° to 270°). Order two additional rigid standoffs without connector (below) to support track near corner.

Finish: Satin Nickel or White

Standoffs

Use standoff supports every four feet of a T~TRAK™ run. For best appearance, place the last standoff 4-6" from the end of the run, and place standoffs symmetrically, alternating between standoffs with connector where track sections join together and standoffs without connector in the center of each 8' track section.

Tech Lighting 700TTSCC, IC, 700TT2SCC, IC T-Trak Rigid Standoff with Connector

The field-cuttable rigid standoff with connector is used to join sections of track together end to end while supporting the system.
Order one for each connection point between track sections. Use conductive type to continue power through connection. Use isolating type to isolate multiple circuits on one continuous run. Select the appropriate length to match the specified drop for the system.

Finish: Satin Nickel or White
Lengths: 2", 6", 12", 24", 36", 48", 96"
Field-cuttable



Tech Lighting 700TTS, 700TT2S T-Trak Rigid Standoff without Connector

The field-cuttable rigid standoff without connector is used in the center of each 8' track section and at each end of the run. For especially curvy runs, order additional standoffs without connector to support peaks of curves and heavy elements, as required. Select the appropriate length to match the specified drop for the system.

Finish: Satin Nickel or White
Lengths: 2", 6", 12", 24", 36", 48", 96"
Field-cuttable



Tech Lighting 700TTPVLT, 700TT2PVLT T-Trak Power Vault Adapter

Installs to any standard power feed canopy or Single-Circuit T~TRAK power feed canopy with "L" Connector (sold separately) and adjusts to any angle to position track parallel to the floor. Not compatible with Power Feed Canopies that use current limiters.

Finish: Satin Nickel or White

To install a T~TRAK system to a vaulted ceiling, add a power vault adapter to each power feed canopy, and add a standoff vault adapter to each standoff (with and without connector).



Tech Lighting 700TTSVLT, 700TT2SVLT T-Trak Standoff Vault Adapter

Installs between the rigid or Adjustable standoff (with and without connector, sold separately) and the ceiling to position track parallel to the floor.

Finish: Satin Nickel or White

To install a T~TRAK system to a vaulted ceiling, add a power vault adapter to each power feed canopy, and add a standoff vault adapter to each standoff (with and without connector).



Tech Lighting 700TTSADJ, 700TT2SADJ T-Trak Adjustable Standoff without Connector

The Adjustable standoff without connector is used in the center of a track section or at the end of a run. A wire grip allows you to easily shorten or lengthen the cable to size it for use.

Length: 12' of cable or 30' of cable
Finish: Satin Nickel or White

Adjustable Standoffs
To ease T~TRAK installation in spaces with high and / or uneven ceiling surfaces, use Adjustable standoffs to easily adjust height and level of the system. Adjustable standoffs are not recommended on curvy runs or on runs with heavy heads, such as die cast ceramic metal halide heads.



Tech Lighting 700TTSCC or ICADJ, 700TT2SCC or ICADJ T-Trak Adjustable Standoff with Connector

The Adjustable standoff with connector is used to join sections of track together end to end while supporting the system. A wire grip allows you to easily shorten or lengthen the cable to size it for use. Use conductive type to continue power through connection. Use isolating type to isolate multiple circuits on one continuous run.

Length: 12' of cable or 30' of cable
Finish: Satin Nickel or White

Adjustable Standoffs
To ease T~TRAK installation in spaces with high and / or uneven ceiling surfaces, use Adjustable standoffs to easily adjust height and level of the system. Adjustable standoffs are not recommended on curvy runs or on runs with heavy heads, such as die cast ceramic metal halide heads.



Tech Lighting 700TTSX, T or L T-Trak Standoff with Connector

To join sections of Single-Circuit T~TRAK together into an "X", "T", or "L" configuration, use the field-cuttable rigid standoff with conductive "X", "T", or "L" connector. Select the appropriate length to match the specified drop for the system. Conductive only.

Finish: Satin Nickel or White
Lengths: 2", 6", 12", 24", 36", 48", 96"
Field-cuttable



Tech Lighting 700TTTBAR, 700TT2TBAR T-Trak Standoff T-Bar Drop Ceiling Connector

To install a T~TRAK system to a T-bar drop ceiling, add a T-bar connector to every standoff (with and without connector, sold separately). The T-bar clip twists into the slat. (Use only if local elec trical codes allow). Specify 15/16" or 9/16" slat.

Color: Black or White
Finish: Satin Nickel or White
Slat: 15/16" or 9/16"
Field-cuttable

Wall Connectors & Standoffs

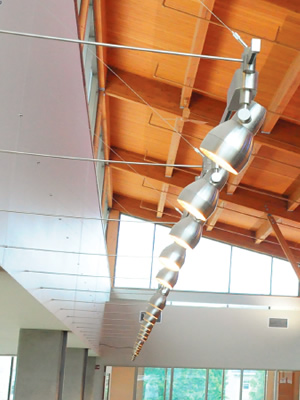

T-Trak Line Voltage Wall Monorail

Tech Lighting T-TrakLine Voltage Wall Monorail

Tech Lighting Wall T-Trak Monorail uses the same rail, with wall mounts.

Installing t~trak™ to cantilever from a wall: Use support outside rigger to support a T~TRAK system 36" off of wall. Field-cuttable.



Tech Lighting 700TTSORG, 700TT2SORG T-Trak Support Outside Rigger without Connector

Extends from the wall to support track. Use every four feet of run to support system in the center of a track or at the end of a run.

Finish: Satin Nickel or White



Tech Lighting 700TTSORGCC or IC, 700TT2SORGCC or IC T-Trak Support Outside Rigger with Connector

Extends from the wall to support track. Use every four feet of run to support system while joining sections of track together end to end.

Finish: Satin Nickel or White



Tech Lighting 700TTPORGCC Power Outside Rigger with Connector

Use power outside rigger to support and power a T~TRAK system 36" off of wall. Field-cuttable. For use on Single-Circuit T~TRAK system only. To power a cantilevered Two-Circuit T~TRAK run see power feed options.

Extends from the wall to support and power feed track. Includes 4" round canopy. Use to power system while joining sections of track together end to end.

Finish: Satin Nickel or White

Power Feed Canopies

Tech Lighting T-Trak Power Feed Canopies

Standard power feed canopies mount to a ceiling junction box with round plaster ring located directly above the track.
Select the appropriate length to match the specified drop for the system. Lengths longer than 2" are field-cuttable.

Finish: Satin Nickel or White



Tech Lighting 700TTP4C, 700TT2P4C T-Trak 4" Round Power Feed Canopy without Connector

Mounts to a standard 4" ceiling junction box with round plaster ring (provided by electrician).
Use to power system from any point along track section.

Length: 2", 6", 12", 24", 36", 48", 96"
Current Limiter: without, 2.5 amp, 4 amp, 6 amp, 8 amp, 10 amp, 12 amp, 14 amp, 16 amp, 18 amp
Finish: Satin Nickel or White



Tech Lighting 700TTP4CCC, 700TT2P4CCC T-Trak 4" Round Power Feed Canopy with Connector

Mounts to a standard 4" ceiling junction box with round plaster ring (provided by electrician).
Use to power system while joining sections of track together end to end.

Length: 2", 6", 12", 24", 36", 48", 96"
Current Limiter: without, 2.5 amp, 4 amp, 6 amp, 8 amp, 10 amp, 12 amp, 14 amp, 16 amp, 18 amp
Finish: Satin Nickel or White



Tech Lighting 700TTP4CL T-Trak 4" Round Power Feed Canopy with L Connector

"L" power feed canopies mount to a ceiling junction box located directly above the Single-Circuit T~TRAK run and join sections of track together into an "L" configuration. Select the appropriate length to match the specified drop for the system. Lengths longer than 2" are field-cuttable. For projects designed to meet energy efficiency standards determine the maximum amperage required on the circuit and specify the correct current limiter.

Mounts to a standard 4" ceiling junction box with round plaster ring (provided by electrician).

Length: 2", 6", 12", 24", 36", 48", 96"
Current Limiter: without, 2.5 amp, 4 amp, 6 amp, 8 amp, 10 amp, 12 amp, 14 amp, 16 amp, 18 amp
Finish: Satin Nickel or White



Tech Lighting T-Trak Flexible Power Feed with Canopy

Flexible power feeds with canopy bring power from a ceiling or wall mounted junction box to the track when the junction box is not located directly above or at the end of the tr ack. Each includes 12' of field-cuttable flexible conduit.

Available in two styles:

  • Center feed can be used to power the track anywhere within the run
  • End feed powers the track from the end of the run.

For projects designed to meet energy efficiency standards determine the maximum amperage required on the circuit and specify the correct current limiter.

Finish: Satin Nickel or White



Tech Lighting 700TTP4C, 700TT2P4C T-Trak Flexible Power Feed with 4" Round Canopy

Mounts to a standard 4" junction box with round plaster ring.

Feed: Center Feed or End Feed
Current Limiter: without, 2.5 amp, 4 amp, 6 amp, 8 amp, 10 amp, 12 amp, 14 amp, 16 amp, 18 amp
Finish: Satin Nickel or White



Tech Lighting 700TTP4CD, 700TT2P4CD T-Trak Flexible 4" Round Direct End Power Feed Canopy

Mounts to a standard 4" junction box with round plaster ring.

Finish: Satin Nickel or White



Current Limiter

Current Limiter

For projects designed to meet energy efficiency standards determine the maximum amperage required on the circuit and specify the correct current limiter.

How do I design my own T-Trak System?

1st: Design Your T-Trak System

Elements (Pendants, Heads and Functional Art):
Choose your elements.
Choose Accessories and Optical Controls, if required or desired.
Choose lamps that do not exceed maximum wattage of element or accessory.
(These may be included, we can help you with this.)

Finish
Choose finish of system and make sure all components
are specified as such.

Design
Use a scaled drawing as a reference.

Measure
Measure the Length of your T-Trak run
Determine the quantity and Length of T-Trak pieces required.
Determine number of Rigid Standoffs with Connector, one for each connection point between track sections.
Determine number of Rigid Standoffs without Connector, one for the center of each 8' track section plus two for the ends of the run.

Does the run include a sharp angle or turn?
If so, specify a Flexible Connector to make the turn and add 2 Rigid Standoffs without Connector.

Would you like the track to be custom bent at the factory? Let us know and we will get a quote for you.

2nd: Add Power and Hardware to Complete the System

Power Feed Canopy:
Determine how far below the ceiling the system will be dropped.

Choose:
Type of Power Feed
Length of Drop
If using a power feed canopy "with connector" you can reduce your standoff with connector count (on previous page) by one.

Mounting:
Select Rigid Standoffs with Connector that match the drop of the Power Feed Canopy.

Select Rigid Standoffs without Connector that match the drop of the Power Feed Canopy.

Is the ceiling vaulted? If so specify one Power Vault Adapter for each Power Feed Canopy.

Then specify one Standoff Vault Adapter for each Standoff.

This outline covers only the most common T-Trak applications, but T-Trak can do almost anything.

Checklist
Make sure your Bill of Materials includes:

Power Feed Canopy without connector if powering from the center of a section of track; with connector if joining sections of track

Standoffs with Connector one for each connection point between track sections

Standoffs without Connector one for the center of each 8' track section plus two for the ends
of the run

T-Trak

Elements

Accessories and Optical Controls

Lamps—if not included with elements; lamps must not exceed maximum wattage of element
or accessory
