Tech Lighting Monorail
Low Voltage Monorail
Tech Lighting Monorail Adaptable Pendants Line Voltage Monorail Monorail Low Voltage Monorail Line Voltage Monorail Cable Lighting Low Voltage Lights Line Voltage Lights Accessories

Tech Lighting Monorail

Tech Lighting Monorail with 2" Aero Heads with Amber Round Glass Shield Accessories and Melrose Pendants in Tahoe Pine Amber glass

Monorail in Satin Nickel with Pivot Heads and Amber Round Glass Shields

Customize Your Tech Lighting Monorail System

Tech Lighting Monorail
Single Circuit & 2-Circuit Monorail System

Tech Lighting Monorail low-voltage rail system can be customized for large or small spaces with a wide variety of angular configurations or bent into soft curves for more fluid designs. It is available in straight, curved or circle kits with everything you need, then customize with any spotlights, pendants or unique art lighting and accessories.

Tech Lighting 2-Circuit Monorail System allows independent switching of two separate circuits so you can combine a series of pendants and directional heads on the same expanse of rail and still control them independently. This is ideal when layers of light are desired to create both ambient and directional or task lighting in one specific area.

Tech Lighting Wall Monorail System is the ideal choice for highlighting wall art or signage or avoiding interference of special ceiling features such as tin ceilings, murals, or tray ceilings. Wall monorail is a versatile solution for installing a series of low-voltage directional heads along a wall.

Design your rail.

  • Determine what you want to light.
  • Decide where track heads, pendants or both will be placed to direct light where you want it.
  • Design the Monorail run, connecting the lights.
    Monorail can be shaped to follow room architecture or create an organic shape.
    You can sketch out your room on paper. Draw in your lights, then decide how you want to design the track to suspend them.
    You could use string to lay out your design on the floor to determine your length, especially if you have an especially curvy run.

    Rail is available in connectable two, four or eight foot sections to be bent in the field to a radius as small as 6" and vertically to a radius as small as 24" or used as a straight section.
    Precurved pieces, prebent S-curves and circles are available in a variety of sizes.
    All rail pieces are field-cuttable and bendable.
  • Connectors allow monorail to make sharp angles or join in a "T" or "X."
  • Dead-End connectors allow you to switch and dim sections of rail separately.
  • Finish your rail with end caps.
  • Choose a finish; Antique Bronze, Chrome, Satin Nickel.
  • Or choose a kit for a lower cost simple setup.

Determine your mounting.

  • Determine how far from the ceiling you would you like your rail to run.
    Monorail can be installed nearly flush to the ceiling. Rigid standoffs suspend track up to 96". Adjustable cable standoffs hang up to 30'.
  • Rail can be curved horizontally or vertically, to run up and down.
  • Rigid or cable suspensions mount to flat ceiling, T-Bar ceiling using a clip or sloped ceilings using a Standoff Vault Adapter.
  • Use a support every 3 feet.
  • The total number of supports depends on the shape of the track layout.
  • A rigid power feed may count as a support.
  • Systems with very unique shapes or many pendants may require additional supports.
  • For best appearance, place the last standoff 4-6" from the end of the rail and place standoffs symmetrically.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from an array of low voltage track heads, pendants and whimsical art lights.
  • Add optional colorful and decorative accessories and functional optical controls.

Select your transformer.

  • Add up the wattage from the lights you have chosen.
  • Choose 12 or 24 volt.
  • Select a visible surface mount transformer or a hidden remote transformer with power feed canopy.
  • Surface mount transformers install directly to a standard junction box.
    Smaller electronic surface mount transformers are well suited for small runs.
    Magnetic surface mount tranformers have a higher wattage capacity.
  • Remote mount magnetic transformers can be installed further away, in an attic or closet.
  • Magnetic transformers minimize any voltage drop potential.
  • Select your power feed if you are going to use a remote transformer.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Monorail Kits

Tech Lighting 800RAL28 Onyx Rail Complete Monorail Kit

800RAL28NXZ
TLA-RAIL KIT 28IN Onyx Antique Bronze

Includes two 3" natural Onyx heads (20 watts max. each) with two 20 watt MR16 lamps and two natural Onyx pendants with two 12 volt, 20 watt bi-pin lamps. 120 volt in / 12 volt out 100 watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician); Rail drops 3.5" from the ceiling with matching standoffs. The kit may be dimmed with a standard incandescent dimmer. Bronze finish only.

Available Finishes: Antique Bronze

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Tech Lighting 800RAL5MK Spire Complete 5-Head Monorail Kit

800RAL5MK

Spire Rail Kit
Includes five 3" minimalist Spire heads (20 watts max. each) and five 12 volt, 20 watt MR16 lamps. 120 volt in / 12 volt out 100 watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician); Rail drops 3.5" from the ceiling with matching standoffs. The kit may be dimmed with a standard incandescent dimmer. Matte Nickel finish only.

Available Finishes: Matte Nickel

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Tech Lighting 800RAL5R Revival Complete 5-Head Monorail Kit

800RAL5RCP

Revival Rail Kit 5 Head
100 Watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician). Rail drops 3.5" from the ceiling. Includes five 3" mission-inspired Revival heads (20 Watts max each) with crisp prismatic shades in clear. The kit may be dimmed with a standard incandescent dimmer.

Available Finishes: Polished Nickel

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Tech Lighting 800RAL5FC Revival Complete 5-Head Monorail Kit

800RAL5FCN

Revival Rail Kit 5 Head
100 Watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician). Rail drops 3.5" from the ceiling. Includes five 3" mission-inspired Revival heads (20 Watts max each) with crisp prismatic shades in clear. The kit may be dimmed with a standard incandescent dimmer.

Available Finishes: Polished Nickel

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Tech Lighting/Tiella 800RAL5FC Focus Rail 5 Head Complete Monorail Kit

800RAL5FCN
TLA-Focus Rail Kit 5 Head, Matte Nickel

100 Watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician). Rail drops 3.5" from the ceiling. Includes five classic Focus heads (20 Watts max each) that rotate 360° around stem and pivot 270°. The kit may be dimmed with a standard incandescent dimmer.

Available Finish: Matte Nickel

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Monorail Sample Layout Sketches
To get the most out of your new rail system, make a sketch of your space and how the rail will look on the ceiling.

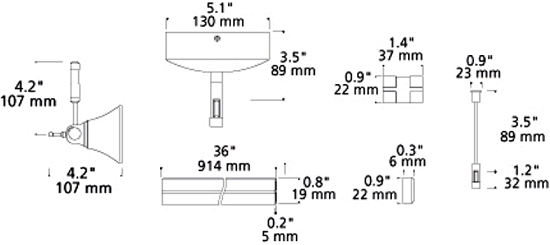

Tech Lighting/Tiella 800RAL5C Casual Rail 5 Head Complete Monorail Kit

800RAL5CWZ
TLA-Casual Rail Kit 5 Head, Antique Bronze

100 Watt surface transformer mounts to a standard 4" square junction box with round plaster ring (provided by electrician). Rail drops 3.5" from the ceiling. Includes five 3" Casual heads (20 Watts max each) in white seeded case glass shades. The kit may be dimmed with a standard incandescent dimmer.

Available Finish: Antique Bronze

This system may be dimmed with a standard incandescent dimmer.
Important: Combined bulb wattage can not exceed 100 watts

Monorail Sample Layout Sketches
To get the most out of your new rail system, make a sketch of your space and how the rail will look on the ceiling.

Start with a Monorail Kit
Tech Lighting 700MOKTSM30E 300 watt Mini Surface Transformer Monorail Kit shown
Then add any lights (not included). Further customize your design with additional Rail, Standoffs and Connectors to create longer runs or create angles.

Tech Lighting 700MOKTS150 150 watt Surface Transformer Monorail Kit

700MOKTS150 Monorail Surface Kit 150w Archive List Price from:

Magnetic Surface Transformer mounts to a standard 4" junction box with round plaster ring (provided by electrician), rail drops 3.6" from ceiling.
Add up to three 50 watt elements or up to four 35 or 37 watt elements.

Choose any lights to complete you custom Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.



Tech Lighting 700MOKTS300 300 watt Surface Transformer Monorail Kit

700MOKTS300 Monorail Surface Kit 300w Archive List Price from:

Magnetic Surface Transformer mounts to a standard 4" junction box with round plaster ring (provided by electrician), rail drops 4.8" from ceiling.
Add up to six 50 watt elements or up to eight 35 or 37 watt elements.

Choose any lights to complete you custom Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.



Tech Lighting 700MOKTSM30E 300 watt Mini Surface Transformer Monorail Kit

700MOKTSM30E Monorail Surface Kit 300W Electronic Archive List Price from:

Mini Electronic Transformer mounts to a standard 4" junction box with round plaster plate (provided by electrician), rail drops 2" from the ceiling.
Add up to six 50 watt elements or up to eight 35 or 37 watt elements.

Choose any lights to complete you custom Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.



Tech Lighting 700MOKTS301E 300 watt Pass-Through Surface Transformer Monorail Kit

700MOKTS301E MO PRT Transformer Kit 300W Electronic Archive List Price

Pass-Through Electronic Transformer mounts to a standard 4" junction box with round plaster plate (provided by electrician), rail drops 1" from the ceiling.
Add up to six 50 watt elements or up t o eight 35 or 37 watt elements.

Choose any lights to complete you custom Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.



Tech Lighting 700MOKTA300 300 watt Remote Transformer Monorail Kit

700MOKTA300 Monorail Remote Kit 300w Archive List Price from:

Magnetic Remote Transformer installs in an accessible location behind the ceiling or wall. Canopy mounts to a standard 4" junction box with round plaster ring (provided by electrician), rail drops 2" from ceiling.
Add up to six 50 watt elements or up to eight 35 or 37 watt elements.

Choose any lights to complete you custom Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.

All Monorail Kits include:

8' long Monorail
Hand-bendable, field-cuttable Monorail in Antique Brass with Brown Insulator, Chrome or Satin Nickel with Clear Insulator.

Decorative End Caps
One set of decorative end caps. Decorative end caps fit into ends of Wall Monorail run for a finished look.

Two Rigid Monorail Standoffs
Two rigid standoffs. Size will vary
depending on kit.

Transformer
12 volt 150 watt or 300 watt Magnetic Surface Transformer with End Power Feed or or 300 watt Magnetic Remote Transformer with Power Feed.

Start with a Wall Monorail Kit
Then add any lights (not included)
Further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.

Tech Lighting 700WMKTA300 Wall Monorail Kits

Simplify your design by starting with a Tech Lighting Wall Monorail Kit.

700WMKTA300 Wall Monorail Remote 300w Archive List Price from:

Choose any lights to complete you custom Wall Monorail setup. You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.

All Wall Monorail Kits include:

8' long Wall Monorail
Hand-bendable, field-cuttable Wall Monorail in Antique Brass with Brown Insulator, Chrome or Satin Nickel with Clear Insulator.

Decorative End Caps
One set of decorative end caps. Decorative end caps fit into ends of Wall Monorail run for a finished look.

Three Wall Monorail Standoffs
Positions rail 1" from the wall. Use standoff supports every three feet of Wall Monorail run and at corners. Standoffs can be positioned to cover points where rails are joined.

12 volt 300 Watt Plug-in Magnetic Remote Transformer with End Power Feed
12 volt 300 watt plug-in magnetic remote transformer with end power feed with 16' cord.

Rail

Tech Lighting 700MOA Monorail Rail

700MOA24 Monorail 24"
700MOA48
Monorail 48"
700MOA96
Monorail 96"

Hand-bendable, field-cuttable Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails.

Standard Monorail bends horizontally to a radius as small as 6" and vertically to a radius as small as 24".

  • Antique Bronze
    A darker finish designed to simulate aged Bronze
  • Chrome
    Similar to a polished nickel with a slightly cooler tone
  • Satin Nickel
    A brushed nickel similar in appearance to brushed stainless steel

Plastic Separater is available in Brown or Clear



Tech Lighting 700MOBH90 Curved Monorail Rail

Monorail 90° Horizontal Curve
700MOBH9012
12"
700MOBH9018
18"
700MOBH9024
24"
700MOBH9036
36"
700MOBH9048
48"
700MOBH9060
60"

Monorail bends very easily by hand to almost any imaginable shape, but the pre-bent 90° curve and S curve make Monorail even easier to install.

Horizontal 90° curves are sold by radius, or the distance from the center of the circle to the outside edge. Join four 90° curves to create a circle with a width (overall width) equal to twice the specified radius. Rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails.



Tech Lighting Pre-bent Horizontal S-curve Monorail Rail

700MOBHSC60 Horiz S-Curve

Monorail pre-bent into a horizontal S curve. Consult the drawing for approximate dimensions. For a factory bend not shown, get a custom quotation. For custom factory bends, provide degree and radius of curve.
Rated for 300 watts at 12 volts, 600 watts at 24 volts.
Each piece of rail is shipped with conductive connectors to join rail pieces end to end.
Order additional connectors if cutting and rejoining rails.

  • Antique Bronze
    A darker finish designed to simulate aged Bronze
  • Chrome
    Similar to a polished nickel with a slightly cooler tone
  • Satin Nickel
    A brushed nickel similar in appearance to brushed stainless steel

Plastic Separater is available in Brown or Clear

Connectors

Tech Lighting 700MOCCN Monorail Conductive Connectors

700MOCCN Monorail Conductive Connectors ,

Conductive connectors join sections of rail together end to end and are included with all Monorail piec es. Order separately if cutting and rejoining rails. Pair.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCIN Monorail Isolating Connectors

700MOCIN Monorail Isolating Connectors

Isolating connectors join sections of rail and isolate power feeds from each other. Two common uses are in runs using more than 300w or in runs over 30ft where two power feeds are required to avoid voltage drop. All dual-feed canopies and dual-feed surface transformers are shipped with isolating connectors; order additional if required by layout. Pair.



Tech Lighting 700MOCFXHC Monorail Flexible Connectors

700MOCFXHC Monorail Flexible Connectors ,

These conductive connectors join sections of rail together end to end at desired sharp horizontal angle. Pair.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCFXVC Monorail Flexible Vertical Connectors

700MOCFXVC Monorail Flexible Vertical Connectors

These conductive connectors join sections of rail together end to end at desired vertical angle. Pair.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCTT Monorail T Connector

700MOCTT Monorail T Connector clear

Use the special "T" connector to make a clean splice into a straight horizontal rail run. These connectors are conductive, so you may power the system from any of the runs.

The "T" connector joins three pieces of Monorail to form a "T".
At least one standoff must be located near the connector.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCTX Monorail X Connector

700MOCTX Monorail X Connector

Use the special " X" connector to make a clean splice into a straight horizontal rail run. These connectors are conductive, so you may power the system from any of the runs.

The "X" connector joins four pieces of Monorail to form an "X".
At least one standoff must be loca ted near the connector.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCCAP Monorail End Caps

700MOCCAP Monorail End Caps ,

Decorative end caps fit into ends of Monorail run for a finished look. Pair; order one pair for each end.

Finish: Antique Bronze, Chrome or Satin Nickel

Standoffs

Tech Lighting 700MOS Monorail Rigid Standoff

700MOS MO-Rigid Standoff

The field-cuttable rigid standoff is recommended for curvy runs or runs with heavier Heads, Pendants or Functional Art Lights, such as glass pendants. Rigid standoffs are compatible with various power feed options.

Use a support every 3 feet. For best appearance, place the last standoff 4-6" from the end of the rail and place standoffs symmetrically.

Finish: Antique Bronze, Chrome or Satin Nickel

Determine the Appropriate Standoff

1" (1.0)*
2" (1.9)*
3" (3.6)*
4" (4.8)*
5" (5.8)*
6"*
12"*
24"*
36"*
48"*
96"*
700mos01
700mos02
700mos03
700mos04
700mos05
700mos06
700mos12
700mos24
700mos36
700mos48
700mos96
(Z, C, or S)**
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
(Z, C, or S)
* actual length from ceiling to top of rail
** May only be used with monorail low-profile power feed canopy, monorail low-profile remodel recessed transformer or pass-through transformer. Not compatible with standoff vault adapter. not field-cuttable.


Tech Lighting 700MOSADJ Monorail Adjustable Cable Standoff

700MOSADJ 12'
700MOSADJ 30'

The adjustable standoff 's cable virtually disappears for a clean and elegant look. It is best us ed on fairly straight runs with a drop greater than 6". A wire grip allows you to easily shorten or lengthen the cable to size it for use.

Finish: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOCVLT Monorail Vaulted Ceiling Standoff Adapter

700MOCVLT MO-standoff vault Adapter

To install a Monorail system to a vaulted ceiling, add a power vault adapter to each power feed and add a standoff vault adapter to each standoff.

Installs between the rigid or adjustable standoff (sold separately) and the ceiling to position rail parallel to the floor. Includes several rod lengths to achieve the proper pitch when used with a sur face transformer.



Tech Lighting 700MOTBAR9C, 700MOTBARC Monorail T-bar Ceiling Adapter Clip

700MOTBARC T-bar clip 9/16 inch ,
700MOTBAR9C
T-bar clip 15/16 inch

Specify 15/16" or 9/16" slat.

To install a Monorail system to a T-bar drop ceiling, add a T-bar connector to every standoff (sold separately). The T-bar clip twists into the slat. (Use only if local elec trical codes allow).

Wall Standoffs to Cantilever from a Wall

There are two types of outside riggers—one for power, one for support. Both types of outside rigger extend 36" from the wall and are field-cuttable.

Wall Standoffs to Cantilever from a Wall


Tech Lighting 700MOSORG Monorail Support Outside Rigger

700MOSORG Monorail Support Outside Rigger

Extends from the wall, to support the rail. Use every three feet of run.

Tech Lighting 700MOPORG2 Monorail Power Outside Rigger

700MOPORG2 Monorail Power Outside Rigger ,

Extends 36" from the wall to support and power rail from a remote transformer. Field-cuttable. Includes 4" round canopy and 2" square canopy.

Finish: Antique Bronze, Chrome or Satin Nickel

Surface Mounted Transformers

Tech Lighting 700MOPRT301ES Monorail Pass-Through Surface Transformer

700MOPRT301ES MO PRT 300w Electr, Satin Nickel 120/12
700MOPRT301ES-LED MO PRT 300w Electr, Satin Nickel 120/12-LED

Finishes: Antique Bronze or Satin Nickel

Sleek, minimalist design meets easy installation. The Monorail practically hugs the ceiling. The Pass-Through combines a sleek new design with the ability to use 1" standoffs and ease of installation...More Details on the Transformer Page...>

This single-feed pass-through surface transformer converts standard 120 line voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system.

It can power lamps totaling up to 300 watts and features a fast acting secondary short circuit and overload protection that will safely turn the system off should a short occur. Once the short has been removed, the unit can be reset by simply flipping the wall switch off and on.

  • First, the installer mounts and wires the upper canopy in much the same way a standard line-voltage pendant would be mounted.
  • Second, the installer connects the rail connector to the rail.
  • Finally, the installer snaps the lower canopy into the upper canopy without the need for any tools.
    The electrical connections are made automatically due to the mating components.
                    It's that easy.

The transformer bay is housed completely in the bottom canopy, so should there be any problems with the transformer at any time, only the bottom canopy would need to be removed. The upper canopy and the entire Monorail run can remain in place.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Tech Lighting 700MOPRT30E Monorail Low-Profile Transformer

700MOPRT30E
700MOPRT30ES-LED

Sleek, minimalist design meets easy installation. For use when a longer drop is preferred. The Low-Profile combines a sleek new design with the ability to use 4" or longer standoffs and ease of installation.

This single-feed low-prifle surface transformer converts standard 120 line voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system.

It can power lamps totaling up to 300 watts and features a fast acting secondary short circuit and overload protection that will safely turn the system off should a short occur. Once the short has been removed, the unit can be reset by simply flipping the wall switch off and on.

  • First, the installer mounts and wires the upper canopy in much the same way a standard line-voltage pendant would be mounted.
  • Second, the installer snaps the lower canopy into the upper canopy without the need for any tools. The electrical connections are made automatically due to the mating components.
  • Finally the installer attaches the rail to the single integral power feed.
                    It's that easy.

The transformer bay is housed completely in the bottom canopy, so should there be any problems with the transformer at any time, only the bottom canopy would need to be removed. The upper canopy can remain in place.

Finishes: Antique Bronze or Satin Nickel

Tech Lighting 700MOMRT30ES Monorail Mini Surface Transformer

700MOMRT30ES
700MOMRT30ES-LED

The Mini answers the question, how small can it be? At 1.4 inches deep and 5.25 inches in diameter, it is the smallest 300 watt surface Monorail transformer in the industry. It installs similarly to Tech Lighting's existing family of 300 watt transformers and practically disappears on the Monorail system.

The transformer is concealed inside a small decorative housing with a single integral power feed and fast acting secondary short circuit and overload protection that will safely turn the system off should a short occur. Once the short has been removed, the unit can be reset by simply flipping the wall switch off and on.

Truly minimalist design and the industry's smallest 300 watt surface transformer.
Constructed of die-cast aluminum.
Mounts to a standard 4" ceiling junction box with round plaster ring (provided by electrician).
Can be used with 2" or greater Standoffs and a Power Extender.

Finishes: Antique Bronze or Satin Nickel

Single-Feed options

Use with one single-feed remote transformer.

Tech Lighting 700MOPCEN60E-LED LED Monorail Center Power Feed 60w Transformer

700MOPCEN60E-LED LED Monorail Center Power Feed 60w Transformer
LED Compatible

Can be used anywhere within the run when the canopy cannot be installed directly above the Monorail or directly behind the Wall Monorail run. This power feed includes a removable 4" round canopy with 12' of field-cuttable softwire leads and a 60 watt 120 volt input/12 volt LED output electronic transformer that fits in junction box.

Finishes: Bronze, Black, Chrome, Satin Nickel, White

Surface Mount Monorail Transformers

All surface transformers mount to a standard 4" ceiling junction box with round plaster ring (provided by electrician).

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Single Feed Surface Mount Monorail Transformers
LED
Compatible
1 x 120v
12v
1 x 60 watts**
electronic ac
700MOFRT60EB-LED
700MOFRT60EC-LED
700MOFRT60ES-LED
700MOFRT60EW-LED
700MOFRT60EZ-LED
Monorail Flush Transformer 60w-LED 120/12
LED
Compatible
1 x 120v
12v
1 x 60 watts**
electronic ac
700MOSRT60EB-LED
700MOSRT60EC-LED
700MOSRT60ES-LED
700MOSRT60EW-LED
700MOSRT60EZ-LED
Monorail SRT 60W Electronic -LED 120v/12v
LED
Compatible
1 x 120v
12v
1 x 75 watts**
magnetic ac
700MOSRT75DB
700MOSRT75DC
700MOSRT75DS
700MOSRT75DW
700MOSRT75DZ
Monorail SRT 75W Magnetic 120v/12v
LED
Compatible
1 x 120v
12v
1 x 100 watts**
electronic ac
700MOSRT100EB-LED
700MOSRT100EC-LED
700MOSRT100ES-LED
700MOSRT100EW-LED
700MOSRT100EZ-LED
Monorail SRT 100W Electronic -LED 120v/12v
LED
Compatible
1 x 120v
12v
1 x 150 watts**
magnetic ac
700MOSRT15DB
700MOSRT15DC
700MOSRT15DS
700MOSRT15DW
700MOSRT15DZ
Monorail SRT 150W Magnetic 120v/12v
  1 x 120v
12v
1 x 150 watts
electronic ac
700MOSRT15EB
700MOSRT15EC
700MOSRT15ES
700MOSRT15EW
700MOSRT15EZ
Monorail SRT 150W Electronic 120v/12v
LED
Compatible
1 x 120v
12v
1 x 300 watts**
magnetic ac
700MOSRT30DB
700MOSRT30DC
700MOSRT30DS
700MOSRT30DW
700MOSRT30DZ
Monorail SRT 300W Magnetic 120v/12v
  1 x 120v
12v
1 x 300 watts
electronic dc
700MOSRT30EB
700MOSRT30EC
700MOSRT30ES
700MOSRT30EW
700MOSRT30EZ
Monorail SRT 300W Electronic 120v/12v
  1 x 120v
24v
1 x 300 watts
magnetic ac
700MOSRT324DB
700MOSRT324DC
700MOSRT324DS
700MOSRT324DW
700MOSRT324DZ
Monorail SRT 300W Magnetic 120v/24v
  1 x 120v
24v
1 x 600 watts
magnetic ac
700MOSRT624DB
700MOSRT624DC
700MOSRT624DS
700MOSRT624DW
700MOSRT624DZ
Monorail SRT 600W Magnetic 120v/24v
Dual Feed Surface Mount Monorail Transformers
LED
Compatible
1 x 120v
12v
2 x 300 watts**
magnetic ac
700MOSRT60DB
700MOSRT60DC
700MOSRT60DS
700MOSRT60DW
700MOSRT60DZ
Monorail SRT 600W Magnetic120v/12v

Remodel Recessed Transformers

Tech Lighting Monorail Remodel Recessed Transformers

Remodel Recessed Transformers install in a similar fashion as remodel recessed downlights and are concealed inside a housing that recesses above the ceiling. The decorative canopy is the only visible portion of the transformer once installed.

Remodel Recessed Transformers look similar from below the ceiling to the power feed canopies used with remote transformers and are preferred for their clean look.

An additional benefit they have over remote transformers is that they do not require access to a remote location because the transformer sits just above the ceiling. However, they are not compatible with all finished ceilings because an electrician will need to install the Remodel Recessed Transformer in close proximity to an existing junction box, drill through the finished ceiling in the location where the Remodel Recessed Transformer will be installed, and cover the existing junction box with the provided field-paintable metal cover. In new construction, an electrician can simply bring power to the Remodel Recessed Transformer directly.

The Remodel Recessed Transformer has an integral power feed so there is no need for a separate power feed; however, the transformer must be installed directly above the rail run. Insulation must be kept at least 3 inches away from the transformer and housing. This transformer is equipped with fast-acting short circuit and overload protection that will safely turn off the system should a short occur. Once the short is removed, the unit can be reset by simply flipping the wall switch off and back on.



Low-profile Single-feed Options**

Tech Lighting 700MOSRR151E Low-profile Single-feed Remodel Recessed 150w Transformer

700MOSRR151E Monorail Remodel Recessed Transformer 150w E 120/12

This single-feed remodel recessed transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system. It can power lamps totaling up to 150 watts.
Dimmable with a 600 watt low-voltage electronic dimmer.

Finishes: Antique Bronze, Chrome, Satin Nickel, White



Tech Lighting 700MOSRR301E Low-profile Single-feed Remodel Recessed 300w Transformer

700MOSRR301E Monorail Low-profile Single-feed Remodel Recessed Transformer 300w E 120/12 ,

This single-feed remodel recessed transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system. It can power lamps totaling up to 300 watts.
Dimmable with a 600 watt low-voltage electronic dimmer.

Finishes: Antique Bronze, Chrome, Satin Nickel, White

* White finish option has satin nickel feed
** Not compatible with power extenders or power vault adapter



Extendable Single-feed Options

Tech Lighting 700MOSRR15E Low-profile Extendable Remodel Recessed 150w Transformer

700MOSRR15E Low-profile Extendable Remodel Recessed 150w Transformer Electronic 120/12 ,

This single-feed remodel recessed transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system. It can power lamps totaling up to 150 watts.
Dimmable with a 600 watt low-voltage electronic dimmer.

Finishes: Antique Bronze, Chrome, Satin Nickel, White



Tech Lighting 700MOSRR30E Low-profile Extendable Remodel Recessed 300w Transformer

700MOSRR30E Low-profile Extendable Remodel Recessed 300W Electronic 120/12 ,

This single-feed remodel recessed transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a Monorail low-voltage lighting system. It can power lamps totaling up to 150 watts.
Dimmable with a 600 watt low-voltage electronic dimmer.

Finishes: Antique Bronze, Chrome, Satin Nickel, White

Recessed Can Transformer: Replace recessed lighting trim with a monorail!

Tech Lighting 700MOREC15EC Recessed Can Transformer

700MOREC15EC Monorail Recessed Can Transformer 120v/12v ,

Use to retrofit an existing recessed down light to power a Monorail system. Mounts to any recessed can that is 6-1/4" to 6-1/2" in diameter and has "C" shaped hooks on the inside can wall.

Compatible with 2" Rigid Standoff.
Includes white canopy, antique Bronze, chrome or satin nickel Power Feed and 150 watt electronic transformer.
Dimmable with a low-voltage electronic dimmer.

Power Feed (if you choose a remote transformer)

Single-Feed options

Use with one single-feed remote transformer.

Tech Lighting 700MOP4C01 4" Round Low-Profile Single-feed**

700MOP4C01 Monorail Power Feed 4" R Lo-Prof Single Feed

The Monorail Low-Profile Power Feed Canopy allows for the closest-to-ceiling possible mounting of a Monorail run. It brings power directly above a Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Compatible with Monorail 1" Rigid Standoff. Not compatible with Power Extenders nor Power Vault Adapter.

Finishes: Bronze, Chrome or Satin Nickel



Tech Lighting 700MOP4C02 4" Round Single-feed Power Feed Canopy

700MOP4C02 Monorail Power Feed Canopy 4" Round Single Feed

A single-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Tech Lighting 700MOP2C02 2" Square Single-feed Power Feed Canopy

700MOP2C02 Monorail Power Feed Canopy 2" Square Single Feed ,

A single-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Tech Lighting 700MOPRC02B 2" x 4" Rectangular Single-feed Power Feed Canopy

700MOPRC02B Monorail Power Feed Canopy Rectangular Single Feed ,

A single-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Bronze, Black, Chrome, Satin Nickel, White

Dual-Feed options

Use with one dual-feed remote transformer (isolating connectors included).

Tech Lighting 700MOP4C401 4" Round Low-profile Dual-feed**

700MOP4C401 Monorail Power Feed 4" Round Lo-Profile Dual Feed

The Monorail Low-Profile Power Feed Canopy allows for the closest-to-ceiling possible mounting of a Monorail run. It brings power directly above a Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Compatible with Monorail 1" Rigid Standoff. Not compatible with Power Extenders nor Power Vault Adapter.

Finishes: Bronze, Chrome or Satin Nickel



Tech Lighting 700MOP4C402B 4" Round Dual-feed Monorail Power Feed Canopy

700MOP4C402B Monorail Power Feed Canopy 4" Round Dual Feed ,

A dual-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Isolating connectors are included to isolate power feeds from each other.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Tech Lighting 2" Square Dual Feed Monorail Power Feed Canopy

700MOP2C402 Monorail Power Feed Canopy 2" Square Dual Feed

A dual-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Isolating connectors are included to isolate power feeds from each other.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Tech Lighting 700MOPRC402B 2" x 4" Rectangular Dual Feed

700MOPRC402 Monorail Power Feed Canopy Rectangular Dual Feed

A dual-feed canopy is mounted to the ceiling above the Monorail run. It brings power to the Monorail run from a remote transformer (sold separately). The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box. Isolating connectors are included to isolate power feeds from each other.

Finishes: Bronze, Black, Chrome, Satin Nickel, White



Plug-In options

Tech Lighting 700A1 Monorail Cord and Plug Option

700A1 Cord and Plug ,

16' cord and plug for standard 120V power outlets. Use to adapt a surface transformer from a junction box mount to plug in transformer. Hardware included.

Finishes: Black, White



Power Extender

Tech Lighting 700MOP Monorail Power Extender

700MOP Monorail Power Extender , to

Add to power feed canopy or surface transformer to drop power from ceiling. For dual-feed canopies and transformers, order two. Field-cuttable.

Length: 3", 6", 12", 24", 36", 48", 96"

Finishes: Bronze, Chrome or Satin Nickel

* Black and white finish options have satin nickel feeds.
** Not compatible with power extenders or power vault adapter.



Tech Lighting 700MOPVLT Monorail Power Vault Adapter

700MOPVLT Monorail Power Vault Adapter ,

To install a Monorail system to a vaulted ceiling, add a power vault adapter to each power feed and add a standoff vault adapter to each standoff.

Installs to the power feed (sold separately) and adjusts to any angle to position rail parallel to the floor.

Special Installations

Using a Direct-End Power Feed

These direct-end power feeds bring power from a remote transformer to the rail at an end of the run and mounts to a wall perpendicular to the run. Use with a single-feed remote transformer.

Tech Lighting 700MOP4CD 4" Round Direct End Single-feed Power Feed Canopy

700MOP4CD Monorail Direct End Power Feed 4" Round ,

A direct-end power feed brings power from a remote transformer to the rail at an end of the run and mounts to a wall perpendicular to the run. The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOP2CD Monorail 2 inch Square Direct End Power Feed

700MOP2CD Monorail Direct End Power Feed 2" Square ,

A direct-end power feed brings power from a remote transformer to the rail at an end of the run and mounts to a wall perpendicular to the run. The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOPRCD Monorail Direct End Power Feed Rectangular Direct End Power Feed

700MOPRCD Monorail Direct End Power Feed Rectangular

A direct-end power feed brings power from a remote transformer to the rail at an end of the run and mounts to a wall perpendicular to the run. The low-voltage leads from the remote transformer are connected to the canopy leads inside the junction box.

Finishes: Antique Bronze, Chrome or Satin Nickel

Using End & Center Power Feed

End and center power feeds are generally used to bring power to a Monorail system when the transformer cannot be located directly above the run. The power feed can be mounted to a standard 4" junction box with round plaster ring (provided by electrician), directly to a Remote Transformer or to a Kable Lite Surface Transformer.

Tech Lighting 700MOPCEN Monorail Center Power Feed Single Feed

700MOPCEN Monorail Center Power Feed Single Feed ,

Center Power Feeds are generally used to bring power to a Monorail system when the transformer or canopy cannot be located directly above the run. The center power feed can be used anywhere within the run and includes a removable 4" round canopy and 12' of field-cuttable softwire leads. Specify dual-feed when using a dual-feed transformer. Dual-feed canopy includes isolating connectors.

Finishes: Antique Bronze, Chrome or Satin Nickel



Tech Lighting 700MOPEND Monorail End Power Feed

700MOPEND Monorail End Power Feed

End power feeds are generally used to bring power to a Monorail system when the transformer or canopy cannot be located directly above the run. The end power feed pushes into an end of the Monorail and includes a removable 4" round canopy and 12' of field-cuttable softwire leads.

Finishes: Antique Bronze, Chrome or Satin Nickel

Monorail Remote Transformers

Remote transformers install in an accessible location behind the ceiling or wall.
Requires canopy or special power feed.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Single Feed
LED
Compatible
1 x 120v
12v
1 x 60 watts**
electronic ac
700AT060EL AT 60W Electronic 120v/12v LED
LED
Compatible
1 x 120v
12v
1 x 75 watts**
magnetic ac
700AT075T AT 75W Magnetic 120v/12v
LED
Compatible
1 x 120v
12v
1 x 150 watts**
magnetic ac
700AT150T AT 150W Magnetic 120v/12v
LED
Compatible
1 x 120v
12v
1 x 150 watts**
electronic dc
700AT152EL AT 150W Electronic 120v/12v LED
  1 x 120v
12v
1 x 300 watts
electronic dc
700AT300EL AT 300W Electronic 120v/12v
LED
Compatible
1 x 120v
12v
1 x 300 watts**
magnetic ac
700AT300T AT 300W Magnetic 120v/12v
  1 x 120v
24v
1 x 300 watts
magnetic ac
700AT3024T AT 300W Magnetic 120v/24v
LED
Compatible
1 x 120v
12v
1 x 300 watts**
electronic dc
700AT302EL AT 300W Electronic 120v/12v LED
  1 x 120v
24v
1 x 600 watts
magnetic ac
700AT6024T AT 600W Magnetic 120v/24v
Dual Feed
LED
Compatible
1 x 120v
12v
2 x 300 watts**
magnetic ac
700AT600T AT 600W Magnetic 120v/12v Dual Feed

* In-wall recessed remote transformers also available for magnetic 300 and 600 watt models for use in applications where a remote transformer is desired but there isn't access to a remote location.
** As a general rule when using led fixtures we do not recommend using greater than 70% of specified maximum wattage on the transformer due to inrush current.

Satin Nickel Monorail with (from left on Monorail)
Firebird Owl Pendant, Aero shown with Amber Round Glass Shield, Aero with Tinkerbell Accessory and Aero with Firebird Owl (Amber) Glass Shield

Tech Lighting Monorail

Tech Lighting Monorail is the recognized leader in low-voltage lighting systems. Our rail is hand bendable, so you can custom create the ideal shape to complement any space. With the addition of our new Antique Bronze finish, you can integrate this stylish system into even the most traditional interior space. Deliver a finished look in a kitchen by including Monorail over an island, or run your system along a soffit for architectural effect. Monorail is a great way to complete your space with style.

Monorail is Tech Lighting's signature low-voltage hand bendable rail system that can be used to create the ideal shape to complement any space.

  • Chrome, Satin Nickel and Antique Bronze finish options.

  • Several Installation: options allow for integration into even the most challenging spaces

  • Ambient and task lighting provided by a wide selection of compatible architectural heads, decorative pendants and functional art

Check with us to see all the available options.

Satin Nickel Monorail with drop options and Swivel Elements
With Mesh Backlight Shield Accessories

Tech Lighting Monorail in Satin Nickel
Aero with stems hold Satin Nickel Tinkerbell, Frost White Round Glass and Swan White Firebird Shades

Monorail from Tech Lighting

Monorail from Tech Lighting offers all the function and flexibility of a track lighting system without sacrificing form. The rail is hand bendable, so you can custom create the ideal shape to enhance and illuminate any room. Try a smooth curve to follow the line of a column or kitchen island, or create drama by running Monorail along a soffit. Two-Circuit Monorail provides two individually switchable circuits on a single run for a new level of lighting control.

Satin Nickel Monorail with Aero elements with Cone Glass Shield Accessory, Curly Torpedo with Cone Glass Shield.

Tech Lighting Monorail is ordered as separate parts, Monorail, supports, transformers and the lights themselves. They are also available as kits.

All kits include:

Transformer
2 rigid standoff supports
2 sets of decorative end caps
8 foot long hand bendable Monorail

Lighting Elements can be selected separately.
Transformer can be upgraded to higher wattage to support more lights.

How do I design my own Monorail?

First: a) Choose lighting elements.
Choose accessories, if required or desired.
b) Choose lamps (bulbs), 12 or 24 volt, that do not exceed maximum wattage of element or accessory.
(may be included with element).
C) Add up total lamp wattage on system. This is the number you will need to order your transformer. How many watts will you need?
d) Choose finish (Chrome or Satin Nickel)of system and make sure all of the parts come in this finish.

2nd: a) Decide where you want the rail to run.
b) Sketch it to scale, so you know what Length you want.
C) Measure Length of Monorail run.
d) Specify one pair of End Caps for each open end of run.
e) Count one Standoff for every three feet of rail.
f) Does the run include a sharp angle or turn? If so, you will need a Flexible Connector to make the turn.
If you would like, the rail can be custom bent at the factory. Just ask us.

3rd: a) Select a Transformer.
Do you want a surface transformer (visible) or a remote transformer (hidden in the ceiling or a closet)?
Do you want a magnetic or electronic transformer?
Do you want 12 volt or 24 volt?
Most people select 12 volt electronic. Now you need that number you came up with in step 1. How many watts do you need? We can help you decide whether you need single or dual feed.
b) If you have selected to use a remote transformer, you need to select a power feed canopy. Do you want round or square? What size hole do you need to cover?
C) Or select a Surface Transformer.
Remember! The wattage of the transformer must meet or exceed wattage of lamps calculated earlier!
d) If powering system with more than one transformer, add Isolating Connectors to isolate the feeds from each other.
e) If dropping system a distance below ceiling, add one Power Extender to each power feed (add two when using dual feed).


Surface Transformer


Remote Transformer

4th: a) Select how to mount it.
Select Standoffs that match or exceed drop of the Surface Transformer or Power Feed.
b) How long is your Monorail going to run? You will need 1 for every 3 feet of rail.
C) Is your ceiling vaulted? If so, you will need one Power Vault Adapter for each power feed (add two when using dual feed) and one Standoff Vault Adapter for each Standoff.

This covers the most common Monorail applications, but Monorail can do almost anything. For other Monorail system options just ask us!

Sample Bill of Materials for Tech Lighting Monorail System

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Item Quantity Number Description
A 4 700MOAE3S MO-Aero 3", Satin Nickel
B 1 700MOAE12S MO-Aero 12", Satin Nickel
C 5 300BLV138 12v 50w MR16 lamp, GE EXZ 27°
C 5 700MR16GF Round Glass Shield Accessory, frost
D 1 700MOA96S Monorail, 96", Satin Nickel
D 1 700MOA48S Monorail, 48" Satin Nickel
E 2 700MOCCAPS End Caps, pair, Satin Nickel
F 1 700AT300T Remote Magnetic Transformer, 12v 300 watts
G 1 700MOP2C02S Single Feed Canopy, 2" square, Satin Nickel
H 3 700MOS02S Rigid Standoff, 2", Satin Nickel

Above: Satin Nickel Monorail suspended with John Heads
Below: Tech Lighting Monorail in Satin Nickel
Tilt with 12" stems & Frost White Round Glass Shields

Tech Lighting Monorail Pendants

Our site has three pages of pendants that are compatible with Tech Lighting Monorail and other Tech Lighting Systems.

Left: Kitchen with Tech Lighting Monorail Pendants & Heads



Wall Monorail

Tech Lighting Wall Monorail uses the same rail, with wall mounts. Available as Components or Pre-configured Kits.


See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
