NSL LED Step Star Step Light
Self-contained, complete die cast aluminum recessed 120VAC step light, wall light or ceiling recessed fixture.
Step Lights are 7 1/2" x 4".
LST LED Step Star Step Light , Uses only 5.2 watts. Can be parallel wired ("daisy chained") up to 150 fixtures per circuit.
XSL Xenon Step Light
Uses only 18 watts. Can be parallel wired ("daisy chained") up to 66 fixtures per 15A tap.
NSL Xenon Step Lights >
Louver, Prism or Scoop Cover
White, Bronze, Black or Aluminum finish.
Indoor or Outdoor.

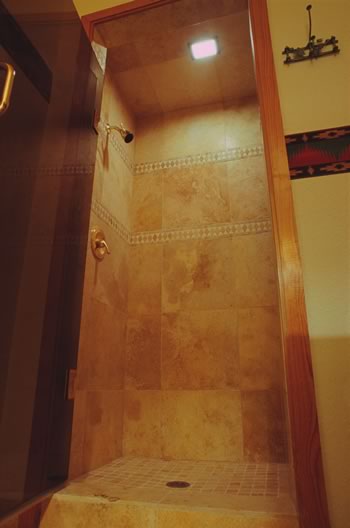

Rated for Wet Location, Insulation Contact, Wall or Ceiling, Showers, Poured Concrete.
NSL LED Step Light - LED Step Star
Die cast aluminum wall mount LED step light fixture of only 5.2 watts. 72% energy savings vs. Xenon/Halogen technologies. Replaceable 120VDC LED Module included. Dimmable. 120VAC input and output of fixture up to 150 fixtures per 15A tap. UL listed Wet Location for all interior and exterior wall, ceiling and concrete pour applications. Offered in three cover styles and four fixture finishes.
NSL LED Step Star Step Light with Prism

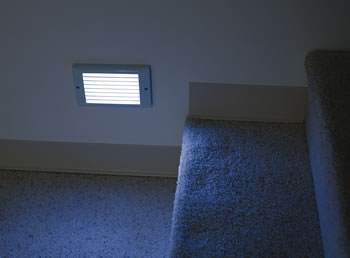

NSL LED Step Star Step Light with Louver
|LED Step Star Step Light||Cover Color Options: WH=White, BK=Black, BZ=Bronze, AL=Aluminum
Fixture Type: L = Louver Cover , S = Scoop Cover, P = Prism Cover
|LST-L-WH-WH||WH=White, L = Louver Cover|
|LST-L-WH-BK||BK=Black, L = Louver Cover|
|LST-L-WH-BZ||BZ=Bronze, L = Louver Cover|
|LST-L-WH-AL||AL=Aluminum, L = Louver Cover|
|LST-S-WH-WH||WH=White, S = Scoop Cover|
|LST-S-WH-BK||BK=Black, S = Scoop Cover|
|LST-S-WH-BZ||BZ=Bronze, S = Scoop Cover|
|LST-S-WH-AL||AL=Aluminum, S = Scoop Cover|
|LST-P-WH-WH||WH=White, P = Prism Cover|
|LST-P-WH-BK||BK=Black, P = Prism Cover|
|LST-P-WH-BZ||BZ=Bronze, P = Prism Cover|
|LST-P-WH-AL||AL=Aluminum, P = Prism Cover|
|LED Step Star Accessories|
|LEDMOD-32-FF||120VDC Replacement LED Module|
Step Light Concrete Cap

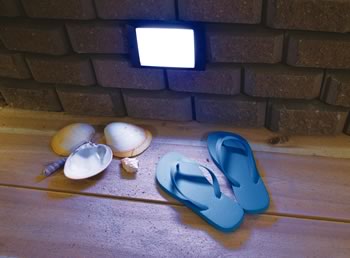

Required for all concrete pour and brick wall applications
|LMSII-001||Terminal Block Connector & Junction Box|
|Fixture Energy Rating||120VAC, 43mA, 5.2 watts|
|LED Module Life||Replaceable 120VDC LED Module rated at 40,000 hours|
|LED Color Temperature||3100K +/- 200K|
|Cover Finish||White, Bronze, aluminum, black|
|Can Finish||White with aluminum Reflector|
|Construction||Both cover and can are die cast aluminum for corrosion protection, strength, weight and consistency of finish.|
|Lens||Frosted tempered glass|
|Wiring Options||120V can be parallel wired ("daisy chained") up to 150 Fixtures per tap. Check local code and NEC for wiring selectiont.|
|Dimming||Dimmable with standard 120VAC dimmer. See instructions for details.|
|Agency Approval||UL listed Wet Location for all interior and exterior Wall, ceiling, and concrete pour Applications.|
LED Step Star (Model no. LST-P-WH-WH)
Lumens = 73.5 | Watts = 5.2
Lower Wall Mount Application
|Fixture center 9" above floor|
|Illuminance in Footcandles:||0||0||0||6.51||2.54||0.53||2.11||1.38||0.56||0.79||0.63||0.36|
