NSL LED Sconce Star Indoor/Outdoor Lighting

Above: Outdoor Application
Below: Indoor Application

NSL LED Sconce Star Indoor/Outdoor Lighting

LSS LED Color:   WW=Warm White
Fixture Color Options:   WH=White, BZ=Bronze, AL=Aluminum, BK=Black

Included in every fixture box: (1) LED Sconce Star fixture including two replaceable LED Modules, (1) 4" x 4" mounting bracket, (2) Bracket-to-fixture mounting bolts and cap nuts, (1) Short circuit connector, and instructions.

Self-contained, complete die cast aluminum 120VAC LED wall mount fixture uses only 10.4 watts. Up-light or Up and Down-Light sconce.

Can be parallel wired ("daisy chained") up to 75 fixtures maximum per circuit.

White, Bronze, Black or Aluminum.

Indoor or Outdoor. Rated for Wet Location.
Dimmable!

NSL LED Sconce Star Indoor/Outdoor Lighting

Completely self-contained die cast aluminum wall mount fixture of only 10.4 watts with replaceable 120VDC LED Modules included. Dimmable. Energy savings of 72% vs. Xenon/Halogen technology. 120VAC input and output of up to 75 fixtures per 15A tap. Two light sources per fixture (up and down lighting), each with two different sized openings. Unplugging one module allows one light source option. Offered in four fixture finish colors.

LED Color:   WW=Warm White
Fixture Color Options:   WH=White, BZ=Bronze, AL=Aluminum, BK=Black

Included in every fixture box:

  • (1) LED Sconce Star fixture including two replaceable LED Modules
  • (1) 4" x 4" mounting bracket
  • (2) Bracket-to-fixture mounting bolts and cap nuts
  • (1) Short circuit connector, and instructions.

Applications

  • Hallways
  • Stairwells
  • Steps
  • Indoor
  • Outdoor
  • Entryway
  • Doorways
  • Garage
  • Porch
  • Walkway
  • Lobby
  • Columns
  • Directional
  • Architectural
  • Accent Lighting
  • 911 Address Lighting

Features

  • Replaceable 120VDC LED Modules
  • The same light output of Xenon or Halogen technology
  • Pleasingly warm color temperature of 3100K
  • Removal of one module does not affect the illumination of remaining module
  • Mounts to a standard 4" x 4" junction box
  • Uses standard household Romex wire input/output
  • Powder coated die cast aluminum construction
  • 4 color options: Aluminum, Black, Bronze and White
  • The same light output as Xenon or Halogen technology
  • Energy usage of 10.4 watts per fixture (5.2 watts per module)
  • Maximum of 75 fixtures per 120VAC, 15A circuit
  • Suitable for Wet Location
  • Dimmable
This chart is better viewed on a desktop computer or by turning your screen horizontal.
LED Sconce Star
Individual Fixtures
LED Color:   WW=Warm White
Fixture Color Options:   WH=White, BZ=Bronze, AL=Aluminum, BK=Black
Included in every fixture box: (1) LED Sconce Star fixture including two replaceable LED Modules, (1) 4" x 4" mounting bracket, (2) Bracket-to-fixture mounting bolts and cap nuts, (1) Short circuit connector, and instructions.
LSS-WW-AL
LSS-WW-BK
LSS-WW-BZ
LSS-WW-WH
LED Sconce Star Accessories
LEDMOD-32-FF 120VDC Replacement LED Module
  LEDSS-SHRCON Short circuit connector for 2011 LED Sconce Light only.
Not for use with new LED Sconce Star (if you wish to use one side only on the new LED Sconce Star, simply remove one LED module)
  LMSII-001 Terminal Block Connector & Junction Box

Schematics

Light Output Flexibiliby


Narrow Opening
7/16" W x 1-5/8" H LED Sconce

Wide Opening
1-3/16" W x 1-5/8" H

Each fixture has a narrow and a wide opening on opposite fixture ends.
Fixtures are symmetrical and mounting can be accomplished with either opening pointing up or down.

Power One Modules or Both


Both modules powered

Only one modules powered

Power both modules for up and down lighting.
For applications requiring light in the up or down direction only, power only one module.
If you wish to use one side only on the new LED Sconce Star, simply remove one LED module.
Select wide or narrow opening.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Specifications


Voltage 120VAC
Fixture Energy Rating Both modules 120VAC, 95mA, 10.4 watts. One module 120VAC, 50mA, 5.2 watts.
LED Color Temperature 3100K +/- 200K
Average LED Module Life Replaceable 120VDC LED Module rated at 40,000 hours
Fixture Finish Powder coated white, black, aluminum and Bronze
Construction Fixture is die cast aluminum for low Fixture weight and corrosion protection. Junction box cover is stamped steel.
Lens Tempered Glass
Wiring Options 120VAC can be parallel wired ("daisy chained") up to 75 Fixtures maximum per circuit. Check local code and NEC for wiring selection.
Dimming Dimmable with standard 120VAC dimmer. See instructions for details.
Agency Approval UL Listed and labeled wet location. Wall mount only.
Warranty Two years.

LED Sconce Star Photometrics

Upper Wall Mount Applications

LED Sconce Star (wide opening down, narrow opening up) (Model no. LSS-WW-AL)
Lumens = 151 | Watts = 10.4

This chart is better viewed on a desktop computer or by turning your screen horizontal.

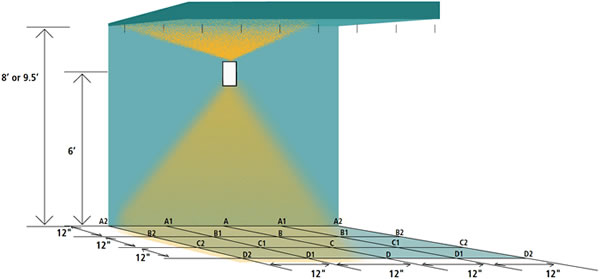

Floor Photometrics Fixture center 6 ft. above floor
Grid Location: A A1 A2 B B1 B2 C C1 C2 D D1 D2
Illuminance in Footcandles: 2.18 2.08 1.76 2.08 2.01 1.72 1.85 1.78 1.50 1.46 1.39 1.18

Ceiling Photometrics Fixture center 8 ft. above floor
Grid Location: A A1 A2 B B1 B2 C C1 C2 D D1 D2
Illuminance in Footcandles: 21.63 1.15 0.16 14.13 0.72 0.14 3.62 0.32 0.09 0.13 0.09 0.05

Ceiling Photometrics Fixture center 9.5 ft. above floor
Grid Location: A A1 A2 B B1 B2 C C1 C2 D D1 D2
Illuminance in Footcandles: 5.87 1.67 0.27 5.39 1.73 0.23 3.44 1.56 0.16 1.85 0.64 0.13
