NSL LED Brick Star Brick Lights

NSL LED Brick Star Brick Light & NSL Xenon Brick Lights

Sized to replace a single standard brick. Self-contained, complete die cast aluminum recessed 120VAC step light, wall light or ceiling recessed fixture

LBR LED Brick Star Brick Light , 9" x 2 3/8" Sized to replace a single standard brick.
LBR-L-WH-SS Stainless Steel (Louver Only)
LED Brick Star uses only 5.2 watts. Can be parallel wired ("daisy chained") up to 150 fixtures per circuit.
NSL Xenon Brick Lights >

XBL Xenon Brick Light , 9" x 2 3/8" Sized to replace a single standard brick.
XBL-L-SS Stainless Steel (Louver Only)
Xenon Brick Light uses only 18 watts.
Can be parallel wired ("daisy chained") up to 66 fixtures per 15A tap.

Louver, Prism or Scoop Cover
White, Bronze, Black or Aluminum finish.
Stainless Steel Louver Cover
available for use in corrosive environments, salt air or installed in limestone or other caustic materials.

Indoor or Outdoor.
Rated for Wet Location, Insulation Contact, Wall or Ceiling, Showers, Poured Concrete.
Dimmable!

NSL LED Brick Star Brick Light

New! Stainless Steel Louver Cover
Recommended for use in corrosive environments as salt air, adjacent bodies of water, or installed in caustic materials such as limestone.
Three year warranty.

Die cast aluminum wall mount LED light fixture fits standard brick void and consumes only 5.2 watts. 72% energy savings vs. Xenon/Halogen technologies. Dimmable. 120VAC input and output of fixture up to 150 fixtures per 15A tap. Replaceable 120VDC LED Module included. UL listed Wet Location for all interior and exterior wall, ceiling and concrete pour applications. Offered in three cover styles and five fixture finishes, including Stainless Steel Louver Cover with fluorocarbon lacquer coated aluminum can.

Applications

  • Brick walls
  • Interior steps
  • Exterior steps
  • Aisles
  • Halls
  • Paths
  • Patio lighting
  • Entry lighting
  • Post lighting

Features

  • 120VDC replaceable LED Module
  • 120V Power Input
  • Low 5.2 watts per fixture energy usage
  • Up to 150 fixtures per 120VAC tap
  • Dimmable
  • No integral LED Driver required
  • Pleasingly warm color temperature of 3100K
  • 120V push-in connectors included for ease of per input
  • Frosted glass lens
  • Each fixture ships complere with can and cover
  • Die cast aluminum can and cover; suitable for concrete pour
  • 3 cover designs; Louver, Prism and Scoop
  • 5 cover color options: White, Bronze, Black, Aluminum or Stainless Steel

Suitable for:

  • Wet locations
  • Insulation contact
  • Wall or ceiling mount
  • Showers
  • Use in poured concrete

Colors & Cover Styles

Louver: White, Bronze, Aluminum and Black

Prism or Scoop Cover, Louver Cover, Stainless Steel Louver Cover
White, Bronze, Black or Aluminum finish

New! Stainless Steel Louver Cover

Recommended for use in corrosive environments as salt air, adjacent bodies of water, or installed in caustic materials such as limestone.
Three year warranty.

NSL Brick Light with White Prism Cover

NSL Brick Light with Aluminum Scoop Cover

This chart is better viewed on a desktop computer or by turning your screen horizontal.
LED Brick Star

Cover Options:   L=Louver,   S=Scoop,   P=Prism
LED Color:   WH=White
Cover Color Options:   WH=White,   BK=Black,   BZ=Bronze,   AL=Aluminum,   SS=Stainless Steel (Louver Only)

LBR-L-WH-WH
LBR-L-WH-BK
LBR-L-WH-BZ
LBR-L-WH-AL
LBR-L-WH-SS Now with New! Stainless Steel Louver Cover
Recommended for use in corrosive environments as salt air, adjacent bodies of water, or installed in caustic materials such as limestone.
Three year warranty.

LBR-S-WH-WH
LBR-S-WH-BK
LBR-S-WH-BZ
LBR-S-WH-AL

LBR-P-WH-WH
LBR-P-WH-BK
LBR-P-WH-BZ
LBR-P-WH-AL
LED Brick Star Accessories
LEDMOD-32-FF 120VDC Replacement LED Module

BL-CC Brick Light Concrete Cap
  LMSII-001 Terminal Block Connector & Junction Box
This chart is better viewed on a desktop computer or by turning your screen horizontal.
Xenon Step Light

XSL-L-(color) Louver: White, Bronze, Aluminum and Black

XSL-S-(color) Scoop: White, Bronze, Aluminum and Black

XSL-P-(color) Prism: White, Bronze, Aluminum and Black
SL-CC

Step Light Concrete Cap

Concrete pour of NSL's XSL, XBL, XWL, LSL, LBL fixtures is now a snap with this well engineered accessory.

Replacement Bulb

XEN-12-18W

12 volt, 18 watt Clear Xenon Replacement Bulb
Step Light Concrete Cap


SL-CC Step Light Concrete Cap
Required for all concrete pour and brick wall applications

Schematics

Assembly Schematic

Concrete Cap

WARNING! If this fixture is to be placed in a masonry or brick wall, you must use a Concrete Cap during can installation to provide the proper void for the fixture cover. Failure to use the Concrete Cap will almost guarantee concrete or grout forming against fixture can flange and poor cover-to-can seal (see below). Poor cover seal will allow water/moisture into fixture resulting in LED and Xenon failure.

Without Concrete Cap

Concrete or grout prevents cover from allowing a proper seal

Cap With Concrete Cap

Concrete form used during fixture can installation allows for proper void and good cover-to-can seal

Assembly, Reflector, LED Module and Cover

Interconnect up to 150 fixtures per 120VAC tap.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

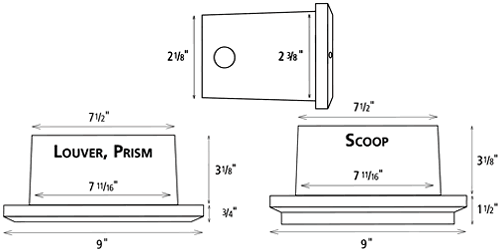

Dimensions

Cover L W D
Louver 9" 3" .75"
Prism 9" 3" .75"
Scoop 9" 3" .75"
Can 7.7" 2.4" 3.2"
Hole 7.7" 2.4" 3.2"

Specifications


Voltage 120VAC
Fixture Energy Rating 120VAC, 43mA, 5.2 watts
LED Module Life Replaceable 120VDC LED Module rated at 40,000 hours
LED Color Temperature 3100K +/- 200K
Cover Finish White, Bronze, aluminum, black or stainless steel
Can Finish White with aluminum Reflector for aluminum cover Fixtures. Stainless steel cover option has fluorocarbon lacquer black can.
Construction Both cover and can are die cast aluminum for corrosion protection, strength, weight and consistency of finish. New Stainless Steel Louver option.
Lens Frosted tempered glass
Wiring Options 120V can be parallel wired ("daisy chained") up to 150 Fixtures per tap. Check local code and NEC for wiring selection.
Dimming Dimmable with standard 120VAC dimmer.
Agency Approval UL listed wet location for all interior and exterior Wall, ceiling and concrete pour Applications.
Warranty Two years powder coated finish, 3 years stainless steel finish.

LED Step Light Photometrics

LED Brick Star (Model no. LBR-P-WH-WH)
Lumens = 70.2 | Watts = 5.2
This chart is better viewed on a desktop computer or by turning your screen horizontal.

Lower Wall Mount Application

Fixture center 9" above floor
Grid Location: A A1 A2 B B1 B2 C C1 C2 D D1 D2
Illuminance in Footcandles: 0 0 0 6.42 2.51 0.52 1.91 1.26 0.53 0.70 0.56 0.33
