NSL Xenon Mini Light

NSL Xenon Under Cabinet Lights can be either surface mounted or recessed.

NSL Xenon Mini Light
Under Cabinet Lights
Countertop Lights

Custom design for your application.
XML-F Individual Fixtures
Does not include driver, etc.

Everything you need; 3 Fixtures, 39" Lead Wires, 60W Class 2 Electronic Transformer Connectors and Mounting Screws.
XML-3 3 Light Kit

Heat-resistant plastic surface mount (1-3/16") or recessed (5/16") 3" square 12 volt Xenon under-cabinet, in-cabinet or display light uses only 18 watts per fixture.

Safe 12 volt remote transformer powers up to 8 fixtures with the 150 watt remote transformer.

Frosted lens
White, Black, Bronze, Aluminum, Gold or Chrome finish

ETL listed for use in cabinets and furniture with appropriate NSL transformer.
Dimmable!

NSL Xenon Mini Light

Xenon 18 watt under cabinet light fixture. Approximately one-half the heat output of similar Halogen fixtures. Avg. bulb life of an impressive 10,000 hours. Does not emit harmful UV rays. Fully dimmable with the appropriate low voltage dimmer on the primary side of the transformer. Offered in six fixture finishes.

  • Under cabinets
  • Display cases
  • Furniture
  • China cases
  • Office workstations

Features

  • 12V 15 watt Xenon Bulbs
  • 10,000 hour average bulb life, versus 2,500 hour for 20 watt Halogen bulbs
  • Fixture is laboratory tested to have a heat output 1/2 of most Halogen mini lights
  • Dimmable
  • Frosted Lens
  • Unit can be surface mounted or recessed
  • 36" Leads

Xenon Advantages

  • Less relamping. Four times the bulb life of Halogen. 10, 000-hour average bulb life of Xenon vs. 2, 500-hour average bulb life for Halogen or Incandescent
  • Replacement lamps half the cost of 110V Halogen
  • Does not emit harmful UV rays
  • Produces less heat. Burns significantly cooler than Halogen
  • Considerably safer due to less pressure in bulb vessel
  • Does not require tempered glass cover
  • Dimmable
  • Handling or dimming bulb does not affect bulb life as in Halogen

White

black

Black

Chrome

white

Gold

NEW! Bronze

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Individual Fixtures   Color Options: W=White, B=Black, C=Chrome, G=Gold, Z=Bronze, A=Aluminum
XML-F-W

W=White Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

XML-F-B

B=Black Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

XML-F-C

C=Chrome Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

XML-F-G

G=Gold Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

XML-F-Z

Z=Bronze Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

XML-F-A

A=Aluminum Xenon Mini Light

All fixtures ship with bulbs, 36" leads, frosted lens, surface mount ring, terminal block and screws.

3-Light Kits   Color Options: W=White, B=Black, C=Chrome, G=Gold, Z=Bronze, A=Aluminum
XML-3-W

W=White Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

XML-3-B

B=Black Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

XML-3-C

C=Chrome Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

XML-3-G

G=Gold Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

XML-3-Z

Z=Bronze Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

XML-3-A

A=Aluminum Xenon Mini Light Kit

All 3-Light Kits include three Xenon Mini Light Fixtures with bulbs, 36" leads, 60 watt Transformer, three surface mounts, quick connector and mounting screws.
Includes 60 watt transformer, quick connector and nail clips.

Accessories

LW-1

Terminal Block Connector
WSC-004 Wire Screw Clips (30/bag)
Drill Bit

XML-DRILL

2-5/8" Width, Hole Drill bit
Replacement Bulb

XEN-12-18W

12 volt, 18 watt Clear Xenon Replacement Bulb
Electronic Transformers
TECLT-12-60

12 Volt, one circuit at 60 watts, Class 2 Electronic Transformer.

Hardwire only. Indoor use only. 6.5"(L) x 1.5"(W) x 1.5"(H)

TECLT-12-150

12 Volt, one circuit at 150 watts, Class 2 Electronic Transformer.

Hardwire only. Indoor use only. 6.5"(L) x 1.5"(W) x 1.5"(H)

Installation and Operational Features

Recessed Mount or Surface Mount

Dimensions

Specifications

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Voltage 12V
Bulb Specifications 18 watt wedge base Xenon
Average Bulb Life 10,000 hours
Fixture Finishes Gold, Chrome, White, Black, Bronze, Aluminum
Protective Features Heat-resistant plastic design
Lens Frosted
Leads 36"
Dimming Dimmable with the appropriate low voltage dimmer on primary side of transformer.
Agency Approval ETL listed for use in cabinets and furniture with appropriate NSL transformer only.
Warranty One year.

Xenon Mini Light Photometrics

Xenon Mini Light (Model no. XML-F-XX)
Lumens = 131 | Watts = 18

This chart is better viewed on a desktop computer or by turning your screen horizontal.

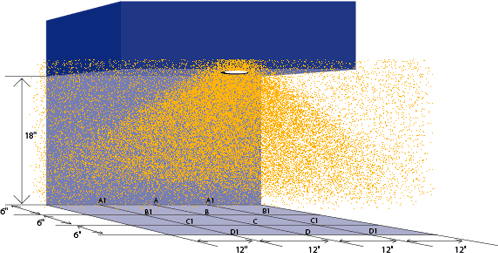

Kitchen Cabinet Photometrics

Height=18"
Grid Location: A A1 B B1 C C1 D D1
Illuminance in Footcandles: 25.8 11.2 32.9 12.5 23.4 9.9 11.4 6.1
