NSL LED Task Star Lighting

NSL LED Task Star Under Cabinet Lighting

LTS-1	9"	1 LED
LTS-2	17.5"	2 LED
LTS-3	26"	3 LED
LTS-4	34.5"	4 LED
LTS-5	38.5"	5 LED

Self-contained, complete LED surface mount 120VAC under-cabinet light uses 5.2 watt LEDs in 1, 2, 3, 4 or 5 LED fixtures. Fixture with numerous knockouts and frosted glass lens with low-profile release hinged to aluminum frame; easy to install and safe hardwire or with optional power cord.

Hardwire can be parallel wired ("daisy chained") up to 150 LED Modules.

Frosted glass lens
White or Black powder coating; Bronze or Natural Aluminum

ETL Listed for indoor and damp locations.
Dimmable!

Also available in Xenon. NSL Xenon Task Lights >

NSL LED Task Star Lighting

Completely self-contained under counter light fixture with replaceable 120VDC LED Modules included. Dimmable. Twice the light output as Xenon/Halogen technology with 72% energy savings. 120VAC in and out up to 150 replaceable LED Modules per 15A tap. Numerous contractor preferred 1/2" knockouts in each fixture. Offered in five sizes and four fixture finishes. UL Listed Damp Location.

Applications

• Under Cabinet Task Light
• Over Cabinet Accent Light
• Work Stations
• Laboratories
• Display Cases and Exhibits
• Merchandising
• Indirect Accent Light
• Wall Units and Bars

Features

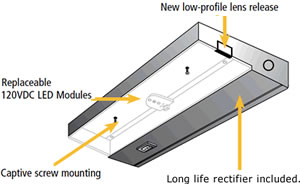

• Replaceable 120VDC LED Modules
• The same light output of Xenon or Halogen technology
• Pleasingly warm color temperature of 3100K
• Dimmable
• Captive screw mounting
• Energy usage from 5.2 to 26 watts per fixture
• Maximum of 150 LED modules per 120VAC, 15AMP circuit
• New low-profile lens release
• Long life rectifier included.
• No integral LED driver required 120VAC in and out of fixture
• Uses standard household Romex wire input/output
• Push-in connectors included for ease of power input
• Light, efficient aluminum frame stamped for 120V hard wire input
• Available in 4 colors: Aluminum, Black, Bronze and White
• Available in five fixture lengths
• Numerouse 1/2" knockouts
• Indoor and Damp Locations

LED Task Star	Hard Wire Version (HW) Only ~ Dimmable! Number of LEDs per Fixture:  1=1 LED ,  2=2 LEDs,  3=3 LEDs,  4=4 LEDs,  5=5 LEDs Color Options:   WH=White, BZ=Bronze, AL=Aluminum, BK=Black
	LTS-1-HW/WH
	LTS-1-HW/BZ
	LTS-1-HW/AL
	LTS-1-HW/BK
	LTS-2-HW/WH
	LTS-2-HW/BZ
	LTS-2-HW/AL
	LTS-2-HW/BK
	LTS-3-HW/WH
	LTS-3-HW/BZ
	LTS-3-HW/AL
	LTS-3-HW/BK
	LTS-4-HW/WH
	LTS-4-HW/BZ
	LTS-4-HW/AL
	LTS-4-HW/BK
	LTS-5-HW/WH
	LTS-5-HW/BZ
	LTS-5-HW/AL
	LTS-5-HW/BK
LED Task Star Replacement LED Module
	LEDMOD-32-FF	120VDC Replacement LED Module
LED Task Star Replacement Lens
	LTS-1-LENS	One LED Module Frosted Replacement Lens
	LTS-2-LENS	Two LED Module Frosted Replacement Lens
	LTS-3-LENS	Three LED Module Frosted Replacement Lens
	LTS-4-LENS	Four LED Module Frosted Replacement Lens
	LTS-5-LENS	Five LED Module Frosted Replacement Lens

Specifications
Voltage	120VAC input
Energy Usage	1 module = 5.2 watts, 2 module = 10.4 watts, 3 module = 15.6 watts, 4 module = 20.8 watts, 5 module = 26 watts
LED Color Temperature	3100K +/- 200K
LED Module Life	Replaceable 120VDC LED Module rated at 40,000 hours
Fixture Finish	White or black powder coating; Bronze, or natural aluminum
Construction	Aluminum extruded frame with injection molded ends for low Fixture weight and consistency of finish.
Lens	Frosted glass for even light distribution. Hinged to aluminum frame for ease of Fixture installation and security. Low-profile lens release.
Wiring Options	Hardwire can be parallel wired ("daisy chained") up to 150 LED Modules.
Dimming	Dimmable with standard 120VAC dimmer. See instructions for details.
Agency Approval	UL listed and labeled. Damp Location.
Warranty	Three years.

LED Task Star Photometrics

Under Cabinet Applications

3 LED Module Task Star (Model no. LTS-3-HW/WH)
Lumens = 446 | Watts = 15.6
