Path Light Archive

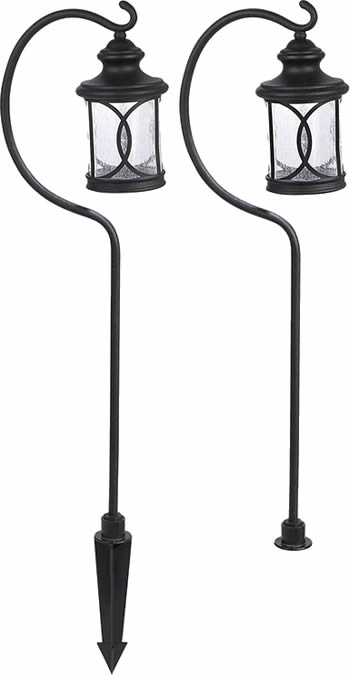

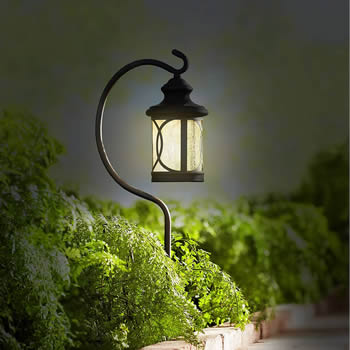

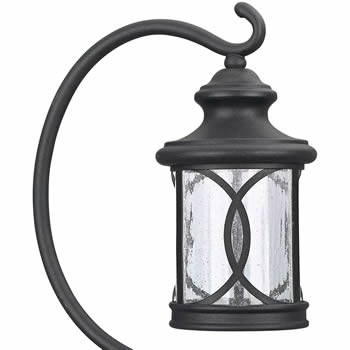

John Timberland Capistrano Landscape and Shepherd's Crook Path Lights

Built-in 4 watt LED module
340 lumen light output, comparable to a 35 watt incandescent
3000K color temperature

Open Bottom
119-degree beam spread

Lantern 4.5" wide
Path Light 23" high, 8.25" extension
Includes 6" ground stake and wire

Sold separately or in kits

Set of 2 Capistrano LED Landscape Path Lights
Includes two path lights
(no transformer or cable)

6-Piece Capistrano LED Landscape Path Light Set
Includes four path lights, one 12V 45 watt plug-in transformer and 100-feet of cable

8-Piece Capistrano LED Landscape Spotlight, Path Light Set
Includes two spot lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Spotlights have built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

8-Piece Capistrano LED Landscape Floodlight, Path Light Set
Includes two flood lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

10-Piece Capistrano LED Landscape Floodlight, Path Light Set
Includes two flood lights, six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

Transformer has a built-in photocell for dawn to dusk operation
Full ON mode or three AUTO settings (4, 6, and 8 hours)

Finish: Black with Clear Seeded glass
Material: Cast Aluminum, Powder Coated finish

Clear Seeded glass with Black or Oil Rubbed Bronze give this Arts & Crafts style outdoor collection bold Mission styling.

Rated for Outdoor Wet Locations

Coordinating Wall and Path Lights

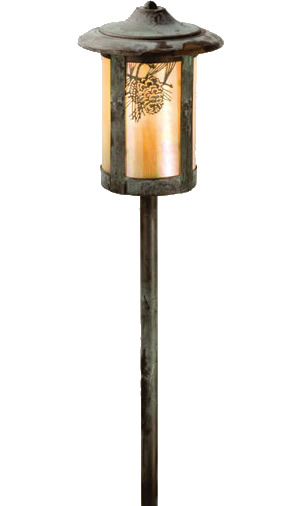

Meyda 73544 Fulton Winter Pine Post Landscape Post Path Light

Meyda Fulton Winter Pine Path Light on Amazon

21" High x 6" Wide Post Path Light

Finish: Verdigris
Panels: Iridized Beige curved glass panels

Height: 21" wide : 6"

1 x 20 watt G4

Pine Cone laden branches accent this handsome American Craftsman lantern landscape fixture. This handsome low voltage landscape fixture is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

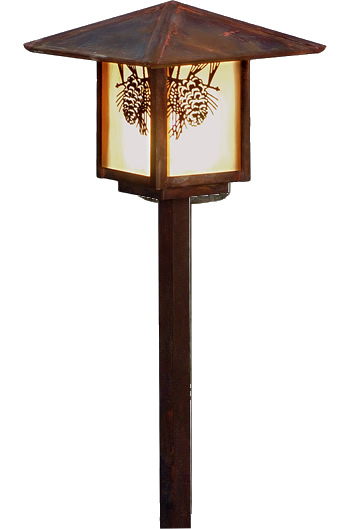

Meyda 73491 Seneca Winter Pine Post Landscape Post Path Light

Meyda Seneca Winter Pine Post Landscape Post Path Lights on Amazon

22" High x 7.5" Wide Post Path Light

Finish: Vintage Copper
Panels: Iridized Beige glass panels

Height: 22"
Total Square: 7.5"

1 x 20 watt G4

Pine Cone laden branches accent this handsome American Craftsman lantern landscape fixture. This handsome low voltage landscape fixture is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

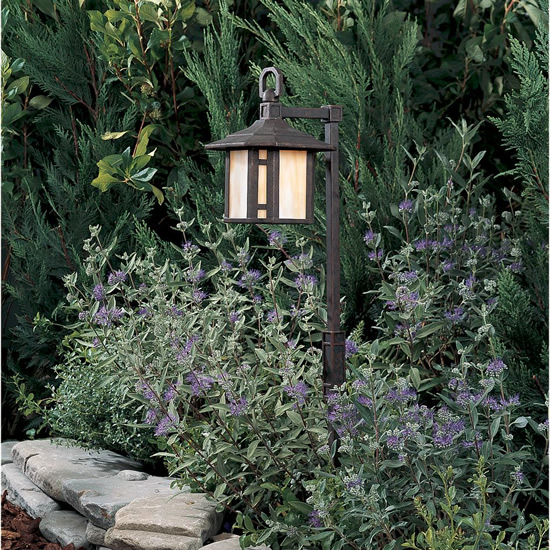

Progress Lighting P5272-46 Mission Path Light from the Arts and Crafts Collection

Progress Lighting Mission Arts and Crafts Collection on Amazon

1 x 18 watt 12v wedge base T5 Xenon Lamp included

5.5" x 6.5" wide x 28.75" high

Includes P8618-31 1/2 IP threaded adapter, mounting stake and connector

12 volt transformer needed, not included

Coordinating Wall and Post Lanterns available.

Finish: Weathered Bronze
Glass: Honey Art glass
Construction: Solid Brass

Arts and Crafts Style Outdoor Lighting >

1-year Limited Warranty
UL-CUL Wet Location Certified

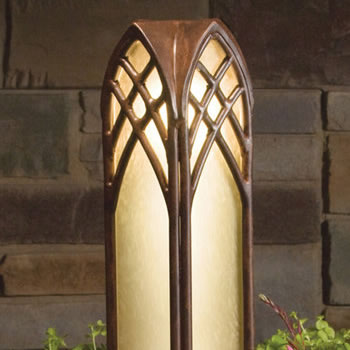

Kichler 15429 Cathedral 12 Volt Path Light

15429TZT Textured Tannery Bronze
T5 Wedge lamp
11.6W (VA) 912X (17023) Xenon lamp included

5" wide x 8" long x 27" high

Includes: 8" slotted in-ground stake and locknut
24" of usable #18-2, SPT-1W leads
Cable connectors included

Optional Accessories (not included, sold seperately) Surface Mounting Flange 15601
Surface Mounting Bracket 15607
14" Stake 15576BK
Power Post 15276BK

Kichler Transformers & Accessories >

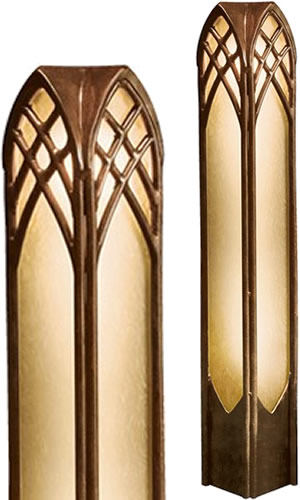

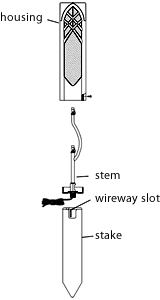

Kichler 15449 Cathedral Art Nouveau Bollard

2 x 16.25 watt T5 Wedge, included
12 volt, transformer needed

4.1" wide x 27" high
Lead Wire 22"

Finish: Textured Tannery Bronze
Glass: Citrine

Cathedral arches and interwoven bands created to form a transitional stanchion for the gardens edge.

Kichler Transformers & Accessories >

Rated for Wet Location

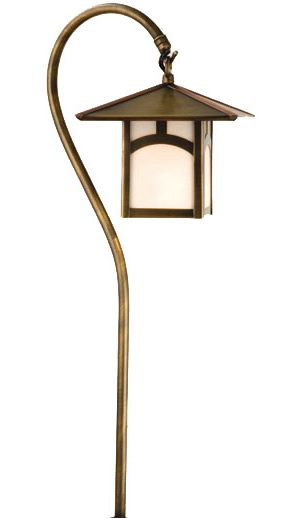

Meyda 73543 Seneca Hill Top Shepherd's Hook Path Light

Meyda Seneca Hill Top Shepherd's Hook Path Light on Amazon

Height: 25"
Lantern: 7.5" Square
With Hook Extension 10.5"

Finish: Antique
Panels: White glass panels

1 x 20 watt G4

This handsome low voltage American Craftsman lantern style landscape fixture is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

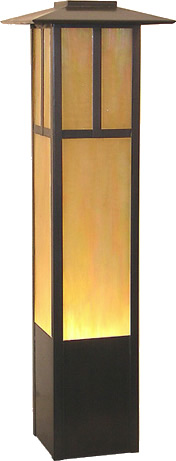

Meyda 30172 Mission Bollard

Meyda Mission Bollard on Amazon

26" High "T" Mission Bollard

Finish: Craftsman Brown
Panels: Iridized Beige glass panels

Height: 26"
Total Square: 8"

1 x 20 watt G4

This handsome low voltage landscape fixture that features a Mission T pattern is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

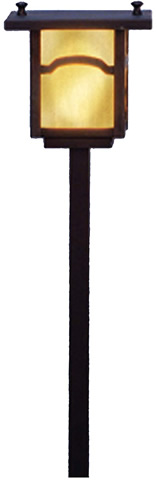

Meyda 73545 Hyde Park Mountain View Post Path Light

Meyda Hyde Park Mountain View Craftsman Post Path Light on Amazon

21" High "T" Mission Post Path Light

Finish: Craftsman Brown
Panels: Beige glass panels

Height: 21"
Total Square: 5.5"

1 x 20 watt G4

This handsome low voltage American Craftsman lantern landscape fixture is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

Meyda 73546 Hyde Park Craftsman Post Path Light

Meyda Hyde Park Craftsman Post Path Light on Amazon

21" High "T" Mission Post Path Light

Finish: Craftsman Brown
Panels: White glass panels

Height: 21"
Total Square: 5.5"

1 x 20 watt G4

This handsome low voltage American Craftsman lantern landscape fixture is handcrafted in the U.S.A. by Meyda Craftsman.

Every Meyda item is a unique, handcrafted work of art. Natural variations in the wide array of materials used to create each Meyda product make every item a masterpiece of its own.

Custom Crafted In Yorkville, New York, USA

Kichler 15334OB Concord 1-Lt 12V Onion Path and Spread Light

15334OB Olde Brick

Add a nautical touch to your landscaping with onion light inspired path lighting. A quintessential American style with over 100 years of history, this form began as lighting on fishing boats.

Glass: Clear seedy glass

Finish: Olde Brick

Lamp Included
Lead Wire Length 20"
12 volt
Safety Rated: 12v
Socket Base: Wedge T5
Number of 1
Max watt : 6.5W
5.5" wide x 27.5" high

John Timberland Braden Coastal Style Landscape and Path Lights

1 x 4 watt built-in LED
3000K, 350 lumens
(comparable to 30 watt incandescent)
51-degree beam spread

7.5" wide head x 23.5" high
10.25" deep
6.75" ground stake

Slim downward curving gooseneck arm with a round open cage shade.

Transformer has a built-in photocell for dawn to dusk operation
Full ON mode or three AUTO settings (4, 6, and 8 hours)

Finish: Textured Black
Material: Steel construction

Sold separately or in kits

2-Piece Braden Coastal LED Path Light Set
Includes two path lights

6-Piece Braden Coastal LED Path Light Set
Includes four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable

8-Piece Braden Coastal LED Path Light Set
Includes six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable

6-Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, two path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

6-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, two path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

8-Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

8-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

10 -Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

8-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

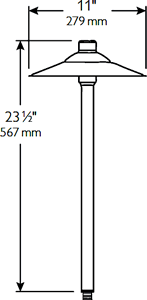

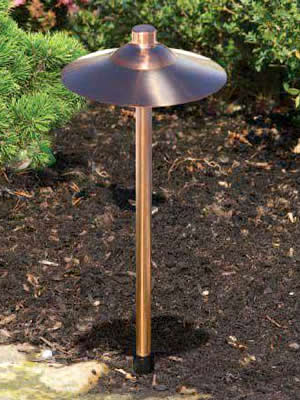

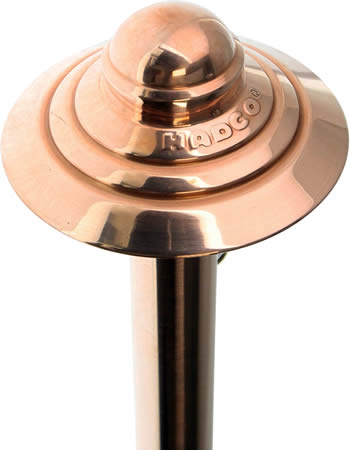

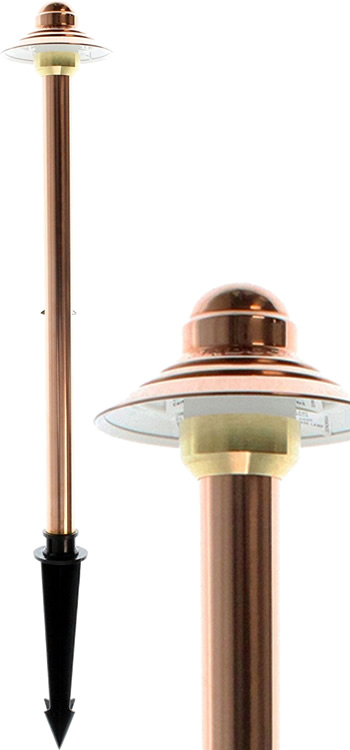

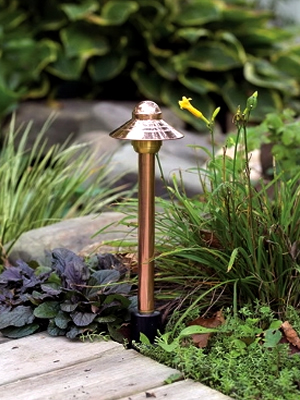

Hadco CUL9, CUL9D T3 Bi-pin or LED 12 Volt Copper Path Light

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

Hadco Copper Path Lights >

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire.
CCT: W Warm 3000K
C Cool 4000K

HOUSING: Spun solid copper roof with copper stem. Machined copper threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.
OPTICAL ASSEMBLY: Frosted tempered glass lens. Reflective white powdercoat on underside of roof.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 23 1/2" (597 mm)
Width: 11" (279 mm)

Mounting S7 Mounting Stake *1

Finish Natural Copper *2

*1 Mounting stake option available only with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL9.

Power Consoles, Transformers & Accessories  >

Hadco FUL1 Cast Aluminum Verde Small Floral Low Voltage Path Light

Finish G Verde

Hadco Tulip Flower Path Lights >

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Single-piece cast aluminum. Stem is extruded aluminum. ½" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 21 1/2" (544mm)
Width: 8 1/4" (209mm)

Power Consoles, Transformers, Stakes
Posts & Accessories >

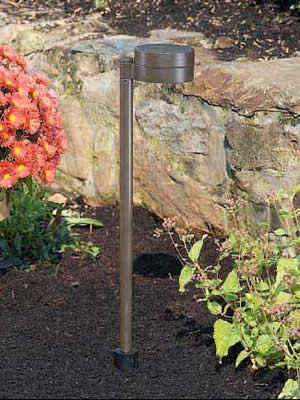

Hadco CPL12 Die-cast Aluminum Low Voltage PathLyte

Finish A Black
H Bronze

Hadco Contemporary Path Lights >

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Die-cast aluminum with twist-lock top for tool-less relamping. Stem is extruded aluminum. Single-piece molded silicone gasket to prevent water, dust, and insect filtration. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Clear tempered glass lens. Reflector is made of stamped, multi-faceted aluminum.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 20" (508mm)
Width: 4 3/4" (121mm)

S7 Mounting Stake is optional.

Power Consoles, Transformers & Accessories >

John Timberland Braden Coastal Style Landscape and Path Lights

1 x 4 watt built-in LED
3000K, 350 lumens
(comparable to 30 watt incandescent)
51-degree beam spread

7.5" wide head x 23.5" high
10.25" deep
6.75" ground stake

Slim downward curving gooseneck arm with a round open cage shade.

Transformer has a built-in photocell for dawn to dusk operation
Full ON mode or three AUTO settings (4, 6, and 8 hours)

Finish: Textured Black
Material: Steel construction

Sold separately or in kits

2-Piece Braden Coastal LED Path Light Set
Includes two path lights

6-Piece Braden Coastal LED Path Light Set
Includes four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable

8-Piece Braden Coastal LED Path Light Set
Includes six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable

6-Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, two path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

6-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, two path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

8-Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

8-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, four path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

10 -Piece Braden Coastal LED Landscape Floodlights, Path Light Set
Includes two flood lights, six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Floodlights 5.5" wide x 4" high

8-Piece Braden Coastal LED Landscape Spotlights, Path Light Set
Includes two spot lights, six path lights, one 12V 45 watt plug-in transformer and 50-feet of cable
Floodlights have 45-degree beam spread, built-in 4 watt LED, 340 lumens, comparable to a 35 watt incandescent, 3000K color temperature
Spotlights 3" wide x 7.5" high

John Timberland Casa Seville Path Lighting

Purchase Path Lights only or kits.
45 watt transformer will operate up to a total of ten 4 watt LED Path Lights and/or Flood Lights.

11-1907-511
1 x 28" high LED Path Light

78D52
2 x 28" high LED Path Light

83D88
2 x 28" high LED Path Light
2 x LED Flood Lights
1 x 45 watt 12 volt Black Plug-in Transformer
50 feet Black landscape cable

83D89
4 x 28" high LED Path Light
1 x 45 watt 12 volt Black Plug-in Transformer
50 feet Black landscape cable

83D91
4 x 28" high LED Path Light
2 x LED Flood Lights
1 x 45 watt 12 volt Black Plug-in Transformer
50 feet Black landscape cable

Path Lights
4 watt LED module
350 lumen light output
3000K Warm White color temperature
28" high
6.5" x 10.5" wide
Light head 9.25" high x 7" wide
Base 5" wide
8" long ground spike
Finish: Dark Walnut
Material: Steel and Glass
Glass: Hammered Champagne

Flood Lights
4 watt LED module
340 lumen light output
3000K Warm White color temperature
5.5" wide x 4" high
Finish: Bronze
Material: Aluminum
Glass: Heat-tempered Glass Lens

Transformer
45 watt 12 volt Plug-in Transformer
6.5" wide x 2.75" high
Extension 3.5"
Cord 69.5" long
Transformer has a built-in photocell for dawn to dusk operation.
Full ON mode, three AUTO settings (4, 6, and 8 hours)

Decadence flows from the Mediterranean-influenced design of this energy-efficient six-piece LED landscape path light set from the Casa Seville collection by John Timberland®. Add unmistakable romance and charm with a set of outdoor lights fashioned from dark walnut finish steel and hammered champagne glass. Scrolling arms seal the artistic rendering of a set of lights that works with existing low voltage landscape lighting systems.

More Path Light Kits >
John Timberland Casa Seville Wrought Iron Lighting >

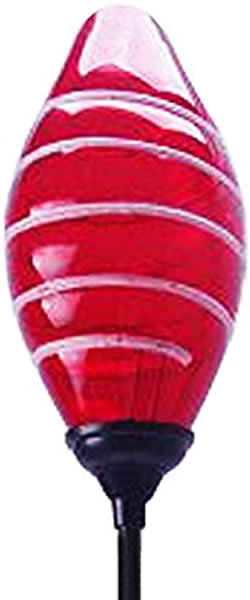

Yards & Beyond GPO010 Solar Glass Garden Stake Kit

Brighter Solar Glass Tower Garden Stake Lights on Amazon

Kit includes three Solar Stake Lights

3.2" x 33.3"

1 Lumen output
3 lights per set
Solar panels

Glass construction

1 AA batteries required. included

Yards & Beyond is designed to add accent lighting to your outdoor living space. Easy to install - no wires to run. Easy maintenance - weather proof and durable, simply hose off when dirty. Simply put, the easiest way to add accent lighting to your yard.

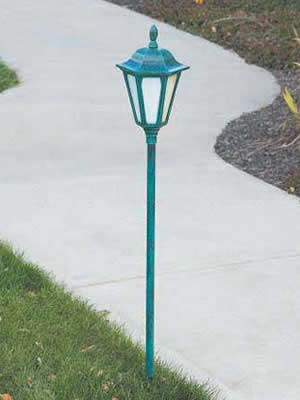

Hadco Cast Aluminum Architectural PathLyte AL43 12V Path Light

Hadco PathLytes on Amazon

Finish: G Verde

Hadco Architectural Path Lights >

Stem Path Light AL43
Removable roof for easy relamping.
Height : 11 1/4" (286mm)
Width: 7 3/8" (187mm)

HOUSING: Die-cast aluminum. Stem is extruded aluminum. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Opalescent glass panels.

Lamping: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. 12 Volt system requires remote transformer, not included. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Kichler 15444 Larkin Estate™ 12 Volt Path Light

Kichler Larkin Estate Path Light on Amazon
Kichler Larkin Estate Post Light on Amazon

15444OZ Olde Bronze
T5 Wedge lamp
16.25W (VA) 921X (17025) Xenon lamp

6" wide x 9.25" long x 27" high

Includes: 8" slotted in-ground stake and locknut
40" of usable #18-2, SPT-1W leads
Cable connectors included

Optional Accessories (not included, sold seperately)
Surface Mounting Flange 15601
Surface Mounting Bracket 15607
14" Stake 15576BK
Power Post 15276BK

Kichler 12 Volt Path and Spread Lights >
Kichler Transformers & Accessories >

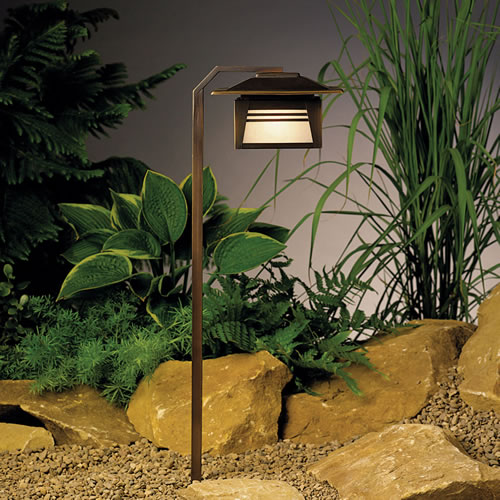

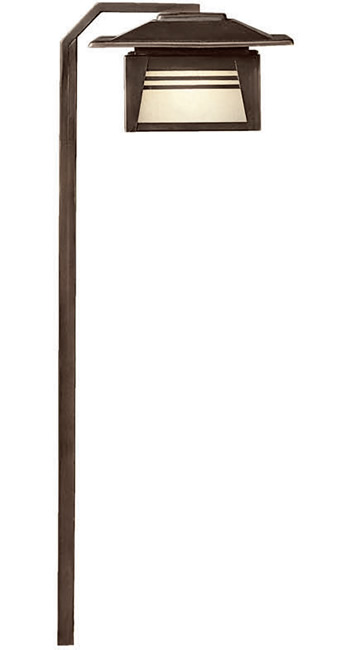

Kichler 15391 Zen Garden 12 Volt Path Light

15391OZ Olde Bronze
T5 Wedge lamp
11.6W (VA) 912X (17023) Xenon lamp included

7" wide x 8.5" long x 24" high

Includes: 8" slotted in-ground stake and locknut
30" of usable #18-2, SPT-1W leads
Cable connectors included

Optional Accessories (not included, sold seperately)
Surface Mounting Flange 15601
Surface Mounting Bracket 15607
14" Stake 15576BK
Power Post 15276BK

Hadco MSL Advent Low Voltage Die-cast Aluminum Path Lights

Finish: A Black
H Bronze
G Verde

MSL12
Height: 13 1/2" (343mm)

MSL18
Height: 19 1/2" (495mm)

Hadco Advent & Mushroom Path Lights >

HOUSING: Die-cast aluminum. Hidden fasteners and aluminum stem. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Lamping: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 13 1/2" (343mm)
Width: 4 1/2" (114mm)
Max. Weight: 1.32 lb.
