Hadco Architectural Path Lights - Low Voltage, Line Voltage and LED

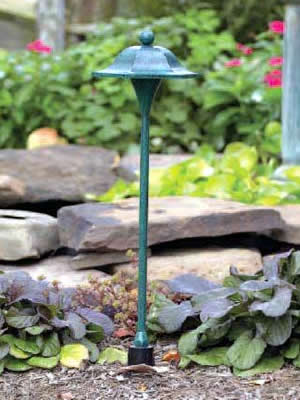

Hadco Cast Aluminum Architectural PathLyte AL43 12V Path Light

Hadco PathLytes on Amazon

Finish: G Verde

Stem Path Light AL43
Removable roof for easy relamping.
Height : 11 1/4" (286mm)
Width: 7 3/8" (187mm)

HOUSING: Die-cast aluminum. Stem is extruded aluminum. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Opalescent glass panels.

Lamping: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. 12 Volt system requires remote transformer, not included. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

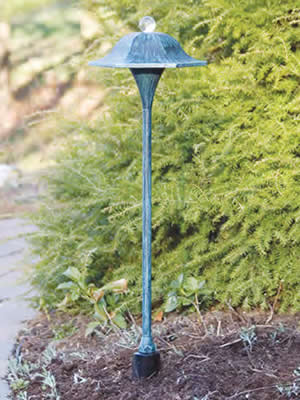

Hadco AL41 T3 Bi-pin and AL4D, AL41D LED Cast Aluminum Architectural Mushroom Path Lights

Hadco Path Lights on Amazon

Built to last with die-cast aluminum housing, stainless steel hinge and spring latch, it provides simple, tool-less entry. Which means maintenance without a screwdriver, and with no screws to lose.

Finish: A Black
H Bronze
G Verde

T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads.
WARRANTY: Three-year limited warranty.

LED
ELECTRICAL ASSEMBLY: OptoElectronix electronic LED driver. UL Class 2 -10°C to 50°C mimum starting temperature. Internal surge protector built into LED driver circuit Input voltage range (VAC): 10 - 14. 3.8 total watts consumed. Connects directly to 12V AC or 12V DC power source.
WARRANTY: Five-year limited warranty.

HOUSING: Die-cast aluminum. Stem is extruded aluminum. Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
ELECTRICAL ASSEMBLY: 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
OPTICAL ASSEMBLY: Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal. Spun aluminum reflector with white thermoset powdercoat.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

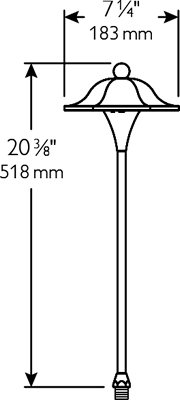

Height : 20 3/8" (518mm)
Width: 7 1/4" (183mm)

Mounting: S7 Mounting Stake
