Hadco Contemporary Path Lights - Low Voltage and LED

Hadco CPL12 Die-cast Aluminum Low Voltage PathLyte

Finish A Black
H Bronze

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Die-cast aluminum with twist-lock top for tool-less relamping. Stem is extruded aluminum. Single-piece molded silicone gasket to prevent water, dust, and insect filtration. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Clear tempered glass lens. Reflector is made of stamped, multi-faceted aluminum.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 20" (508mm)
Width: 4 3/4" (121mm)

S7 Mounting Stake is optional.

Power Consoles, Transformers & Accessories >

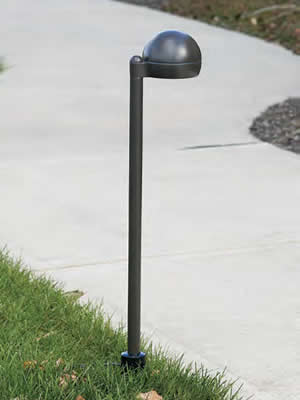

Hadco CPL21, CL2D Bi-pin T3 or LED Die-cast Aluminum Low Voltage PathLyte with Rounded Roof

Finish A Black
H Bronze
Verde (LED only)

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Low Voltage
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Three-year limited warranty.

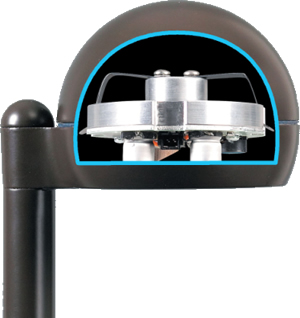

LED
Cool external temperatures - all below 36ºC - so the light is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European standard EN 563 both 1 second (74ºC for coated metal, 80ºC for glass) and 4 seconds (61ºC for coated metal, 70ºC for glass) of contact.
LAMPING: Philips Lumiled Rebel, Cool White (4,000K) or Warm White (3,000K)
ELECTRICAL ASSEMBLY: OptoElectronix electronic LED driver. UL Class 2 -10°C to 50°C mimum starting temperature. Internal surge protector built into LED driver circuit Input voltage range (VAC): 10 - 14. 3.8 total watts consumed. Connects directly to 12V AC or 12V DC power source. Low voltage transformer must be ordered to power the fixtures. 12 Volt system requires remote transformer, not included. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire.
WARRANTY: Five-year limited warranty.

HOUSING: Die-cast aluminum with twist-lock top for tool-less relamping. Stem is extruded aluminum. Single-piece molded silicone gasket to prevent water, dust, and insect filtration. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.
OPTICAL ASSEMBLY: Clear tempered glass lens. Reflector is made of stamped, multi-faceted aluminum.
CERTIFICATIONS: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

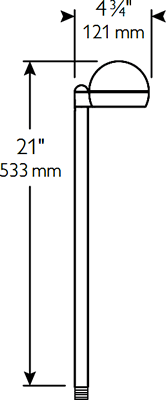

Height : 21" (533mm)
Width: 4 3/4" (121mm) H Bronze

S7 Mounting Stake is optional.

Power Consoles, Transformers & Accessories >

Hadco SPL18, SPL1 Small Pinnacle Die-cast Aluminum Low Voltage PathLyte

Finish A Black
G Verde

HOUSING: Die-cast aluminum. Stem is extruded aluminum. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Thermoset polyester powdercoat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting. Laboratory tested for superior weatherability and fade resistance in accordance with ASTM B117 specifications.

Lamping: 27W maximum S-8 (1156) lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

SPL18
Height : 18" (457mm)
Width: 6 5/8" (168mm)

SPL1
Height : 31" (787mm)
Width: 6 5/8" (168mm)

S7 Mounting Stake is optional.
