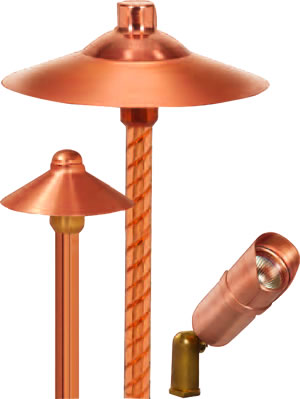

Hadco Copper Path Lights

Spun solid copper roof.

Rolled edges for sturdy construction and eliminating sharp edges.

Underside of roof has white powder coat finish for superior adhesion and enhanced reflectance.

Solid brass threaded fitter for tool-less relamping

Stem base with internally-mounted machined brass fitter.

(CUL10 shown)

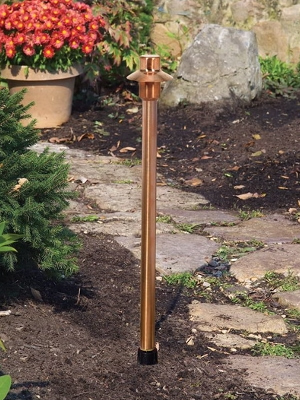

Hadco CUL2, CUL2D 12 Volt Bi-pin or LED Copper Path Light

Finish: Natural Copper *2

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire. Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed.
CCT: W Warm 3000K or C Cool 4000K

HOUSING: Spun solid copper roof with copper stem. Machined copper threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.
OPTICAL ASSEMBLY: Frosted tempered glass lens. Reflective white powdercoat on underside of roof. Clear borosilicate glass.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 18 1/2" (470mm)
Width: 3 1/2" (89mm)

Mounting S7 Mounting Stake *1

Finish Natural Copper *2
*1 Mounting stake option only available with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL2.

Power Consoles, Transformers & Accessories  >

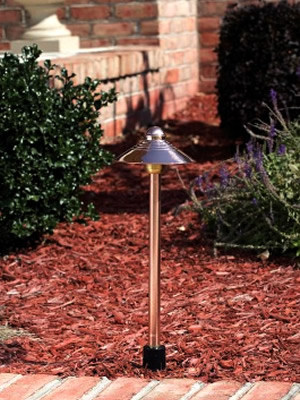

Hadco CUL6 12 Volt Copper Path Light

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: Spun solid copper roof with copper stem. Machined brass threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Reflective white powdercoat on underside of roof. Frosted tempered glass lens.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: Manufactured to ISO 9001:2008 Standards. ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.

Height : 16 1/4" (413mm)
Width: 6" (152mm)

Mounting S7 Mounting Stake *1

*1 Mounting stake option only available with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL6.

Power Consoles, Transformers & Accessories  >

Hadco CUL7, CUL7D T3 Bi-pin or LED 12 Volt Copper Path Light

Hadco Copper Path Lights on Amazon

The CUL7 features a spun solid copper roof and copper stem that will enhance any landscape and endure the elements for night beauty.

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire.

The CUL7 features a spun solid copper roof and copper stem that will enhance any landscape and endure the elements for night beauty.

HOUSING: Spun solid copper roof with copper stem. Machined copper threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Frosted tempered glass lens. Reflective white powdercoat on underside of roof.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 19 1/8" (485 mm)
Width: 6" (152mm)

Mounting S7 Mounting Stake *1

*1 Mounting stake option available only with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL7.

Power Consoles, Transformers & Accessories  >

Hadco CUL9, CUL9D T3 Bi-pin or LED 12 Volt Copper Path Light

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire.
CCT: W Warm 3000K
C Cool 4000K

HOUSING: Spun solid copper roof with copper stem. Machined copper threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.
OPTICAL ASSEMBLY: Frosted tempered glass lens. Reflective white powdercoat on underside of roof.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 23 1/2" (597 mm)
Width: 11" (279 mm)

Mounting S7 Mounting Stake *1

Finish Natural Copper *2

*1 Mounting stake option available only with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL9.

Power Consoles, Transformers & Accessories  >

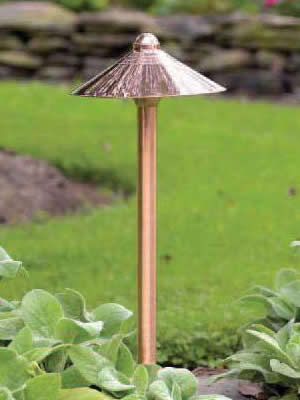

Hadco CUL10, CUL10D T3 Bi-pin or LED 12 Volt Copper Path Light

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: Color Temperature (CCT): 4,000K nominal or 3,000K nominal. Approximately 50,000 hours of operational life (at 25°C ambient temp. and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105° C, SPT-1W wire.

HOUSING: Spun solid copper roof with copper stem. Machined copper threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.
OPTICAL ASSEMBLY: Frosted tempered glass lens. Reflective white powdercoat on underside of roof.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

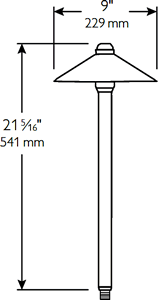

Height : 21 5/16" (541mm)
Width: 9" (228mm)
Max. Weight: 4.7 lb

Mounting S7 Mounting Stake *1

Finish Natural Copper *2

*1 Mounting stake option only available with Natural Copper Pathlyte.
*2 When ordering Natural Copper, product code will read as CUL10.

More Hadco Path Lights >
Power Consoles, Transformers & Accessories >

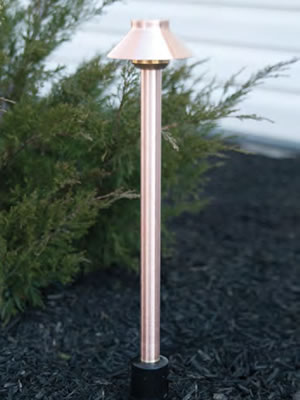

Hadco CUL14, CUL14D T3 Bi-pin or LED 12 Volt Copper Path Light

Finish: Natural Copper *2

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

20W T3 Bi-pin
LAMPING: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

LED
LAMPING: 4.2 total watts consumed. 4,000K color temperature (CCT) or 3,000K. Approximately 50,000 hours of operational life (at 25 C ambient temperature and 70% lumen maintenance). >80 CRI.
ELECTRICAL ASSEMBLY: Input voltage range (VAC): 11 - 15, (Magnetic low voltage transformer required). 4.2 total watts consumed. Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
CCT W Warm or C Cool

HOUSING: Spun solid copper roof with copper stem. Machined brass threaded adapter for tool-less relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Reflective white powdercoat on underside of roof. Frosted tempered glass lens.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 14-7/8" (378 mm)
Width: 3-11/16" (94 mm)

More Hadco Path Lights >
Power Consoles, Transformers & Accessories >

Hadco SML2 Cast Aluminum Path Light with Brushed Spun Copper Shade

Finish A Black
H Bronze
G Verde

Finish: Spun copper shade brushed finish with clear coat. Cast aluminum decorative arm. Black thermoset, hand rubbed-verde antiqued over black thermoset powdercoat, or Bronze thermoset powdercoat.

Xenon
LAMPING: Lamp is included with fixture. Xenon lamp life is approximately 10,000 hours. Higher wattages may be used only with glass panels installed. 18W maximum wedge base T-5 Xenon.
ELECTRICAL ASSEMBLY: 12 Volt system requires remote transformer, not included. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt fixture is pre-wired with 4-ft pigtail of 18-2 AWG. Wedge base socket type (T3-¼ or T5).

HOUSING: 1/2" schedule 40 Aluminum stem 20" long, threads to screw on to accessory mounting stake or junction box.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.

Height : 25 1/8" (638mm)
Width: 5" (125mm)

More Mission Style Landscape Lighting >

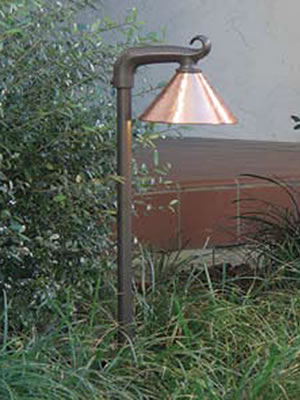

Hadco SML3 Cast Aluminum Path Light with Brushed Spun Copper Shade

Finish A Black
H Bronze
G Verde

Finish: Hammered copper shade brushed finish with clear coat. Cast aluminum decorative arm. Black thermoset, hand rubbed-verde antiqued over black thermoset powdercoat, or Bronze thermoset powdercoat.

Xenon
LAMPING: Lamp is included with fixture. Xenon lamp life is approximately 10,000 hours. Higher wattages may be used only with glass panels installed. 18W maximum wedge base T-5 Xenon.
ELECTRICAL ASSEMBLY: 12 Volt system requires remote transformer, not included. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt fixture is pre-wired with 4-ft pigtail of 18-2 AWG. Wedge base socket type (T3-¼ or T5).

HOUSING: Cast aluminum decorative arm. 1/2" schedule 40 Aluminum stem 20" long, threads to screw on to accessory mounting stake or junction box.
WARRANTY: Three-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.

Height : 25 1/8" (638mm)
Width: 5 1/2" (140mm)

More Mission Style Landscape Lighting >

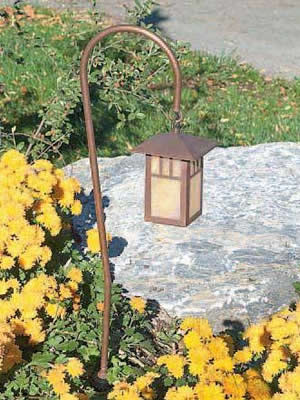

Hadco GASL4 Copper Mission Style Hook Mount Deco Glass Path Light

Finish AC Hand-Crafted Copper

Finish: Hand-formed solid copper and copper tubing. Antique Copper (AC) is a hand-applied dark copper patina.

Low Voltage
LAMPING: Lamp is included with fixture. 27W maximum S-8 (1156) lamp. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Single contact bayonet (S-8). 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Honey colored iridized art glass.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Height : 26 1/8" (664mm)
Width: 9 3/8" (238mm)

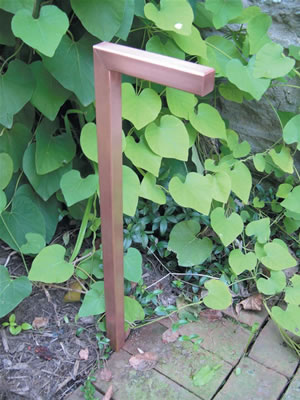

Hadco GAL3 Low Voltage Copper or Stainless Steel PathLyte

Finish: AC Hand-Crafted Copper, SS Stainless steel (Matte Finish)

GAL3-AC:
HOUSING: Solid copper square extrusion with solid copper end and brass fitter. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.

Finish: Natural Copper is bright polished, untreated copper. Color will age naturally to a fine dark copper patina.

GAL3-SS:
HOUSING: Stainless Steel. Tool-less lamp access. Easy access to lamp. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
Finish image SS Stainless steel (Matte Finish)

Xenon
LAMPING: 10W wedge base T3 ¼ (xenon) lamp is included with fixture. 12W maximum wedge base T3-¼ lamp. Lower wattage lamps are acceptable.
ELECTRICAL ASSEMBLY: Wedge base socket type (T3-¼ or T5). Socket is hinged for easy relamping. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

OPTICAL ASSEMBLY: Reflector is Stainless Steel.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

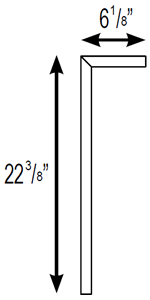

Height : 22 3/8" (568mm)
Width: 6 1/8" (156mm)

Hadco GAML1, GAML2 Copper Mushroom PathLytes (Path Lights)

Finish: AC Hand-Crafted Copper
Hand-formed solid copper, mushrooms have unique individual tops.

Finish: Antique Copper (AC) is a hand-applied dark copper patina.

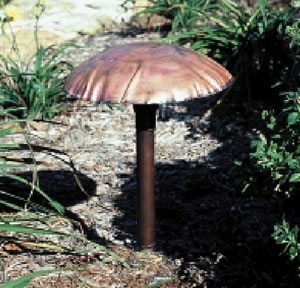

GAML1-AC
LAMPING: 10W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
Height : 12 1/2" (318mm)
Width: 9" (229mm)

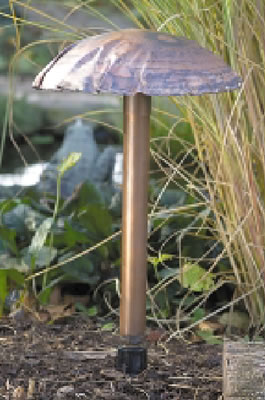

GAML2-AC
Lamping: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
Height : 17 1/8" (435mm)
Width: 11" (279mm)

HOUSING: 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Ordering Guide
Example: GAML1 AC
Product Code
GAML1 Copper Pathlyte
Finish
AC Hand-Crafted Copper

Hadco GAML4, GAML5 Low Voltage Copper PathLyte

Finish AC Hand-Crafted Copper

Finish: Hammered copper roof with hemmed edge and copper stem. Antique Copper (AC) is a hand-applied dark copper patina.

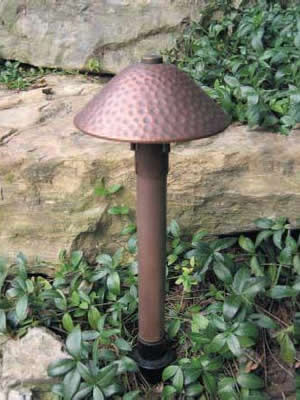

GAML4
Height : 11 7/8" (302mm)
Width: 5 1/2" (140mm)

Lamping: 10W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.

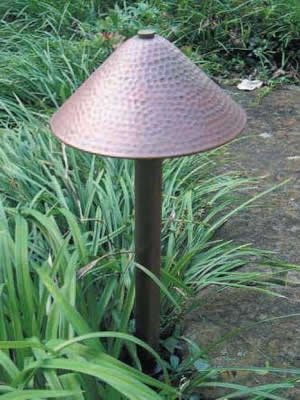

GAML5
Height : 17 1/8" (435mm)
Width: 9 1/16" (230mm)

Lamping: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.

Low Voltage
ELECTRICAL ASSEMBLY: Bi-pin socket type (G4) with 250° C high temperature teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.

HOUSING: 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
OPTICAL ASSEMBLY: Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
WARRANTY: Ten-year limited warranty.
CERTIFICATIONS: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
