Tech Lighting Line Voltage Track Heads

Tech Lighting 700_ENVL Envision LED

700PJENV PJ- Powerjack
700TTENV TT- T-Trak
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Die cast aluminum LED he ad, pivots vertically 90°, rotates horizontally 360°. Features horizontal locking mechanisms. LED module and optics ar e modular for ease of replacement. Front air intake design allows airflow past internal heat sink fins to rear exit vents while conserving a clean, thoughtful and seamless form. 19 watt isolated power supply sits within he ad to avoid further visual impact on track; dimmable digital logic controller operated in constant current mode. Field-replaceable proprietary 19 watt LED module. Three interchangeable optics: 15°, 25° and 40°. Holds up to two PAR16 / MR16 lenses or louvers, sold separately.

Output: 1074+ net lumens of optic/driver
Power Consumption: 18 watts
Efficacy: 47 net lumens/watt
Color Temperature: 2700K, 3000K and 3500K
CRI: 86
Life: 50,000 hours to 70%
No UV Rays
Dimmable to 10%
Minimum Waste: heat sink stays with fixture at end of LED module life
No mercury and ROHS compliant
5year Warranty

Center Beam Candle Power:
15°: 5300 CBCP
25°: 4012 CBCP
40°: 2308 CBCP

Type: LED 2700k, LED 3000k, LED 3500k
Beam Spread: 15°, 25°, 40°
Length: 6", 12", 18"
Finish: Satin Nickel or White

To order this head for use with Halo*, Juno*, or Lightolier* 120 volt singlecircuit track, order as follows: Substitute 700TT with one of the following: 700TH (fits Halo*), 700TJ (fits Juno*) or 700TI (fits Lightolier*) and by substituting the finish with one of the following: BS (Black/Satin Nickel), BW (Black/White), WS (White/Satin Nickel) or WW (White/White).
*Tech Lighting is not affiliated, nor is it endorsed by any of the companies listed nor does Tech Lighting distribute any of their products.

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; Colored Lens, Dichroic Lens, Diffuser Lens, Linear Spread Lens, Soft Focus Lens, UV Filter

Tech Lighting 700_OMC Om Ceramic Metal Halide MR16/PAR

700PJOMC Powerjack
700TTOMC T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Versatile die cast aluminum head, pivots vertically 180°, rotates horizontally 350°. Features vertical and horizontal locking mechanisms and decorative lens ring. Includes energy-saving electronic ballast in slim aluminum die cast housing. Input voltage 120v 50/60 hertz, THD <10%. Power Jack version is compatible with Power Jack Canopy with Ballast (sold separately). Ceramic metal halide MR16 with GX10 base, up to 39 watts; ceramic metal halide PAR20 lamp with E26 medium base, up to 39 watts; PAR30 long lamp up to 70 watts (lamp not included). Holds up to two lenses or louvers, sold separately.

Type: PAR16, PAR20, PAR30 Long
Wattage: 20 watt, 39 watt, 70 watt (par30 only)
Length: 5.1", 11.1"
Lens Ring: Frost or Solid
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; Colored Colored Lens, Dichroic Lens, Diffuser Lens, Linear Spread
Lens, Soft Focus Lens, UV Filter.
Mount this head on Halo, Juno or Lightolier Track.

Tech Lighting 700_OM Om Incandescent PAR

700PJOM PJ-Om PAR Powerjack
700TTOM TT-Om PAR T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Versatile die cast aluminum head, pivots vertically 180°, rotates horizontally 350°. Features vertical and horizontal locking mechanisms and decorative lens ring. 120 volt incandescent PAR16 lamp with GU10 base, up to 50 watts; 120 volt incandescent PAR20 lamp with E26 medium base, up to 50 watts; PAR30 Long or PAR30 Short lamp with E26 medium base, up to 75 watts (lamp not included). Holds up to two lenses or louvers, sold separately.

Type: PAR16, PAR20, PAR30 Long, PAR30 Short
Length: 3", 6", 12"
Lens Ring: Frost or Solid
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.
Mount this head on Halo, Juno or Lightolier Track.

Tech Lighting 700_SSC Sportster Ceramic Metal Halide MR16/PAR

700PJSSC PJ- Powerjack
700TTSSC TT- T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Minimal, stylish head, pivots vertically 180°, rotates horizontally 350°. Features vertical and horizontal locking mechanisms. Includes energy-saving electronic ballast in slim aluminum die-cast housing. Input voltage 120v 50/60 hertz, THD <10%. Power Jack version is compatible with Power Jack Canopy with CMH Ballast (sold separately). Ceramic metal halide MR16 lamp with GX10 base up to 39 watts; ceramic metal halide lamp with PAR20 E26 medium base up to 39 watts; PAR30 Long lamp with E26 medium base up to 70 watts (lamp not included). Note: GE CMH PAR20 lamps are not compatible with head due to a design change by GE.

Type: CMH MR16, PAR20, PAR30 LONG
Wattage: 20 watt, 39 watt, 70 watt (PAR30 only)
Length: See below, 11.1"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.
Mount this head on Halo, Juno or Lightolier Track.

Tech Lighting 700_SS Sportster Incandescent PAR

700PJSS PJ- Powerjack
700TTSS TT- T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Minimal, stylish head, pivots vertically 180°, rotates horizontally 350°. Features vertical and horizontal locking mechanisms. 120 volt incandescent PAR16 lamp with GU10 base up to 50 watts; PAR20 lamp with E26 medium base up to 50 watts; PAR30 lamp with E26 medium base up to 75 watts; PAR38 lamp with E26 medium base up to 120 watts (lamp not included).

Type: PAR16, PAR20, PAR30, PAR38
Length: See below, 11.1"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.
Mount this head on Halo, Juno or Lightolier Track.

Tech Lighting 700_SPTC Spot Ceramic Metal Halide PAR

700PJSPTC PJ-Spot CMH Powerjack
700TTSPTC TT-Spot CMH T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Classic die cast aluminum head, pivots vertically 180°, rotates horizontally 350°. Features vertical and horizontal locking mechanisms. Includes energy-saving electronic ballast in slim aluminum die-cast housing. Input v oltage 120v 50/60 hertz, THD <10%. Power Jack version is compatible with Power Jack Canopy with Ballast (sold separately). Ceramic metal halide PAR20 lamp with E26 medium base up to 39 watts (lamp not included). Holds up to two lenses or louvers, sold separately.

Type: PAR20
Wattage: 20 watt, 30 watt
Length: 5.6", 11.1"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.

Tech Lighting 700_SPT Spot Incandescent PAR

700PJSPT PJ-Spot PAR Powerjack
700TTSPT TT-Spot PAR T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Classic die cast aluminum head, pivots vertically 180°, rotates horizontally 350°. Features
vertical and horizontal locking mechanisms. 120 volt incandescent PAR20 lamp with E26 medium base up to 50 watts; PAR30 Short lamp with E26 medium base up to 75 watts (lamp not included). Holds up to two lenses or louvers, sold separately.

Type: PAR20, PAR30 Short
Length: See below, 11.1"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.

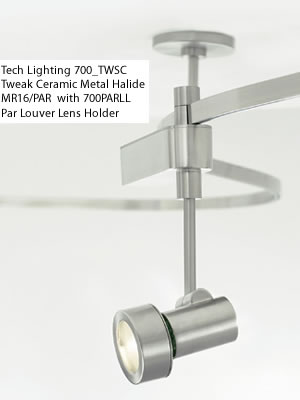

Tech Lighting 700_TWSC Tweak Ceramic Metal Halide MR16/PAR

700PJTWSC PJ-Tweak CMH Powerjack
700TTTWSC TT-Tweak CMH T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Minimal head pivots vertically 180°, rotates horizontally 350°. Features horizontal locking mechanisms. Includes energy-saving electronic ballast in slim aluminum die cast housing. Input voltage 120v 50/60 hertz; THD <10%. Power Jack version is compatible with Power Jack Canopy with CMH Ballast (s old separately). Ceramic metal halide MR16 lamp with GX10 base up to 39 watts; ceramic metal halide PAR20 lamp with E26 medium base up to 39 watts; PAR30 long lamp with E26 medium base up to 70 watts (lamp not included). May be accessorized with PAR Louver Lens Holder (sold separately).

Type: CMH MR16, PAR20, PAR30 LONG
Wattage: 20 watt, 39 watt, 70 watt (par30 only)
Length: 6", 12"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.

Tech Lighting 700PARLL PAR Louver Lens Holder

700PARLL16 MR16/PAR16 Louver Lens Holder

Secures to front of Tweak head. MR16/PAR16 size holds one lens or louver; PAR20, PAR30 and PAR38 sizes hold up to two lenses or louvers (sold separately). Lamps not included. LineVoltage PAR16 GU10 lamp up to 50 watts. Line Voltage CMH MR16 lamp up to 39 watts. LineVoltage PAR20 lamp up to 50 watts. LineVoltage CMH PAR20 lamp up to 39 watts. LineVoltage PAR30 lamp up to 75 watts. LineVoltage CMH PAR30 Long lamp up to 70 watts. LineVoltage PAR38 lamp up to 120 watts.

Tech Lighting Shades, Shields, Filters & Lenses
PAR16 size hold one lens or louver.
PAR20 and PAR30 Long, sizes hold up to two lenses or louvers.
Order separately.

Type: CMH MR16, PAR20, PAR30 LONG
Finish: Satin Nickel or White

Tech Lighting 700_TWS Tweak Incandescent PAR

700PJTWS PJ-Tweak PAR Powerjack
700TTTWS TT-Tweak PAR T~TRAK
Powerjack, Single-Circuit T~TRAK, Two-Circuit T~TRAK

Minimal head pivots vertically 180°, rotates horizontally 350°. Features horizontal locking mechanism. Dimmable with a standard incandescent dimmer. 120 volt incandescent PAR16 lamp with GU10 base up to 50 watts; PAR20 lamp with E26 medium base up to 50 watts; PAR30 lamp with E26 medium base up to 75 watts; PAR38 lamp with E26 medium base up to 120 watts (lamp not included). May be accessorized with PAR Louver Lens Holder (sold separately).

Type: PAR16, PAR20, PAR30, PAR38
Length: 2.5", 6", 12"
Finish: Satin Nickel or White

Tech Lighting Shades, Shields, Filters & Lenses
Holds up to two accessories, sold separately; eggcrate louver, glass lens, or UV filter.

Tech Lighting 700PARLL PAR Louver Lens Holder

700PARLL20 PAR20 Louver Lens Holder
700PARLL30 PAR30 Louver Lens Holder
700PARLL38 PAR38 Louver Lens Holder

Secures to front of Tweak head. MR16/PAR16 size holds one lens or louver; PAR20, PAR30 and PAR38 sizes hold up to two lenses or louvers (sold separately). Lamps not included. LineVoltage PAR16 GU10 lamp up to 50 watts. Line Voltage CMH MR16 lamp up to 39 watts. LineVoltage PAR20 lamp up to 50 watts. LineVoltage CMH PAR20 lamp up to 39 watts. LineVoltage PAR30 lamp up to 75 watts. LineVoltage CMH PAR30 Long lamp up to 70 watts. LineVoltage PAR38 lamp up to 120 watts.

Tech Lighting Shades, Shields, Filters & Lenses
PAR16 size hold one lens or louver.
PAR20 and PAR30 Long, sizes hold up to two lenses or louvers.
Order separately.

Type: CMH MR16, PAR20, PAR30 LONG
Finish: Satin Nickel or White

Tech Lighting 700PJCINC Power Jack Canopy

700PJCINC PJ-Canopy Incandescent

Mounts to a standard 4" junction box with round plaster ring (provided by electrician). One Power Jack port; for ceiling mount only. For use with Power Jack heads below (sold separately).

Finish: Black, Satin Nickel or White

Compatible Incandescent Heads (sold separately, above)
All of the line-voltage heads shown on these pages are available for Power Jack.

Tweak Incandescent,Breeze Incandescent, Sportster Incandescent PAR, Spot Incandescent PAR, Om Incandescent PAR

Tech Lighting 700PJCCMH Power Jack Canopy

700PJCCMH PJ-Canopy w/CMH Ballast

Power Jack Canopy Mounts to a standard 4" junction box with round plaster ring (provided by electrician). One Power Jack port; for ceiling mount only. For use with Power Jack heads below (sold separately, above).

Wattage: 20 watts, 39 watts, 70 watts
Finish: Black, Satin Nickel or White

Compatible CMH Heads (sold separately, above)
All of the line-voltage heads shown on these pages are available for Power Jack.

Breeze Ceramic Metal Halide T4, Sportster Ceramic Metal Halide MR16 / PAR, Om ceramic Metal Halide MR16 / PAR, Om Ceramic Metal Halide t4, Tweak Ceramic Metal Halide MR16 / PAR
