LBL Monorail

Customize Your LBL Monorail System

LBL Monorail
Single Circuit & 2-Circuit Monorail System

LBL low voltage monorail system can be shaped in the field and designed and cut to navigate curves for custom designs. It is available in straight, curved or circle kits with everything you need, then customize with any LBL spotlights or pendants. Or design your own custom Monorail System.

LBL Monorail is also available illuminated.

Design your rail.

  • Determine what you want to light.
  • Decide where track heads, pendants or both will be placed to direct light where you want it.
  • Design the Monorail run, connecting the lights.
    Monorail can be shaped to follow room architecture or create an organic shape.
    You can sketch out your room on paper. Draw in your lights, then decide how you want to design the track to suspend them.
    You could use string to lay out your design on the floor to determine your length, especially if you have an especially curvy run.

    Rail is available in connectable four or eight foot sections to be bent in the field horizontally to a radius as small as 6" and vertically to a radius as small as 24" as needed or used as a straight section.
    Precurved pieces, prebent spirals and circles are available in a variety of sizes.
    All rail pieces are field-cuttable and bendable.
  • Connectors allow monorail to make sharp angles or join in a "T" or "X."
  • Dead-End connectors allow you to switch and dim sections of rail separately.
  • Finish your rail with end caps.
  • Choose a finish; Satin Nickel or Dark Bronze.
  • Or choose a kit for a lower cost simple setup.

Determine your mounting.

  • Determine how far from the ceiling you would you like your rail to run.
    LBL Monorail can be installed nearly flush to the ceiling. Rigid standoffs suspend track up to 96". Adjustable cable standoffs hang up to 25'.
  • Rail can be curved horizontally or vertically, to run up and down.
  • Rigid or cable suspensions mount to flat ceiling, T-Grid ceiling using a clip or sloped ceilings using a Standoff Ball Joint Assembly.
  • Unique Telescoping Rigid Standoffs make height adjustment easier.
  • Use a support every 3 feet.
  • The total number of supports depends on the shape of the track layout.
  • A rigid power feed may count as a support.
  • Systems with very unique shapes or many pendants may require additional supports.
  • When mounting on concrete ceiling or wall, use a masonry adapter.

Choose your lights.

  • Decide where the fixtures should be installed to put light where you want it.
  • Select from an array of low voltage track heads and pendants.
  • Add optional colorful and decorative accessories and functional optical controls.

Select your transformer.

  • Add up the wattage from the lights you have chosen.
  • Choose 12 or 24 volt. LBL Monorail has a maximum capacity of 300 watts at 12 volts or 600 watts at 24 volts.

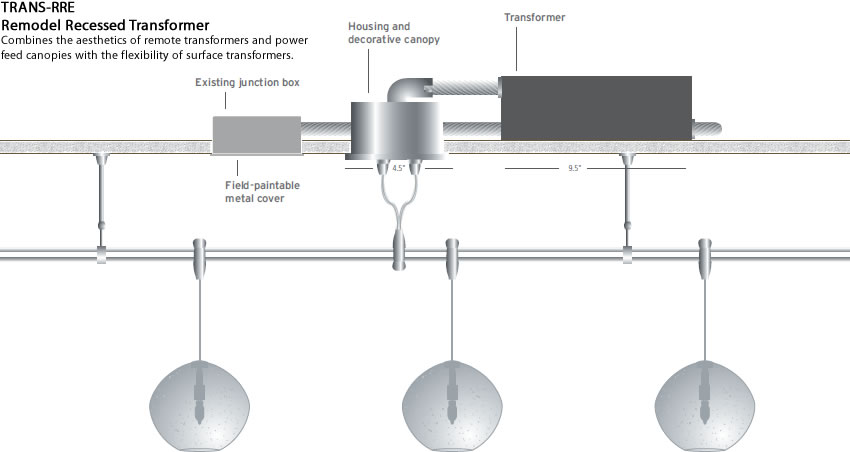

  • Select a visible surface mount transformer or a hidden remote transformer with power feed canopy.
  • Surface mount transformers install directly to a standard junction box.
    Smaller electronic surface mount transformers are well suited for small runs.
    Magnetic surface mount tranformers have a higher wattage capacity.
  • Remote mount magnetic transformers can be installed further away, in an attic or closet.
  • Magnetic transformers minimize any voltage drop potential.
  • Select your power feed if you are going to use a remote transformer.

(Or start with fixtures and accessories, then decide which layout will best support them.)

Monorail Kits

LBL Straight Rail Kit in Satin Nickel with Vent Heads with Frost Voti Glass, sold separately

LBL FUSIONKITBZ8ST, FUSIONKITSC8ST Straight Monorail Kit

Includes rail and Straight Conductive Connectors. Fixtures sold separately.

FUSIONKITSC8ST Monorail Kit Straight 96" SN

FUSIONKITBZ8ST Monorail Kit Straight 96" BZ

Monorail straight kit. Includes rail and Straight Conductive Connectors. Fixtures sold separately. Straight rail can be curved horizontally or vertically, to run up and down.

Finish:
FUSIONKITBZ8ST Bronze
FUSIONKITSC8ST Satin Nickel

  • (2) 48" straight rails
  • (1) set straight connectors
  • (4) end caps
  • (3) telescoping rigid standoffs (6-10")
  • (1) surface mount transformer housing with (1) 300w electronic transformer and 36" flexible coaxial feeder cable

Option: Add a set of Adjustable angle, "T", or "X" connectors to create the "T" and "X" shapes shown, rail must be cut. Rail is easily field cuttable.

LBL Soft Curve Kit with Dome-SI Pendants Mini-Dome II Swivel I heads
Fixtures sold separately.

LBL FUSIONKITBZ8CVST, FUSIONKITSC8CVST Soft Curve Monorail Kit

Includes rail and Straight Conductive Connectors. Fixtures sold separately.

FUSIONKITSC8CV Monorail Kit Soft Curve SN

FUSIONKITBZ8CV Monorail Kit Soft Curve BZ

Pre-bent Monorail soft curve kit. Includes rail and Straight Conductive Connectors. Fixtures sold separately. Pre-bent rail can be further curved horizontally or vertically, to run up and down.

Finish:
FUSIONKITBZ8CVST Bronze
FUSIONKITSC8CVST Satin Nickel

  • (2) 46" soft curve rails (78"dia., 1/5 round, 39" radius)
  • (4) end caps
  • (1) set of straight conductive connectors
  • (1) surface mount transformer housing with (1) 300w electronic transformer and 36" flexible coaxial feeder cable
  • (3) telescoping rigid standoffs (6-10")

Option: Add a set of Adjustable angle connectors

LBL 24" circle kit with Maraca SI pendants in Mocha
Fixtures sold separately.

LBL 12" Width Circle Monorail Kit

Includes rail and all necessary hardware. Fixtures sold separately.

FUSIONKITSC2RD Monorail Kit Circle 12" SN

FUSIONKITBZ2RD Monorail Kit Circle 12" BZ

Pre-bent Monorail circle kit. Includes rail and all necessary hardware. Fixtures sold separately.

Finish:
FUSIONKITBZ2RD Bronze
FUSIONKITSC2RD Satin Nickel

  • (3) 20"curved rails (24"dia., 1/3 round, 12" radius)
  • (4) end caps
  • (3) sets of straight conductive connectors
  • (1) surface mount transformer housing with (1) 300w electronic transformer and 36" flexible coaxial feeder cable
  • (3) telescoping rigid standoffs (6-10")

LBL 24" Width Circle Monorail Kit

Includes rail and all necessary hardware. Fixtures sold separately.

FUSIONKITSC4RD Monorail Kit Circle 24" SN

FUSIONKITBZ4RD Monorail Kit Circle 24" BZ

Pre-bent Monorail circle kit. Includes rail and all necessary hardware. Fixtures sold separately.

Finish:
FUSIONKITBZ4RD Bronze
FUSIONKITSC4RD Satin Nickel

  • 3 x 40.5"curved rails (48"Width, 1/3 round)
  • (4) end caps
  • (3) sets of straight conductive connectors
  • (1) surface mount transformer housing with (1) 300w electronic transformer and 36" flexible coaxial feeder cable
  • (4) telescoping rigid standoffs (6-10")

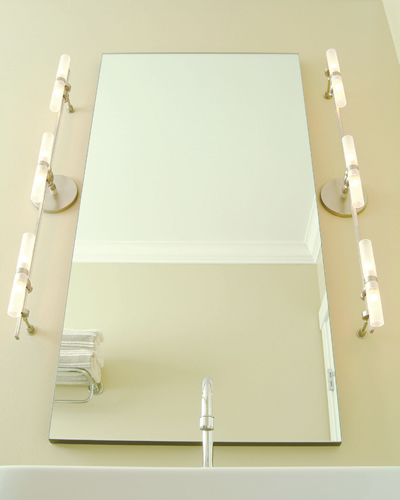

LBL KHBTWN Tubes Bath Monorail Kit

KHBTWNTBFRSC1B1004 Satin Nickel
KHBTWNTBFRBZ1B1004 Bronze

This innovative and contemporary Monorail lighting system offers the ideal combination of direct and ambient lighting for any bathroom mirror application.

Each kit consists of:

  • (1) 36" Monorail
  • (3) Low-voltage Twin Tube Heads
  • (2) Telescoping rigid standoffs
  • (1) Set of endcaps
  • (1) Remote canopy and power feed combination
  • (1) 75W electronic transformer (when ordered with 10W lamps)
    or (1) 150W remote electronic transformer (when ordered with 20W lamps)

Glass: Frost
Finish: Bronze or Satin Nickel

Monorail Chandelier

LBL Monorail Chandeliers
Above with Vision Chandelier Heads
Right with Icicle Chandelier Heads

LBL HS130 Monorail Chandeliers

HS13036 36" Monorail Chandelier 1-Tier ,
HS13048 48" Monorail Chandelier 1-Tier ,

Monorail Chandeliers: Sleek, modern lines on a Fusion Jack compatible chandelier. Includes transformer, canopy, cable supports and rail. Mounting hardware included. Field cuttable stems. 150W or 300W. Magnetic transformer dimmable with 600w low-voltage magnetic dimmer; electronic transformer dimmable with 600w low-voltage electronic dimmer. Decorative elements sold separately.

Monorail Chandelier Single Tier Round Surface Transformer
Monorail Chandelier Single Tier Round Remote Transformer

Finish:
BZ Bronze
SC Satin Nickel

Monorail Chandelier Single Tier Round Surface Transformer

Monorail Chandelier Single Tier Round Remote Transformer

Rail

LBL Single Circuit & 2-Circuit Monorail

Straight and Curved Satin Nickel Monorail
suspended by cables
Clay II Pendants in Terra Gray
Monorail Clay I Apollo Swivel II Heads in Terra Gray

Single Circuit Monorail
RAIL-ST-SC48 Monorail Rail 48" Satin Nickel
RAIL-ST-BZ48 Monorail Rail 48" Bronze
RAIL-ST-SC96 Monorail Rail 96" Satin Nickel
RAIL-ST-BZ96 Monorail Rail 96" Bronze

2-Circuit Monorail
RAIL-ST-SC48-2 MR2 Rail 48" Satin Nickel
RAIL-ST-BZ48-2 MR2 Rail 48" Bronze
RAIL-ST-SC96-2 MR2 Rail 96" Satin Nickel
RAIL-ST-BZ96-2 MR2 Rail 96" Bronze



LBL Single Circuit & 2-Circuit Monorail

Each piece of rail is shipped with straight conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails.

Create your own size and shape. All pieces are field-cuttable and bendable to a horizontal radius as small as 6 inches. Please consult factory for custom pre-bent options.

Rail is available in single circuit or 2-circuit connectable four or eight foot sections to be bent in the field horizontally to a radius as small as 6" and vertically to a radius as small as 24" as needed or used as a straight section.

Precurved pieces, prebent spirals and circles are available in a variety of sizes.

Color: Clear

Finish:
BZ Bronze
SC Satin Nickel



LBL Monorail Rail

RAIL-ST-(BZ,SC)48 – 48" Straight
RAIL-ST-(BZ,SC)96 – 96" Straight



LBL RAILCV3-(BZ,SC)62.5 12" Diameter Monorail Circle Rail

Single Circuit Monorail
RAILCV3-SC62.5 Monorail Curve 12IN R 120° S.Nickel
RAILCV3-BZ62.5 Monorail Curve 12IN R 120° Bronze

2-Circuit Monorail
RAILCV3-SC62.5-2 MR2 Curve 12IN R 120° S.Nickel
RAILCV3-BZ62.5-2 MR2 Curve 12IN R 120° Bronze

RAILCV3-(BZ,SC)62.5 – 20.5" 1/3 Round Curve

1⁄3 Round, Radius 12". Order three pieces to create a 24" diameter circle.
These are the same rail pieces in the 24" circle kit above.

To create a 24" diameter circle you will need (3) RAIL-CV-(BZ,SC)62.5 and (3) SCONNECTOR(BZ,SC)-M



LBL RAILCV2-(BZ,SC)125 24" Diameter Monorail Circle Rail

Single Circuit Monorail
RAILCV2-SC125 Monorail Curve 24IN R 120° S.Nickel
RAILCV2-BZ125 Monorail Curve 24IN R 120° Bronze

2-Circuit Monorail
RAILCV2-SC125-2 MR2 Curve 24IN R 120° S.Nickel
RAILCV2-BZ125-2 MR2 Curve 24IN R 120° Bronze

RAILCV2-(BZ,SC)125 – 40.5" 1/3 Round Curve

1⁄3 Round, Radius 24".
Order three pieces to create a 48" diameter
These are the same rail pieces in the 48" circle kit above.

To create a 48" diameter circle you will need (3) RAIL-CV-(BZ,SC)125 and (3) SCONNECTOR(BZ,SC)-M



LBL RAILCV1-(BZ,SC)117 Monorail Soft Curve Rail

Single Circuit Monorail
RAILCV1-SC117 Monorail Curve 39IN R 72° S.Nickel
RAILCV1-BZ117 Monorail Curve 39IN R 72° Bronze

2-Circuit Monorail
RAILCV1-SC117-2 MR2 Curve 39IN R 72° S.Nickel
RAILCV1-BZ117-2 MR2 Curve 39IN R 72° Bronze

RAILCV1-(BZ,SC)117 – 46" 1/5 Round Curve

78" Diameter, 1⁄5 Round, Radius 39".
Order five pieces to create a 78" diameter circle.

To create a 78" diameter circle you will need (5) RAIL-CV-(BZ,SC)117 and (5) SCONNECTOR(BZ,SC)-M



LBL Pre-bent Monorail Circle

Pre-bent Monorail circle. Includes rail and Straight Conductive Connectors. Fixtures and other hardware sold separately.

Single Circuit Monorail
RAILCVCIRC-SC36 Monorail Circle 36" Radius SN
RAILCVCIRC-BZ36 Monorail Circle 36" Radius BZ
RAILCVCIRC-SC48 Monorail Circle 48" Radius SN
RAILCVCIRC-BZ48 Monorail Circle 48" Radius BZ
RAILCVCIRC-SC60 Monorail Circle 60" Radius SN
RAILCVCIRC-BZ60 Monorail Circle 60" Radius BZ

2-Circuit Monorail
RAILCVCIRC-SC36-2 MR2 Circle 36" Radius SN
RAILCVCIRC-BZ36-2 MR2 Circle 36" Radius BZ
RAILCVCIRC-SC48-2 MR2 Circle 48" Radius SN
RAILCVCIRC-BZ48-2 MR2 Circle 48" Radius BZ
RAILCVCIRC-SC60-2 MR2 Circle 60" Radius SN
RAILCVCIRC-BZ60-2 MR2 Circle 60" Radius BZ



LBL Lighting RAILCVSPRL Monorail Pre-bent 32" Monorail Spiral, 48" Monorail Spiral

32" Monorail Spiral Kit
RAILCVSPRL-SC32

48" Monorail Spiral Kit
RAILCVSPRL-SC48

Monorail Pre-bent 32" Monorail Spiral, 48" Monorail Spiral. All pieces are field cuttable and include Straight Conductive Connectors.
Consult factory for custom pre-bent options.

32" Monorail Spiral Kit

  • Custom bent Monorail
  • Straight Conductive Connectors
  • End caps
  • Five Standoffs are required (sold separately)

48" Monorail Spiral Kit

  • Custom bent Monorail
  • Straight Conductive Connectors
  • End caps
  • Seven Standoffs are required (sold separately)

This is not a complete kit. A transformer, standoffs and powerfeeds are required. Complete with your choice of trackheads and or pendants.



LBL Lighting Crystal Ball Mini Pendants with Monorail Spiral

Blown glass Crystal Ball Mini Pendants suspended from custom bent LBL Monorail in a spiral pattern. Use your imagination and design your own custom LBL Monorail lighting.

To order this Installation: as shown above:
(3) HS264AM1B10MRL
(3) HS264BU1B10MRL
(3) HS264CR1B10MRL
(2) RAIL-CV3-SC62.5 (custom bent)
(2) RAIL-CV2-125 (custom bent)
(3) SCONNECTORSC
(5) HANGER-CBL-72
(1) REMOTECNPY-SC
(1) TRANS-RMTE-150M



LBL MEND Monorail End Caps

ENDCAPS Monorail End Caps
ENDCAPS-2
MR2 End Caps

Decorative metal caps to give a finished look to the ends of Monorail.

Sold as a 4 piece set.

Finish:
BZ Bronze
SC Satin Nickel

Connectors

LBL SCONNECTOR Straight Conductive Connectors

SCONNECTOR Monorail Straight Conductive Con ,

Straight conductive connectors join sections of Monorail together. Each piece of rail is shipped with straight conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails.

Sold as a pair.

Finish:
BZ Bronze
SC Satin Nickel



LBL ISOCONNECTORCL-M Straight Isolating Connectors

ISOCONNECTOR Monorail Isolating Connector Pair ,

Straight isolating connectors join sections of rail and isolate one powered run from another.
These are typically used to separate one circuit from the other circuit when using surface or remote dual-feed transformers and to separate multiple transformers on a continuous run. They are included with dual-feed surface transformers and power feed canopies. Order additional connectors if cutting and rejoining rails, sold as a pair.

Finish:
BZ Bronze
SC Satin Nickel



LBL ACONNECTOR Adjustable Angle Conductive Connectors

ACONNECTOR Monorail Adj Angle Connector ,

These connectors join sections of rail together allowing subtle to sharp horizontal angles. 35 ° minimum angle.

Sold as a pair.

Finish:
BZ Bronze
SC Satin Nickel



LBL TCONNECTOR "T" Conductive Connectors

TCONNECTOR Monorail T Conductive Conn ,

These conductive connectors join three sections of Monorail together to create a "T". Standoffs should be placed no more than 6" away from the connector.

Sold as a pair.

Finish:
BZ Bronze
SC Satin Nickel



LBL XCONNECTOR "X" Conductive Connectors

XCONNECTOR Monorail X Conductive Conn ,

These conductive connectors join four sections of Monorail together to create a four-way intersection. Standoffs should be placed no more than 6" away from the connector.

Sold as a pair.

Finish:
BZ Bronze
SC Satin Nickel



LBL VCONNECTOR Adjustable Angle Vertical Connector

VCONNECTOR Monorail Adj Angle Vertical Conn ,

These connectors join sections on Monorail together allowing subtle vertical angles.

Finish:
BZ Bronze
SC Satin Nickel

Mounting

LBL HANGER-ADJ Telescoping Rigid Standoffs

HANGER-ADJ Monorail Rigid Standoff ,

Rigid standoffs offer multifunction ceiling mounting in one part. Unique telescoping height adjustment and rotational head insert simplifies and perfects your installation.
Self-drilling drywall anchor included with all standoffs. Rotating head insert allows fine tuning of rail axis position and fixture orientation.

NOTE:
When mounting on concrete ceiling or wall, order one SCW-MASONARY-A per standoff.
Specify Surface Mounted Transformer or non-Direct Power Feed Canopy with Adjustable Cable or Telescoping Rigid Standoffs.

Length:

  • -1 2.5"–4"*
  • -2 6"–10"
  • -3 12"–24"
  • -4 24"–48"
  • -5 48"–96"

* When using with any surface mounted transformer, rail cannot be installed directly below the transformer with a 4" standoff.

Finish:
BZ Bronze
SC Satin Nickel



LBL HANGER-CBL Adjustable Cable Standoffs

HANGER-CBL Monorail Adj Cable Standoff ,

Clean looking and fully adjustable cable standoff for ceiling mounting. Griplock allows for easy one-touch shortening or lengthening in the field. Offered in four stock lengths. Additional custom length cable can be specified. Self-drilling drywall anchor included with all standoffs.

Length:

  • -6 6' of cable
  • -8 8' of cable
  • -18 18' of cable
  • -25 25' of cable

Finish:
BZ Bronze
SC Satin Nickel



LBL HANGERDIRADJ Direct Feed Telescoping Rigid Standoffs

HANGERDIRADJ Monorail Dir Fd Standoff ,

Universal telescoping standoffs offer adjustability and simplified ordering.
Use with most, EXCEPT 60w electronic flush.

NOTE: Specify Direct Feed Surface Transformer or Direct Power Feed Canopy with Direct Feed Rigid Standoffs.

Finish:
BZ Bronze
SC Satin Nickel



LBL HANGERDIRRC Direct Feed Rigid Standoffs

HANGERDIRRC Monorail Dir Fd Standoff For Cpy ,

Universal for all single-circuit direct power feed canopies and 60w electronic flush direct feed surface transformer.

NOTE: Specify Direct Feed Surface Transformer or Direct Power Feed Canopy with Direct Feed Telescoping Rigid Standoffs.

Finish:
BZ Bronze
SC Satin Nickel



LBL HANGERDIRPT Standoff for Pass-through Transformer

HANGERDIRPT Monorail Dir Fd Stand For Pass T ,

1" Standoffs specifically designed for flush mount monorail with flush Pass-through Transformer.

Finish:
BZ Bronze
SC Satin Nickel



LBL HANGERDIRMN Direct Feed Standoff for The Mini Transformer

HANGERDIRMN Monorail Dir Fd Stand For Min Tr ,

Direct Feed Standoffs specifically designed for monorail with The Mini Transformer.

Finish:
BZ Bronze
SC Satin Nickel



LBL WB-ADJ Wall Bracket

WB-ADJ Monorail Wall Bracket ,

With cable support allows for extended, cantelievered wall mount. Available only for 2.5-4", 6-10" and 12-24" standoffs. Telescoping Rigid Standoffs (not included).

Finish:
BZ Bronze
SC Satin Nickel



LBL BJ-ADJ Ball Joint

BJ-ADJ C Monorail Ball Joint ,

Attachment allows sloped ceiling mounting.
Adapts simply to any telescoping rigid standoff (not included).

Finish:
BZ Bronze
SC Satin Nickel



LBL CLIP-TB/MONO T-Grid Clip

CLIP-TB/MONO-1 or CLIP-TB/MONO-2 T-Grid Clip ,

Allows adaptation of any standoff to an inverted T-Grid ceiling rail. To be used with 15⁄16" (1) or 9⁄16" (2) T-Grid.

Surface Mounted Transformers

LBL TRANSDIRPTE300 Pass-Through 300W Surface Transformer

TRANSDIRPTE300SC Monorail Dir Fd Pasthru EL 300w sn ,
TRANSDIRPTE300BZ
Monorail Dir Fd Pasthru EL 300w bz ,

The Pass-Through
Sleek, minimalist design meets easy installation.
The Monorail practically hugs the ceiling. Mounts to a standard 4" square ceiling junction box with round plaster ring (provided by electrician). To be used with 1" Standoffs.
Not compatible with Pre-Bent S Monorail.

12 volt / 300W Electronic Pass-Through Single-Feed
Input: 1x120VAC/2.5A
Output: 1x300W**
** As a general rule when using LED fixtures we do not recommend using greater than 70% of specified maximum wattage on the transformer due to inrush current. For assistance, please contact our technical support department.

Compatible with LED fixtures.
Compatible with an Electronic Low-voltage Dimmer, 600W.

The Pass-Through combines a sleek design with the ability to use 1" standoffs and ease of installation. First, the installer mounts and wires the upper canopy in much the same way a standard line-voltage pendant would be mounted. Second, the installer connects the rail connector to the rail. Finally, the installer snaps the lower canopy into the upper canopy without the need for any tools. The electrical connections are made automatically due to the mating components. The transformer bay is housed completely in the bottom canopy, so should there be any problems with the transformer at any time, only the bottom canopy would need to be removed. The upper canopy and the entire Monorail run can remain in place. It's that easy.

Finish:
BZ Bronze
SC Satin Nickel

LBL TRANSDIRMNE300 Mini Direct Feed 300W Surface Transformer

TRANSDIRMNE300BZ Monorail Dir Fd Min Tr EL 300w bz ,
TRANSDIRMNE300SC
Monorail Dir Fd Min Tr EL 300w sn ,

The Mini
The Mini answers the question, how small can it be? At 1.4 inches deep and 5.25 inches in diameter, it is the smallest 300 watt surface Monorail transformer in the industry. It installs similarly to our existing family of 300 watt transformers and practically disappears on the Monorail system.

Truly minimalist design and the industry's smallest 300 watt surface transformer. Constructed of die-cast aluminum. Mounts to a standard 4" square ceiling junction box with round plaster ring (provided by electrician). To be used with special standoff specifically designed for this transformer.

12 volt / 300W Electronic Mini Direct Feed Single-Feed
Input: 1x120VAC/2.5A
Output: 1x300W**
** As a general rule when using LED fixtures we do not recommend using greater than 70% of specified maximum wattage on the transformer due to inrush current. For assistance, please contact our technical support department.

Compatible with LED fixtures.
Compatible with an Electronic Low-voltage Dimmer, 600W.

Finish:
BZ Bronze
SC Satin Nickel

LBL Surface Mounted Monorail Transformers

All Surface Mounted Transformers are encased in a finished metal housing and mount to any standard ceiling electrical box. Transformer and flexible feeder cleanly and attractively send power to your system. 72" length is standard for our feeder. It is easily shortened in the field. Longer lengths can be special ordered.

These transformers are all compatible with Telescoping Rigid or Adjustable Cable standoffs.

How to Calculate your Wattage Needs

To find which is right for your system, add up the total wattage of the pendants or heads you'll be using (the number of pendants or heads x the total lamp wattage per fixture = total wattage). A combination of wattages may be chosen as long as the maximum wattage allowed by the transformer is not exceeded.

** As a general rule when using LED fixtures we do not recommend using greater than 70% of the specified maximum wattage on the transformer due to inrush current.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
  Watt & Type Model Input Output Compatible Dimmer Archive Retail Price
12 volt/60W
Electronic Flush
Single-Feed
TRANS-SFE60-(BZ,SC)
TRANS-SFE60-(BZ,SC)/277
1x120VAC/.5A
1x277VAC/.22A
1x60W Electronic Low-voltage
Dimmer 600W
,
12 volt/60W
Electronic
Single-Feed
TRANS-SFE61-(BZ,SC)
TRANS-SFE61-(BZ,SC)/277
1x120VAC/.5A
1x277VAC/.22A
1x60W Electronic Low-voltage
Dimmer 600W
,
12 volt/100W
Electronic
Single-Feed
TRANS-SFE100-(BZ,SC)
TRANS-SFE100-(BZ,SC)/277
1x120VAC/.9A
1x277VAC/.4A
1x100W Electronic Low-voltage
Dimmer 600W
,
12 volt/150W
Electronic
Single-Feed
TRANS-SFE150-(BZ,SC) 1x120VAC/1.25A 1x150W Electronic Low-voltage
Dimmer 600W
,
12 volt/300W
Electronic
Single-Feed
TRANS-SFE300-(BZ,SC) 1x120VAC/2.5A 1x300W Electronic Low-voltage
Dimmer 600W
,
12 volt/75W
Magnetic
Single-Feed
TRANS-SFM75-(BZ,SC)
TRANS-SFM75-(BZ,SC)/277
1x120VAC/.7A
1x277VAC/.3A
1x75W Magnetic Low-voltage
Dimmer 600W
,
12 volt/150W
Magnetic
Single-Feed
TRANS-SFM150-(BZ,SC) 1x120VAC/1.25A 1x150W Magnetic Low-voltage
Dimmer 600W
,
12 volt/300W
Magnetic
Single-Feed
TRANS-SFM300-(BZ,SC) 1x120VAC/2.5A 1x300W Magnetic Low-voltage
Dimmer 600W
,
12 volt/300W
Magnetic
Single-Feed
TRANS-SFM300-(BZ,SC)/277 1x277VAC/1.1A 1x300W ,
24 volt/300W
Magnetic
Single-Feed
TRANS-SFM300-(BZ,SC)/24 1x120VAC/2.5A 1x300W ,
12 volt/600W
Magnetic
Dual-Feed
TRANS-SFM600-(BZ,SC) 1x120VAC/5A 2x300W ,
12 volt/600W
Magnetic
Dual-Feed
TRANS-SFM600-(BZ,SC)/277 1x277VAC/2.2A 2x300W Magnetic Low-voltage
Dimmer 1000W
,
24 volt/600W
Magnetic
Single-Feed
TRANS-SFM600-(BZ,SC)/24 1x120VAC/5A 1x600W Magnetic Low-voltage
Dimmer 1000W
,

Marked LED
These transformers are compatible with LED Heads and Pendants.

LBL Direct Feed Surface Mounted Transformers

Allows for the closest possible mounting of Monorail to the ceiling. Each mounts to a standard 4" junction box with round plaster ring.

These transformers are all compatible with Telescoping Rigid or Adjustable Cable standoffs.

How to Calculate your Wattage Needs

To find which is right for your system, add up the total wattage of the pendants or heads you'll be using (the number of pendants or heads x the total lamp wattage per fixture = total wattage). A combination of wattages may be chosen as long as the maximum wattage allowed by the transformer is not exceeded.

** As a general rule when using LED fixtures we do not recommend using greater than 70% of the specified maximum wattage on the transformer due to inrush current.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
  Watt & Type Model Input Output Compatible Dimmer Archive Retail Price
12 volt/60W
Electronic Flush
Single-Feed
TRANSDIR-SFE60(BZ,SC)
TRANSDIR-SFE60(BZ,SC)/277
1x120VAC/.5A
1x277VAC/.22A
1x60W** Electronic Low-voltage
Dimmer 600W
,
12 volt/60W
Electronic
Single-Feed
TRANSDIR-SFE61(BZ,SC)
TRANSDIR-SFE61(BZ,SC)/277
1x120VAC/.5A
x277VAC/.22A
1x60W** Electronic Low-voltage
Dimmer 600W
,
12 volt/100W
Electronic
Single-Feed
TRANSDIR-SFE100(BZ,SC)
TRANSDIR-SFE100(BZ,SC)/277
1x120VAC/.9A
1x277VAC/.4A
1x100W** Electronic Low-voltage
Dimmer 600W
,
12 volt/150W
Electronic
Single-Feed
TRANSDIR-SFE150(BZ,SC) 1x120VAC/1.25A 1x150W Electronic Low-voltage
Dimmer 600W
,
12 volt/300W
Electronic
Single-Feed
TRANSDIR-SFE300(BZ,SC) 1x120VAC/2.5A 1x300W Electronic Low-voltage
Dimmer 600W
,
12 volt/75W
Magnetic
Single-Feed
TRANSDIR-SFM75(BZ,SC)
TRANSDIR-SFM75(BZ,SC)/277
1x120VAC/.7A
1x277VAC/.3A
1x75W** Magnetic Low-voltage
Dimmer 600W
,
12 volt/150W
Magnetic
Single-Feed
TRANSDIR-SFM150(BZ,SC) 1x120VAC/1.25A 1x150W** Magnetic Low-voltage
Dimmer 600W
,
12 volt/300W
Magnetic
Single-Feed
TRANSDIR-SFM300(BZ,SC)
TRANSDIR-SFM300(BZ,SC)/277
1x120VAC/2.5A
1x277VAC/1.1A
1x300W** Magnetic Low-voltage
Dimmer 600W
,
24 volt/300W
Magnetic
Single-Feed
TRANSDIR-SFM300(BZ,SC)/24 1x120VAC/2.5A 1x300W Magnetic Low-voltage
Dimmer 600W
,
12 volt/600W
Magnetic
Dual-Feed
TRANSDIR-SFM600(BZ,SC) 1x120VAC/5A 2x300W** Magnetic Low-voltage
Dimmer 1000W
,
24 volt/600W
Magnetic
Single-Feed
TRANSDIR-SFM600(BZ,SC)/24V 1x120VAC/5A 1x600W Magnetic Low-voltage
Dimmer 1000W
,

Marked LED
These transformers are compatible with LED Heads and Pendants.

Remodel Recessed Transformer

LBL TRANS-RRE Remodel Recessed Transformer

TRANS-RRE150-BZ Monorail Remod trns El 150W BZ ,
TRANS-RRE150-SC
Monorail Remod trns El 150W SN ,
TRANS-RRE300-BZ
Monorail Remod trns El 300W BZ ,
TRANS-RRE300-SC
Monorail Remod trns El 300W SN ,

Combines the aesthetics of remote transformers and power feed canopies with the flexibility of surface transformers.

  • Looks similar from below the ceiling to the power feed canopies used with remote transformers; however, it does not require access to a remote location because the transformer sits just above the ceiling.
  • The decorative canopy is the only visible portion of the transformer once installed.
  • Access to the back of the ceiling is not needed.

Easy Installation

  • Installs similar to a remodel recessed downlight
  • In remodel applications, the electrician will need to install the Remodel Recessed Transformer in close proximity to an existing junction box, drill through the fi nished ceiling in the location where the Remodel Recessed Transformer will be installed, and cover the existing junction box with a thin, field paintable metal cover (included) as the NEC requires.
  • In new construction, the electrician can simply bring power to the Remodel Recessed Transformer directly.
  • Insulation must be kept at least 3" from the transformer and housing (non-IC).

The transformer is concealed inside a housing that recesses above the ceiling.

  • Available with a 150 watt or 300 watt electronic transformer.
  • The transformer is equipped with a fast acting short circuit and overload protection that will safely turn off the system should a short or overload occur.
  • The unit can be reset simply by fl ipping the wall switch off and on.
  • Dimmable with a 600w low-voltage electronic dimmer.

150 watt Electronic can power lamps totaling up to 150 watts.
300 watt Electronic can power lamps totaling up to 300 watts.

Finish:
BZ Bronze
SC Satin Nickel

Surface Mounted Transformers for 2-Circuit Monorail

LBL Direct Feed Surface Mounted Transformers for 2-Circuit Monorail

All 2-circuit surface mounted transformers are encased in a finished metal housing and mount to any standard ceiling electrical box. Typically, you use a surface transformer when an accessible location above the ceiling or in a utility closet is unavailable for installing a remote transformer. Please refer to the technical info on p. 518 for important transformer information and performance specs. 300W (2x150W) and 500W (2x250W) surface mount transformers are available to power your system. 10 AWG flexible feeder and 2-circuit wire cleanly and attractively sends power to your system. 72" length is standard for our feeder. It is easily shortened in the field. Longer lengths are available by special order.

These transformers are all compatible with Telescoping Rigid or Adjustable Cable standoffs.

How to Calculate your Wattage Needs

To find which is right for your system, add up the total wattage of the pendants or heads you'll be using (the number of pendants or heads x the total lamp wattage per fixture = total wattage). A combination of wattages may be chosen as long as the maximum wattage allowed by the transformer is not exceeded.

** As a general rule when using LED fixtures we do not recommend using greater than 70% of the specified maximum wattage on the transformer due to inrush current.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
  Watt & Type Model Input Output Compatible Dimmer Archive Retail Price
12 volt/300W
Electronic
Single-Feed
TRANS-SFE-300-2-
(BZ,SC)
2x120 VAC/
2x1.25A
Consists of two
independent
primaries.
2x150W
Up to (2) Electronic
Low voltage Dimmers
600W
,
12 volt/500 watt
Magnetic Toroidal
Integral Dimming
Coil Single-Feed
TRANS-SFM500-2-
(BZ,SC)
2x120 VAC/
2x2.08A
Consists of two
independent
primaries.
2x250W** Up to (2) Magnetic
Low voltage Dimmers
600W
TRANS-SFM500-2-SC MR2 Surfc Trans Mag 500W SN ,

Marked LED
These transformers are compatible with LED Heads and Pendants.

LBL Direct Power Surface Mounted Transformers for 2-Circuit Monorail

Allows for the closest possible mounting of 2-Circuit Monorail to the ceiling.
Each mounts to a standard 4" junction box.

These transformers are all compatible with Telescoping Rigid or Direct Feed standoffs.

How to Calculate your Wattage Needs

To find which is right for your system, add up the total wattage of the pendants or heads you'll be using (the number of pendants or heads x the total lamp wattage per fixture = total wattage). A combination of wattages may be chosen as long as the maximum wattage allowed by the transformer is not exceeded.

** As a general rule when using LED fixtures we do not recommend using greater than 70% of the specified maximum wattage on the transformer due to inrush current.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
  Watt & Type Model Input Output Compatible Dimmer Archive Retail Price
12 volt/300W
Electronic
Single-Feed
TRANSDIRSFE300(
BZ,SC)-2
2x120 VAC/
2x1.25A
Consists of two
independent
primaries.
2x150W
Up to (2) Electronic
Low voltage Dimmers
600W
,
12 volt/500 watt
Magnetic
Single-Feed
TRANSDIRSFM500(
BZ,SC)-2
2x120 VAC/
2x2.08A
Consists of two
independent
primaries.
2x250W** Up to (2) Magnetic
Low voltage Dimmers
600W
,

Marked LED
These transformers are compatible with LED Heads and Pendants.

Power Feed (if you choose a remote transformer)

LBL REMOTECNPY-FLEX Flexible End Power Feed

REMOTECNPY-FLEX-BZ Monorail 4IN Cnpy Flex End Feed BZ ,
REMOTECNPY-FLEX-SC
Monorail 4IN Cnpy Flex End Feed SN ,

Used to power a Monorail system from one end of the run. Includes a removable 4" round canopy and 144" of field-cuttable softwire leads. Mounts to a standard 4" junction box with round plaster ring (provided by electrician). Remote transformer sold separatel.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPY-WALL Wall (Direct End) Power Feed

REMOTECNPY-WALL-BZ Monorail 2.75 Cnpy Direct End BZ ,
REMOTECNPY-WALL-SC
Monorail 2.75 Cnpy Direct End SN ,

For single-feed remote transformer applications, to power the end of a run, from a perpendicular wall. Remote transformer sold separately. 2.75" round power feed canopy (conductive), 2" electrical box and matching isolated wall support (non-conductive; included).

Finish:
BZ Bronze
SC Satin Nickel

Power Feed Canopies

When using a remote transformer, a remote canopy is necessary. Power feed canopies are mounted to the ceiling or wall parallel to a rail run. Location can be anywhere along the rail. 2.75" Round Canopies mount to a special 2" electrical J-Box (included). 4" Round Canopies mount to a standard 4" electrical J-Box with round plaster ring (provided by electrician). Remote canopies include 72" standard length of a 10AWG flexible, power feeder and complementing rail adapter. The feeder is field-cuttable and easily shortened by the installer. Direct-feed canopies include a complementing rail adapter flush with canopy.

LBL REMOTECNPY-(BZ,SC)2 Monorail Single-feed Power Feed Canopy

REMOTECNPY Monorail 2.75IN Cnpy 3 ,

Mounts To: Special 2" square electrical box (included)
Compatible Standoff: Telescoping Rigid or Adjustable Cable

To be used with any single-feed remote transformer application.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPY-(BZ,SC) Monorail Single-feed Power Feed Canopy

REMOTECNPDIRW WMonorail 4IN Dir Fd Cnpy ,

All dual-feed rail connectors are separated by an isolating connector, included (ISOCONNECTORCL-M).

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Telescoping Rigid or Adjustable Cable

To be used with any single-feed remote transformer application.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPY-DF-(BZ,SC) Monorail Dual-feed Power Feed Canopy

REMOTECNPY Monorail 4IN Cnpy 36IN ,

All dual-feed rail connections are separated by an isolating connector, included (ISOCONNECTORCL-M).

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Telescoping Rigid or Adjustable Cable

To be used with any dual-feed remote transformer application.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPYDIR(BZ,SC) Monorail Direct Power Feed Canopy

REMOTECNPDIR WMonorail 4IN Dir Fd Cnpy ,

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Telescoping Rigid or Adjustable Cable

Allows for closest-to-ceiling possible mounting of Monorail.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPYDIRDF(BZ,SC) Monorail Direct Power Feed Canopy

REMOTECNPYDIRDF MR2 4IN Dir Fd Cpy Dual Fd ,

All dual-feed rail connections are separated by an isolating connector, included (ISOCONNECTORCL-M).

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Telescoping Rigid or Adjustable Cable

Allows for closest-to-ceiling possible mounting of Monorail.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPYDIR2(BZ,SC) Monorail Direct Power Feed Canopy

REMOTECNPYDIR2 Monorail 2.75 Dir Fd Cpy ,

Mounts To: Standard 2" square electrical box (included).
Compatible Standoff: Telescoping Rigid or Adjustable Cable

Allows for closest-to-ceiling possible mounting of Monorail.

Finish:
BZ Bronze
SC Satin Nickel



LBL REMOTECNPDIRW-(BZ,SC) Wall Monorail Power Feed Canopy

REMOTECNPDIRW W Monorail 4IN Dir Fd Cnpy ,

Wall monorail direct feed canopy

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Wall monorail direct feed standoff

When using a remote transformer, a remote canopy is necessary. Power feed canopies are directly behind a rail run. Location can be anywhere along the rail.

Finish:
BZ Bronze
SC Satin Nickel

Wall Monorail Accessories

LBL Wall Monorail

LBL Wall Monorail combines the elegant look of Monorail with wall-mounted hardware. Uses the same rail, with wall mounts and a variety of heads. The Wall Monorail Element Adapter allows any LBL Fusion Jack Heads to be used.

  • With cable support allows for extended, cantilevered wall mount.
  • Available only for 2.5-4", 6-10" and 12-24" standoffs.


LBL REMOTECNPDIRW-(BZ,SC) Wall Monorail Power Feed Canopy

REMOTECNPDIRW WMonorail 4IN Dir Fd Cnpy ,

Wall monorail direct feed canopy

Mounts To: Standard 4" square J-Box with round plaster ring (provided by electrician).
Compatible Standoff: Wall monorail direct feed standoff

When using a remote transformer, a remote canopy is necessary. Power feed canopies are directly behind a rail run. Location can be anywhere along the rail.

Finish:
BZ Bronze
SC Satin Nickel



HANGERDIRW Wall Monorail Direct Feed Standoff

HANGERDIRW WMonorail Dir Fd Standoff ,

Recommended every 3 feet. Versatile, telescoping standoffs allow you to choose your hanging method and height. Supports the rail and positions in approximately 1" off the wall.

Finish:
BZ Bronze
SC Satin Nickel



LBL RAILADAP-WALL Wall Monorail Element Adapter

RAILADAP-WALL WMRL/Monorail Chn Element Adapt

One adapter is required for each swivel head.

Finish:
BZ Bronze
SC Satin Nickel

Monorail Remote Transformers

LBL Monorail Remote Transformers

All Remote Transformers are encased in metal housings complete with mounting feet and conduit knockouts. Typically, you use a remote transformer when a cleaner installation appearance is desired. A remote transformer must be installed in an accessible remote location, the bulkier ceiling mounted surface transformer is replaced by a power feed canopy with flexible coaxial power feed cable or direct-feed connector.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
  Watt & Type Model Input Output Compatible Dimmer
12 volt/60W Remote AC
Electronic Single-Feed
TRANS-RMTE-60 1x120VAC/.5A 1x60W** Electronic Low-voltage
Dimmer, 600W
12 volt/150W Remote DC
Electronic Single-Feed
TRANS-RMTE-150 1x120VAC/1.25A 1x150W Electronic Low-voltage
Dimmer, 600W
12 volt/150W Remote DC
Electronic Single-Feed
TRANS-RMTE-152 1x120VAC/1.25A 1x150W** Electronic Low-voltage
Dimmer, 600W
12 volt/300W Remote DC
Electronic Single-Feed
TRANS-RMTE-301 1x120VAC/2.5A 1x300W Electronic Low-voltage
Dimmer, 600W
12 volt/300W Remote DC
Electronic Single-Feed
TRANS-RMTE-302 1x120VAC/2.5A 1x300W** Electronic Low-voltage
Dimmer, 600W
12 volt/75W Remote
Magnetic Single-Feed
TRANS-RMTE-75M 1x120VAC/.7A 1x75W** Magnetic Low-voltage
Dimmer, 600W
12 volt/75W Remote
Magnetic Single-Feed
TRANS-RMTE-75M/277 1x277VAC/.3A 1x75W** Magnetic Low-voltage
Dimmer, 600W
12 volt/150W Remote
Magnetic Single-Feed
TRANS-RMTE-150M 1x120VAC/1.25A 1x150W** Magnetic Low-voltage
Dimmer, 600W
12 volt/150W Remote
Magnetic Single-Feed
TRANS-RMTE-150M/277 1x277VAC/.55A 1x150W** Magnetic Low-voltage
Dimmer, 600W
12 volt/300W Remote
Magnetic Single-Feed
TRANS-RMTE-300M 1x120VAC/2.5A 1x300W** Magnetic Low-voltage
Dimmer, 600W
12 volt/300W Remote
Magnetic Single-Feed
TRANS-RMTE-300M/277 1x277VAC/1.1A 1x300W** Magnetic Low-voltage
Dimmer, 600W
24 volt/300W Remote
Magnetic Single-Feed
TRANS-RMTE-300M/24 1x120VAC/2.5A 1x300W Magnetic Low-voltage
Dimmer, 600W
24 volt/300W Remote
Magnetic Single-Feed
TRANS-RMTE-300M/24V77 1x277VAC/1.1A 1x300W Magnetic Low-voltage
Dimmer, 600W
12 volt/600W Remote
Magnetic Dual-Feed
TRANS-RMTE-600M 1x120VAC/5A 2x300W** Magnetic Low-voltage
Dimmer, 1000W
12 volt/600W Remote
Magnetic Dual-Feed
TRANS-RMTE-600M/277 1x277VAC/2.2A 2x300W** Magnetic Low-voltage
Dimmer, 1000W
24 volt/600W Remote
Magnetic Single-Feed
TRANS-RMTE-600M/24 1x120VAC/5A 1x600W Magnetic Low-voltage
Dimmer, 1000W
24 volt/600W Remote
Magnetic Single-Feed
TRANS-RMTE-600M/24V77 1x277VAC/2.2A 1x600W Magnetic Low-voltage
Dimmer, 1000W

Marked LED
These transformers are compatible with LED Heads and Pendants.

How to Calculate your Wattage Needs

2.75" and 4" remote canopies are available for ceiling and wall remote transformer applications.
To find which is right for your system, add up the total wattage of the pendants or heads you'll be using (the number of pendants or heads x the total lamp wattage per fixture = total wattage). A combination of wattages may be chosen as long as the maximum wattage allowed by the transformer is not exceeded.
** As a general rule when using LED fixtures we do not recommend using greater than 70% of the specified maximum wattage on the transformer due to inrush current.

Monorail Pendants and Fixtures

LBL Soft Curve Rail Kit (FUSIONKIT8CV) shown with four Vision Chandelier Head monorail fixtures in Amber (HS336CR1A35MRL) and one Vision LBL Monorail Pendant (HS336CR1A35MRL).

LBL Monorail with Vision Rail Heads & Pendant

To order this Installation: as shown:
(4) HA336AM011A35MRL
(1) HS336CR1A35MRL
(1) FUSIONKIT8CV

Color options: Amber or Clear
Finish Options: Satin Nickel or Bronze


Curved Satin Nickel Monorail with pendants and heads, rigid suspension


Kitchen with straight monorail.
LBL BJ-ADJ Ball Joint allows monorail to attach to sloped ceiling.

Curved Bronze Monorail with Mini Dome Swivel I Track Heads in amber, cable suspension.


Adjustable Angle Conductive Connector makes the angle.

TRANSDIR-SFE60 Direct Feed Surface Mounted Transformers on Straight Monorail


Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
