Tech Lighting Element 3" Halogen/CMH Recessed Downlights

Tech Lighting ELEMENT 3" Series Recessed Downlights

It's all about control. The ability to maintain precise control over your space even in the most demanding architectural environment. The ELEMENT line of 3" recessed adjustable, remodel and wall wash downlights offer an elegant flexible solution for a wide array of applications.

Example Prices
Let us know how many and what features and we will give you the best price.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Housing
E3RLW-HIR	Element 3" Round Flangeless Wall Wash Halogen MR16 IC Airtight for Remote Transformer
E3SRF-C20AN	Element 3" Square Remodel 20 Watt CMH MR16, Adjustable, Non-IC, includes CMH Ballast
Trims
E3RFB-OB	Element 3" Round Flanged Beveled, no lens, Black
E3SRF-OW	Element 3" Square Remodel Flat, no lens, White
E3SRLF-OW	Element 3" Round Flangeless Flat, no lens, White
E3SF20B-LS	Element 3" Square Flanged for 1.6" to 2" ceiling thickness, Beveled, Lensed, Satin Nickel
E3SFF-HZ	Element 3" Square Flanged, Flat, Shower, Satin Nickel
E3RLW-Z	Element 3" Round Flangeless Wall Wash, Antique Bronze

Tech Lighting ELEMENT 3" Square and Round Halogen/CMH Fixed Downlight

Small aperture recessed straight downlight with architectural appearance and optimized lamp positioning. Utilizes the same trims as the low-profile 3" housing so it can be used in applications where varying housing depths are required while maintaining a uniform below the ceiling appearance. Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

Square & Round Trims for Fixed ELEMENT Downlights >
3" Housings for Fixed ELEMENT Downlights >

LAMPING & OPTICS

Low-voltage Halogen MR16 (75W max in Non-IC, 50W max in IC housing)
CMH MR16 (20W or 39W Non-IC only)
Glare reducing snoot
Accepts three optical controls and an optional trim mounted lens
Lamps and optical controls ordered separately

POWER/POWER SUPPLY

Halogen ships with 75 watt 120 Volt electronic or magnetic transformer per specification
Remote transformer available (ordered separately)
CMH ships with electronic CMH ballast
To specify 277 Volt, add -277 to end of the housing item number
Power supplies can be accessed through the aperture

TRIMS

Die cast aluminum with minimal thickness
Lensed and shower aperture includes Solite™ soft focus lens at aperture
White can be field painted to match adjacent finishes
Accommodates up to 2.5" ceiling thickness, depending on trim

HOUSING

Non-IC: 11.5" x 17.5" x 6", IC: 11.5" x 17.5" x 6"
Constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
3-7/8" ceiling opening
Airtight and available in IC, Non-IC or Chicago Plenum
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.

INSTALLATION

Includes adjustable hanger bars. Includes butterfly brackets that attach to the side of the housing and are vertically adjustable with a wing nut.
Incorporates integral gunsights for positioning with laser levels or string

1 Year Warranty

Unique High-Low Lamp Positioning
Innovative high-low functionality allows designers the choice of lamp placement in low position for maximum light output or high position to reduce glare and flash on the trims

0° – 40° Hot Aiming
Tilt mechanism allows for tool-free 0° – 40° hot-aiming with lockable positioning. Center beam maintaining through tilt to maximize light output.

Tool-Free Locking 361° Pan Rotation
Easy to use cam lever for rotation lock (shown in the locked position). Moving rotation stop allows for up to 361° rotation without any dead spots.

Tech Lighting ELEMENT 3" Square and Round Halogen/CMH Adjustable Downlight

Small aperture recessed downlight fully adjustable with ELEMENT's unique patented high-low lamp positioning The innovative design allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Additional adjustability allows for tool-free hot aiming including 0°- 40° tilt and 361° rotation to eliminate dead spots. All aiming functions are lockable. Also available as a fixed downlight.

U.S. Patent No. D682,456

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

Square & Round Trims for Adjustable ELEMENT >
3" Housings for Adjustable ELEMENT Downlights >

LAMPING & OPTICS

Low-voltage Halogen MR16 (75W max in Non-IC, 50W max in IC housing)
CMH MR16 (20W or 39W Non-IC only)
Glare reducing snoot
Accepts three optical controls and an optional trim mounted lens
Lamps and optical controls ordered separately

POWER/POWER SUPPLY

Halogen ships with 75 watt 120 Volt electronic or magnetic transformer per specification
Remote transformer available (ordered separately)
CMH ships with electronic CMH ballast
To specify 277 Volt, add -277 to end of the housing item number
Power supplies can be accessed through the aperture

Also available Low-Profile Adjustable

Captive Two Lens System
Up to 2 optical controls lock in place to ensure constant aiming
with asymmetric lenses. Glare-reducing snoot.

TRIMS

Die cast aluminum with minimal thickness
Lensed and shower aperture includes Solite™ soft focus lens at aperture
White can be field painted to match adjacent finishes
Accommodates up to 2.5" ceiling thickness, depending on trim

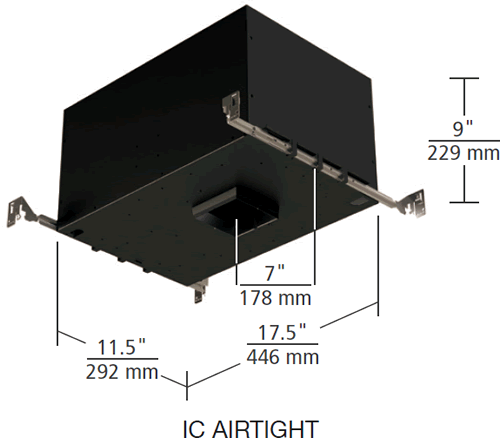

HOUSING

Non-IC: 11.5" x 17.5" x 6", IC: 11.5" x 17.5" x 9"
Constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
3-7/8" ceiling opening
Airtight and available in IC, Non-IC or Chicago Plenum
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.

INSTALLATION

Includes adjustable hanger bars. Includes butterfly brackets that attach to the side of the housing and are vertically adjustable with a wing nut.
Incorporates integral gunsights for positioning with laser levels or string

1 Year Warranty

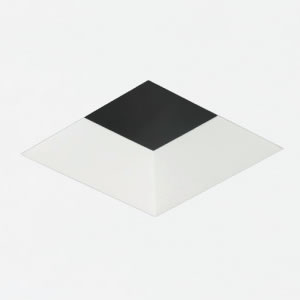

Square or Round LED Low-Profile Fixed

Tech Lighting ELEMENT 3" Square and Round Halogen/CMH Low-Profile Fixed Recessed

Small aperture downlight with architectural appearance. 4" height for shallow ceiling installations. Utilizes the same trims as the standard 3" housing so it can be used in the same application only where a shallower housing is required.

Square & Round Trims for Low-Profile ELEMENT Downlights >
3" Housings for ELEMENT 3" Low-Profile Downlights >

LAMPING & OPTICS

Low-voltage Halogen MR16 (50W max)
Accepts two optical controls in addition to one trim mounted lens
Lamps and optical controls ordered separately

POWER/POWER SUPPLY

Ships with 75 watt 120 Volt electronic or magnetic transformer per specification
Remote transformer available (ordered separately)
To specify 277 Volt, add -277 to end of the housing item number
Power supplies can be accessed through the aperture

TRIMS

Die cast aluminum with minimal thickness
Lensed and shower aperture includes Solite™ soft focus lens at aperture
White can be field painted to match
adjacent finishes
Accommodates up to 2.5" ceiling thickness, depending on trim

HOUSING

Non-IC: 11.5" x 17.5" x 4"
Constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
3-7/8" ceiling opening
Airtight Non-IC
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.

INSTALLATION

Includes adjustable hanger bars. Includes butterfly brackets that attach to the side of the housing and are vertically adjustable with a wing nut.
Incorporates integral gunsights for positioning with laser levels or string

1 Year Warranty

Square or Round LED Low-Profile Adjustable

Tech Lighting ELEMENT 3" Square and Round LED Low-Profile Adjustable Recessed

The ELEMENT 3" series small aperture, low-profile adjustable downlight provides a unique architectural appearance for even shallow ceiling plenum installations. Designed with a shallow 4" housing while utilizing the same trim pieces as the rest of the ELEMENT 3" series, the presence of the Low-Profile version is completely undetectable from below the ceiling. This makes it ideal for space constrained environments such as elevators and healthcare soffits. Complete adjustability allows for lockable hot aiming including 0°-35° tilt and 361° rotation, eliminating deadspots.

Square & Round Trims for Low-Profile ELEMENT Downlights >
3" Housings for ELEMENT 3" Low-Profile Downlights >

LAMPING & OPTICS

Low-voltage Halogen MR16 (50W max)
Accepts two optical controls in addition to one trim mounted lens
Lamps and optical controls ordered separately

POWER/POWER SUPPLY

Ships with 75 watt 120 Volt electronic or magnetic transformer per specification
Remote transformer available (ordered separately)
To specify 277 Volt, add -277 to end of the housing item number
Power supplies can be accessed through the aperture

TRIMS

Die cast aluminum with minimal thickness
Lensed and shower aperture includes Solite™ soft focus lens at aperture
White can be field painted to match adjacent finishes
Accommodates up to 2.5" ceiling thickness, depending on trim

HOUSING

Non-IC: 11.5" x 17.5" x 4"
Constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
3-7/8" ceiling opening
Airtight Non-IC
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.

INSTALLATION

Includes adjustable hanger bars. Includes butterfly brackets that attach to the side of the housing and are vertically adjustable with a wing nut.
Incorporates integral gunsights for positioning with laser levels or string

1 Year Warranty

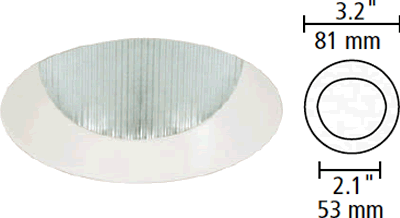

Square or Round LED Wall Wash

Tech Lighting ELEMENT 3" Square and Round Halogen/CMH Wall Wash Recessed

Small aperture wall wash with architectural appearance. Lamp is trim mounted for optimal light output. Trim angled with frosted linear spread lens which creates consistent and even horizontal and vertical illumination.

Square and Round Trims for ELEMENT Wall Wash Downlights >
3" Housings for ELEMENT 3" Wall Wash Downlights >

LAMPING & OPTICS

Lamp is trim mounted
Trim is angled with frosted linear spread lens which creates consistent and even horizontal and vertical illumination
Low-voltage Halogen MR16
(75W max in Non-IC, 50W max in IC housing)
CMH MR16 (20W or 39W max in non-IC only)

POWER/POWER SUPPLY

Halogen ships with 75 watt 120 Volt electronic or magnetic transformer per specification
Remote transformer available (ordered separately)
CMH ships with electronic CMH ballast
To specify 277 Volt, add -277 to end of the housing item number
Power supplies can be accessed through the aperture

TRIMS

Die cast aluminum with minimal thickness
White can be field painted to match adjacent finishes
Accommodates up to 1" ceiling thickness

HOUSING

Non-IC: 11.5" x 17.5" x 6", IC: 11.5" x 17.5" x 9"
Constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
3-7/8" ceiling opening
Airtight and available in IC, Non-IC or Chicago Plenum
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.

INSTALLATION

Includes adjustable hanger bars. Includes butterfly brackets that attach to the side of the housing and are vertically adjustable with a wing nut.
Incorporates integral gunsights for positioning with laser levels or string

1 Year Warranty

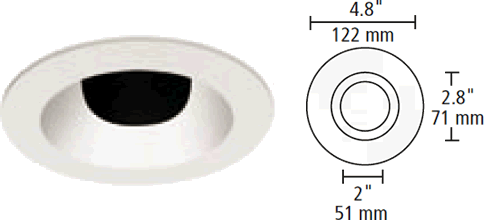

Tech Lighting ELEMENT 3" Square and Round Halogen/CMH Remodel Adjustable Recessed

Halogen or CMH MR16 remodel downlight with architectural appearance. 0°- 35° tilt and 353° internal rotation, includes hot aiming and locking.

Square and Round Trims for Low-Profile ELEMENT Downlights >
3" Housings for ELEMENT 3" Low-Profile Downlights >

LAMPING & OPTICS

Low-voltage Halogen MR16 (50W max)
CMH MR16 (20W or 39W)
Glare reducing snoot
Accepts one optical controls in addition to one trim mounted lens
Lamps and optical controls ordered separately

POWER/POWER SUPPLY

Halogen ships with 75 Watt 120 Volt electronic or magnetic transformer per specification
CMH ships with electronic CMH ballast
To specify 277 Volt, add -277 to end of the housing item number

TRIMS

Die cast aluminum with minimal thickness
Lensed and shower aperture includes Solite™ soft focus lens at aperture
White can be field painted to match adjacent finishes
Accommodates .5" to 2" ceiling thickness
Slightly larger than new construction trims

HOUSING

Non-IC: dia 4.1" x 6"
Universal housing constructed of heavy gauge cold rolled steel with durable matte black powder coat finish
Fits easily within a 4.25" ceiling opening
Includes integral junction box approved for branch circuit through wiring
ETL listed. Damp listed. Shower version wet listed.
Universal housing accepts both round and square trims

INSTALLATION

Use standard 4-1/4" hole saw
After inserting housing, brackets are driven by screw for maximum clamping force to provide robust mounting to ceiling

1 Year Warranty


0° tilt	35° tilt

0°- 35° tilt and 353° internal rotation


Screw driven swing arm	Swing arm mounting
