Recessed Downlighting

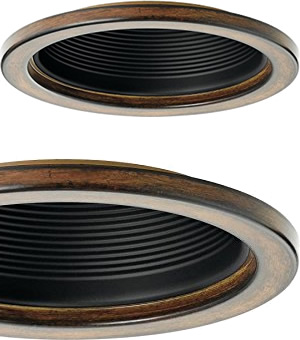

Kichler 30504 Barrington 6" Recessed Lighting Trim

Finish: Anvil Iron

Width 7.64" x Height .39"

  • Raised trim with aged wood finish and black baffle, from the Barrington collection
  • Pairs beautifully with other pieces from the Barrington collection
  • Add sophistication to your recessed lights with this raised trim
  • Trim ring has baffles to reduce the glare from the recessed light fixture

Kichler's Barrington Indoor Collection features distressed black metal and faux wood that will compliment your homes overall appeal. With a vintage-style bulb inside of clear seeded glass, it's sure to bring you the nostalgic touch you're looking for. The Barrington Collection is the perfect choice for an Arts & Crafts style home and works seamlessly with a traditional or even an urban industrial interior.

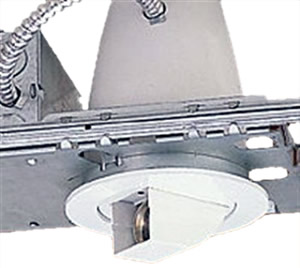

Nora NL-471W Recessed Low Voltage Framing Projector

An innovative concept in recessed projection lighting! A recessed framing and gobo projector that fits into a standard 4" housing.

Low Profile: Nora's projector optics are positioned into a streamlined scoop that protrudes no more than 1-3/8" below the ceiling, while a faceplate completely conceals the inside of projector and housing.

Superior Optics: Nora's NL-471W is the only projector in its class that uses genuine optical grade ground elements rather than standard glass. Also, the position of the light source itself is precision set so the exact focal point of the lamp intersects first lens so almost no light output is lost or captured within the lens. Additionally, the quality of the lenses and their position with the adjustable scoop virtually eliminates all glare outside the direct path of the actual beam.

High Performance Energy Savings: The NL-471W's patented optics actually result in a noticeably higher level of illumination and more uniform beam than similar projectors using 75W light sources - more light with less than half the energy.

Easy Use: Unlike other miniature projectors, there are no plates requiring precision framing cutouts. The NL-471W has four independent framing shutters that allow precision framing to any rectangular object that can be permanently locked so that the light source can be changed without having to reset the shutters. The shutters are set by lowering the projector, then adjusting the scoop angle after the unit is reinserted into the recessed housing.

Flexibility: The NL-471W can be installed anywhere a standard 4" is used. Nora offers standard non-IC, remodel non-IC and IC airtight units that can be used with the NL-471W.

Design Friendly: The NL-471 can be used to create virtually any effect. When placed within 4' to 9' of any artwork or surface, the strong illumination will give artwork or gobo images a high contrast to the surrounding environment. For a subtler effect in simply bringing sparkle to artwork that would normally lose its life under standard ambient illumination, the projector may be dimmed with an approved magnetic low voltage rated dimmer - or the fixture may be placed as far as 21' away from the object to draw the user's complete attention to the artwork rather than the projector itself.
Also: 1mm dichroic filters may be placed in front of the light source to create unique color themes - consult factory for details.

Gobo Projection: A gobo holding frame is included with all units and can be installed by removing the framing shutter assembly. Consult factory for details on custom gobo images

Includes Housing Choice: NL-401/RFP - 12V Standard 35W MR11 Housing for NL-471W
NLR-404/RFP - 12V Remodel 35W MR11 Housing for NL-471W
NLIC-401SAT/RFP - 12V IC Rated Air-Tight 35W MR11 Housing for NL-471W

Lamp: 35W MR11FTH (not included)

Listing: UL Listed

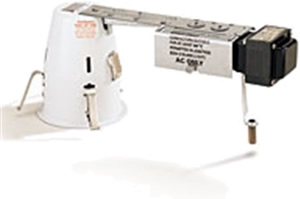

Nora NLR-404/RFP 4-in Miniature Low Voltage Remodel Housing for Recessed Framing Projector

For use only with NL-471W RECESSED FRAMING PROJECTOR

Transformer: 12V 35 watt output. For electronic transformer add suffix /1EL for 120V or /2EL for 277V

Minimum Clearances: Non-IC housings require minimum clearances of 3" from thermal insulation and 1/2" from adjacent building components

Ceiling Thickness: Ceiling thickness varies from 3/8" – 1-3/8"

Lamp Adjustment: Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment.

Dimming: Use only magnetic low voltage dimming control with magnetic ballast and electronic low voltage dimming control with electronic ballast

Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience.

Junction Box: Contains two 3/4", three 1/2" knockouts and four ROMEX® pryouts with strain relief

Electrical: Standard Wire Nuts (not included)

Listing: UL Damp Location w/ Feed Through

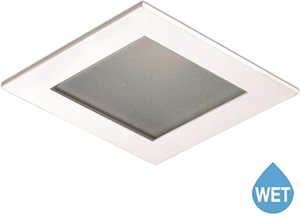

Nora NL-4584 4" Square Frosted Flat Lens with Reflector Trim

NL-4584 4" Square Frosted Flat Lens with Reflector Trim Listed for Wet Location

The Q4 series lens reflector feature architectural design quality. Die-cast aluminum flange and lamp holder. Double axis lamp adjustability allowing flexible aiming. The lamp ring will accommodate 2 lenses.

Finishes: Black (B), Bronze (BZ), Natural Metal (N), White (W)

Lamp Types: Halogen: 20W-50W 12V MR16

Dimensions: Length: 4" x Width: 4" x Height: 2"

Listing: cULus Listed for Wet Location

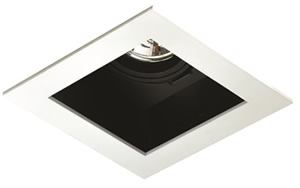

Nora NL-4585 4" Square Recessed Adjustable with Reflector Trim

NL-4585 4" Square Recessed Adjustable with Reflector Trim

The die-cast aluminum 4" Square Recessed Adjustable trim with Reflector featured front relamping, 3" aperture, and double axis lamp adjustability allowing flexible aiming. The lamp ring will accommodate 2 lenses.

Lamp Types: Halogen: 20W-50W 12V MR16

Dimensions: Length: 4" x Width: 4" x Height: 2"

Listing: cULus Listed

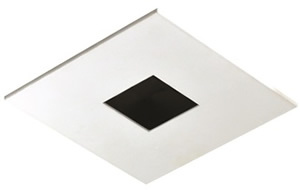

Nora NL-4588 4" Square 1.5" Pinhole with Reflector Trim

NL-4588 4" Square 1.5" Pinhole with Reflector Trim

4" Square 1.5" pinhole trim with reflector featured hot aiming adjustable screw and include snoot for precision optical control. Die-cast aluminum flange and lamp holder. Double axis lamp adjustability allowing flexible aiming. The lamp ring will accommodate 2 lenses.

Finishes: Black (B), Bronze (BZ), Natural Metal (N), White (W)

Lamp Types: Halogen: 20W-50W 12V MR16

Dimensions: Length: 4" x Width: 4" x Height: 2"

Listing: cULus Listed

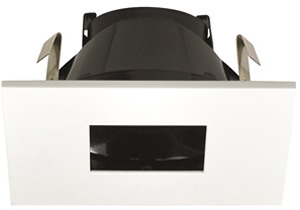

Nora NL-4855 4" Square with 2" Square Pinhole, Adjustable Reflector for Round housings

NL-4855 4" Square with 2" Square Pinhole, Adjustable Reflector for Round housings

4" die cast aluminum flage provides sharp clean corners. Non-reflective painted finishes and square trim. Gimbal ring allows lamp to be mounted on top of the trim and adjustable up to 35º.

Width/Length: 5" x Height: 3-18" x Aperture: 2"

Mounting: Trim includes three trim clips that securely mount trim in housing.

Compatible Housings: Compatible with Line Voltage and Low Voltage housings.

Lamp:
Line Voltage
50W 120V MR16 GU10 Max. (NSL-401AT/10; NSLIC-401AT/10; NSLR-404AT/10)
Low Voltage
20W-75W 12V MR16 (NL-401 Series; NLIC-401 Series; NLR-404 Series; NLR-405 Series)

Labels and Listings: cULus Listed for Damp Location when used with compatible housing.

Available Finishes:
NL-4855BB: 4" Square 2" Pinhole, Black Adjustable Reflector with Black Square Trim
NL-4855BW: 4" Square 2" Pinhole, Black Adjustable Reflector with White Square Trim
NL-4855BBZ: 4" Square 2" Pinhole, Black Adjustable Reflector with Bronze Square Trim
NL-4855BN: 4" Square 2" Pinhole, Black Adjustable Reflector with Natural Metal Square Trim
NL-4855WW: 4" Square 2" Pinhole, White Adjustable Reflector with White Square Trim

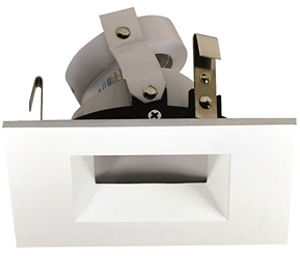

Nora NL-4857 4" Square Regressed, Adjustable Reflector for Round housings

NL-4857 4" Square Regressed, Adjustable Reflector for Round housings

4" die cast aluminum flage provides sharp clean corners. Non-reflective painted finishes and square trim. Gimbal ring allows lamp to be mounted on top of the trim and adjustable up to 35º.

Width/Length: 5" x Heighte: 3-18" x Aperture: 2"

Mounting: Trim includes three trim clips that securely mount trim in housing.

Compatible Housings: Compatible with Line Voltage and Low Voltage housings.

Lamp
Line Voltage
50W 120V MR16 GU10 Max. (NSL-401AT/10; NSLIC-401AT/10; NSLR-404AT/10)
Low Voltage
20W-75W 12V MR16 (NL-401 Series; NLIC-401 Series; NLR-404 Series; NLR-405 Series)

Labels and Listings: cULus Listed for Damp Location when used with compatible housing.

Available Finishes:
NL-4857BB: 4" Square Regressed Adjustable, Black Reflector, Black Trim
NL-4857BBW: 4" Square Regressed Adjustable, Black Reflector, Black Regressed and White Trim
NL-4857BWW: 4" Square Regressed Adjustable, Black Reflector and White Trim
NL-4857BZBZ: 4" Square Regressed Adjustable, Bronze Reflector, Bronze Trim
NL-4857NN: 4" Square Regressed Adjustable, Natural Metal Reflector, Natural Metal Trim
NL-4857WW: 4" Square Regressed Adjustable, White Reflector and White Trim

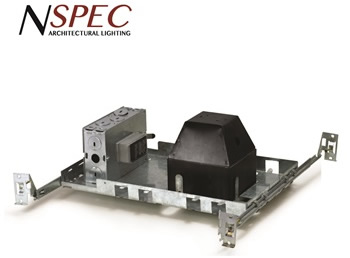

Nora NL-408AT 4" Square Low Voltage New Construction Magnetic Housing

NL-408AT 4" Square Low Voltage New Construction Magnetic Housing

The Q4 series is designed for architectural and commercial applications. The reflectors feature aluminum die-cast construction with deep set lamp holders providing excellent visual comfort. The Q4 die-cast aluminum lamp holders help dissipate heat for longer life and can accommodate 2 filters. The Q4 series available with Electronic or Magnetic transformer.

Lamp Types: Halogen: 20W-50W 12V MR16

Firebox: NRA-126: Nora Lighting's Fire Rated Recessed Light Enclosure allows architects, specifiers and installers to easily maintain the integrity of fire rated ceilings for one-hour. One Hour Fire Rated Enclosure

Dimensions: Length: 12.5" x Width: 8" x Height: 5"
Ceiling Opening: 4"

Listing: cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements

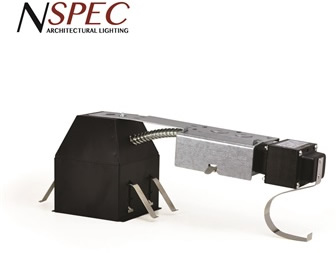

Nora NLR-409AT 4" Square Low Voltage Remodel Magnetic Housing

NLR-409AT 4" Square Low Voltage Remodel Magnetic Housing

The Q4 series is designed for architectural and commercial applications. The reflectors feature aluminum die-cast construction with deep set lamp holders providing excellent visual comfort. The Q4 die-cast aluminum lamp holders help dissipate heat for longer life and can accommodate 2 filters. The Q4 series available with Electronic or Magnetic transformer.

Lamp Types: Halogen: 20W-50W 12V MR16

Dimensions: Length: 14.5" x Width: 4" x Height: 5-1/4"
Ceiling Opening: 4"

Listing: cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
