Leucos Recessed Collections

The Leucos Recessed and Semi-recessed, low-voltage fixtures; Gep, Day, Devon 2, Disk, Drop, Igea, Iside, Ony, Polar, Sun, Van, Van 2. Provides diffused illumination as well as a soft pleasant ceiling glow. Available in Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine, Clear Crystal and Mirrored Chrome finishes. Select housings that use Fluorescent, halogen, metal halide or LEDs. Many are rated for Damp or Wet Location.

Leucos Gep Recessed Light
Designed by Roberto Pamio

Semi-recessed fixture available in crystal glass or clear crystal with 24K gold trimmed glass.

277 / 12 volt also available.

Housing & Lamp Options

Remodel, New Construction and Insulated Ceiling:
1x75 watt, incandescent A-19
1x50 watt, halogen PAR 20
or 1x35 watt, PAR 20 metal halide

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight. Also available with LED , consult factory.

Glass Color: Crystal glass or clear crystal with 24K gold trimmed glass

Leucos GEP Recessed Light with Clear Crystal glass


Leucos Gep Recessed Light with Clear Crystal glass with 24K gold trimmed trim

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Gep Recessed Light
Color Structure A19 TYPE R PAR20S
Crystal Remodel Housing 1x75 1x50
Crystal Standard Housing 1x75 1x50
Crystal I.C. Housing 1x75 1x50
Crystal with Gold trim Remodel Housing 1x75 1x50
Crystal with Gold trim Standard Housing 1x75 1x50
Crystal with Gold trim I.C. Housing 1x75 1x50

Leucos Day Wet Location Recessed Light
Designed by R. Toso, N. Massari & Associati

A semi-recessed, low-voltage fixture providing downward light through a poured glass diffuser available in crystal or satin white glass with a clear tip. Provides diffused illumination as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction and IC housings. Remodel housings are also available. 277 / 12 Volt housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing Options:
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Crystal, Satin White

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

Wet Location Rated

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Day Recessed Light
Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal or
White with Crystal Center
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Devon 2 Recessed Lights
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine, Clear Crystal, Mirrored Chrome

Leucos Devon 2 Recessed Light with White glass trim

Leucos Devon 2 Recessed Light
Designed by R. Toso, N. Massari & Associati

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the hand-molded Murano glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction housing only. Remodel and IC housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing Options:
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine. New added options in crystal and mirrored chrome finishes

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.



Leucos Devon 2 Recessed Light with Crystal trim

Leucos Devon 2 Recessed Light above with Mirrored Chrome trim

This chart is better viewed on a desktop computer or by turning your screen horizontal.
Leucos Devon 2 Recessed Light
Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White
Crystal
Rose
Aquamarine
Pale Blue
Cobalt Blue
Jade Green or
Mirrored Chrome
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Disk Recessed Light
Designed by R. Toso, N. Massari & Associati

Bands or small disks of glass trim appear to float from the ceiling on this semi-recessed, low voltage downlight. Excellent illumination is provided from the light source provided and the trims are available in clear crystal or satin white, frosted glass.

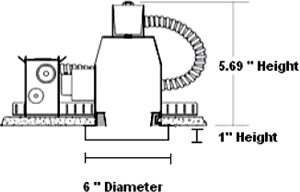

Fully recessed housing equipped with thermal protection, magnetic transformer (with halogen lamp option) or electronic transformer (with Fluorescent lamp option) and junction box. Suitable for Installation: in most types of modular ceilings and new construction. Mounting bars are provided with new construction and IC housings. Remodel housings are also available.

277 / 12 volt also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing Options:
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Crystal, Satin White.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
This chart is better viewed on a desktop computer or by turning your screen horizontal.
Leucos Disk Recessed Light
Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White or
Crystal with Satin White Center
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Above: Leucos Drop Wet Location Recessed Light with Crystal Trim with Frosted Tip – (code C/B)
Below: Leucos Drop Wet Location Recessed Light with Frosted Trim with Crystal Tip – (code B/C)

Leucos Drop Wet Location Recessed Light
Designed by R. Toso, N. Massari & Associati

A semi-recessed, low-voltage fixture providing downward light through a poured glass diffuser available in clear or satin glass trim. Provides diffused illumination as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer (with halogen lamp option) or electronic transformer (with Fluorescent lamp option) and junction box. Suitable for Installation: in most types of modular ceilings and new construction. Mounting bars are provided with new construction and IC housings. Remodel housings are also available.

277 / 12 volt also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing: 13W CFL. New Construction and Insulated Ceiling: 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color:
Crystal Trim with Frosted Tip – (code C/B)
Frosted Trim with Crystal Tip – (code B/C)

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp

This chart is better viewed on a desktop computer or by turning your screen horizontal.
This chart is better viewed on a desktop computer or by turning your screen horizontal.
Leucos Drop Wet Location Recessed Light
Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal with Satin White Tip or
Satin White with Crystal Tip
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Igea 2 Recessed Lights
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine, Clear Crystal

Leucos Igea 2 Recessed Light
Designed by Roberto Pamio

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the hand-molded Murano glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction housing only. Remodel and IC housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing: 13W CFL. New Construction and Insulated Ceiling: 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color:
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine. New added option in Crystal

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp

Above: Leucos Igea 2 Recessed Light in White
Below: Leucos Igea 2 Recessed Light in Crystal

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Igea 2 Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White or
Crystal or
Rose or
Aquamarine or
Pale Blue or
Cobalt Blue or
Jade Green or
Mirrored Chrome
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Igea 2 Recessed Lights
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine, Clear Crystal, Mirrored Chrome

Leucos Iside 2 Recessed Light
Designed by Roberto Pamio

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the hand-molded Murano glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction housing only. Remodel and IC housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing: 13W CFL. New Construction and Insulated Ceiling: 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color:
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine. New added options in Crystal and Mirrored Chrome finishes.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp


Leucos Igea 2 Recessed Light in Crystal Clear

Leucos Igea 2 Recessed Light in Mirrored Chrome

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Iside 2 Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White or
Crystal or
Satin Pink or
Aquamarine or
Pale Blue or
Cobalt Blue or
Jade Green or
Mirrored Chrome
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Mira 2 Recessed Lights
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine, Clear Crystal, Mirrored Chrome

Leucos Mira 2 Recessed Light
Designed by Roberto Pamio

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the hand-molded Murano glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction housing only. Remodel and IC housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color:
Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine. New added options in Crystal and Mirrored Chrome finishes.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

Leucos Mira 2 Recessed Light in White

This chart is better viewed on a desktop computer or by turning your screen horizontal.
This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Mira 2 Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White or
Crystal or
Satin Pink or
Aquamarine or
Pale Blue or
Cobalt Blue or
Jade Green or
Mirrored Chrome
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Ony Recessed Light
Designed by R. Toso, N. Massari & Associati

Semi-recessed, low voltage design highlighted by a thick, hand poured glass diffuser that provides downlight and a decorative element at the ceiling line. The glass trim is available in frosted satin white or clear glass with a frosted center. Provides diffused illumination as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer (with halogen lamp option) or electronic transformer (with Fluorescent lamp option) and junction box. Suitable for Installation: in most types of modular ceilings and new construction. Mounting bars are provided with new construction and IC housings. Remodel housings are also available.

277 / 12 volt also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing Options:
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Clear Crystal, Satin White.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Ony Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal with Satin White Center or
Satin White
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Polar Recessed Light
Designed by R. Toso, N. Massari & Associati

A semi-recessed, low-voltage fixture providing downward light through a poured glass diffuser available in clear or satin glass trim. Provides diffused illumination as well as a soft pleasant ceiling glow.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Crystal with Satin White, Crystal.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Polar Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal with Satin White Center or
Satin White
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

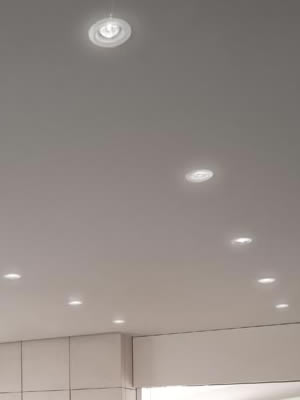

Leucos Sith (Hera 2 ) Recessed DownLight
Designed by Roberto Pamio

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Light Blue, White, Cobalt Blue, Rose, Jade Green, Aquamarine. New added options in crystal and mirrored chrome finishes.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.


This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Sun Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal or
White
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Sun Recessed Light
Designed by R. Toso, N. Massari & Associati

A semi-recessed, low-voltage fixture providing downward light through an acid-etched, poured glass diffuser available in a crystal or satin glass trim. Provides a narrow to wider beam spread depending on the lamp, as well as a soft pleasant glow.

Fully recessed housing equipped with thermal protection, magnetic transformer and junction box which houses the glass diffuser. Suitable for Installation: in all types of suspended modular ceilings and new construction. Mounting bars are provided with the new construction and IC housings. Remodel housings are also available.

277 / 12 Volt housings also available.

Housing & Lamp Options

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Clear Crystal, Satin White.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.
This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Sun Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Crystal or
White
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Van Recessed Light
Designed by Roberto Pamio

A semi-recessed fixture providing downward light through a translucent etched glass diffuser. Provides a narrow to wide beam spread (depending on lamp), as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection and junction box which houses the hand-molded Murano glass diffuser secured by a metal ring and screws (provided). Suitable for Installation: in all types of suspended modular ceilings and new construction. (Mounting bars provided with new construction housing only.) Remodel and IC housings also available.

Remodel, New Construction and Insulated Ceiling:
1x75 watt, incandescent A-19
1x50 watt, halogen PAR 20
or 1x35 watt, PAR 20 metal halide

Housing Options:
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight. Also available with LED , consult factory.

Glass Color: Clear Crystal, Satin White, Satin Blue, Satin Amethyst.

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Van Recessed Light

Color Structure A19 PAR20S
Satin White or
Crystal or
Amethyst or
Pale Blue
Remodel Housing 1x75 1x50
Standard Housing 1x75 1x50
I.C. Housing 1x75 1x50

Leucos Van 2 Recessed Light
Designed by Roberto Pamio

  • Aqua
  • Cobalt Blue
  • Jade Green
  • Nile Green
  • Pale Blue
  • Rose
  • Satin White

A small-scale, semi-recessed fixture providing downward light through an acid-etched, poured glass diffuser available in a wide range of colors. Provides a narrow to wider beam spread, depending on the lamp, as well as a soft pleasant ceiling glow.

Fully recessed housing equipped with thermal protection, magnetic transformer (with halogen lamp option) or electronic transformer (with Fluorescent lamp option) and junction box. Suitable for Installation: in most types of modular ceilings and new construction. Mounting bars are provided with new construction and IC housings. Remodel housings are also available.

277 / 12 volt also available.

Remodel & New Construction:
1x50 watt, low-voltage halogen, MR-16
Insulated Ceiling:
1x35 watt, low-voltage halogen, MR-16
Provided with 120/12V or 277/12V with magnetic transformer.

Housing options :
Remodel Housing, New Construction, Insulated Ceiling, Chicago Plenum, Air Tight, Vapor Tight.

Other lamp options:
Remodel Housing : 13W CFL. New Construction and Insulated Ceiling : 13W & 18W CFL.
Compatible with quad lamp, 4 Pin, electronic ballast 120/277 Volt only.
Further options:
1x50 watt, halogen PAR 20 or 1x35 watt, PAR 20 metal halide
Also available with LED , consult factory.

Glass Color: Clear Crystal, Satin White, Light Blue, Cobalt Blue, Rose, Jade Green, Aquamarine

U.L. listed/CSA approved for damp location. For U.L. compliance, use enclosed MR-16 lamp.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Leucos Van 2 Recessed Light

Color Structure MR 16 CFL PAR 20 CMH  LED
Satin White or
Crystal or
Rose or
Aquamarine or
Pale Blue or
Cobalt Blue or
Jade Green
Remodel Housing 1x50
Standard Housing 1x50
I.C. Housing 1x35
Remodel Housing 1x13
Standard Housing 1x13/18
I.C. Housing 1x13/18
Standard Housing 1x35
LED 26x1

Leucos Recessed Lighting Housings

New Construction Housing

  • Minimum ceiling thickness: 3/4"
  • Maximum ceiling thickness: 1. 1/4"
  • Housings compatible with most ceilings types including plaster, gypsum board, wood and suspended systems. 12" mounting bars provided.
  • Suspended ceiling - requires 2' x 2' o r 2' x 4' maximum panels. Installations in soft acoustical tile ceilings is not recommended.

Remodel Housing

  • Minimum ceiling thickness: 3/4"
  • Maximum ceiling thickness: 1. 1/4"
  • Housings compatible with most ceilings types including plaster, gypsum board, wood and suspended systems. 12" mounting bars provided.
  • Suspended ceiling - requires 2' x 2' o r 2' x 4' maximum panels. Installations in soft acoustical tile ceilings is not recommended.

Insulated Ceiling Box (I.C.)

  • Minimum ceiling thickness: 3/4"
  • Maximum ceiling thickness: 1. 1/4"
  • Housings compatible with most ceilings types including plaster, gypsum board, wood and suspended systems. 12" mounting bars provided.
  • Suspended ceiling - requires 2' x 2' o r 2' x 4' maximum panels. Installations in soft acoustical tile ceilings is not recommended.

See more choices on a desktop computer or by turning your screen horizontal.

Related Pages


design42 New Media Web Design
1804 Meadowbrook Terrace
Hendersonville NC 28791
